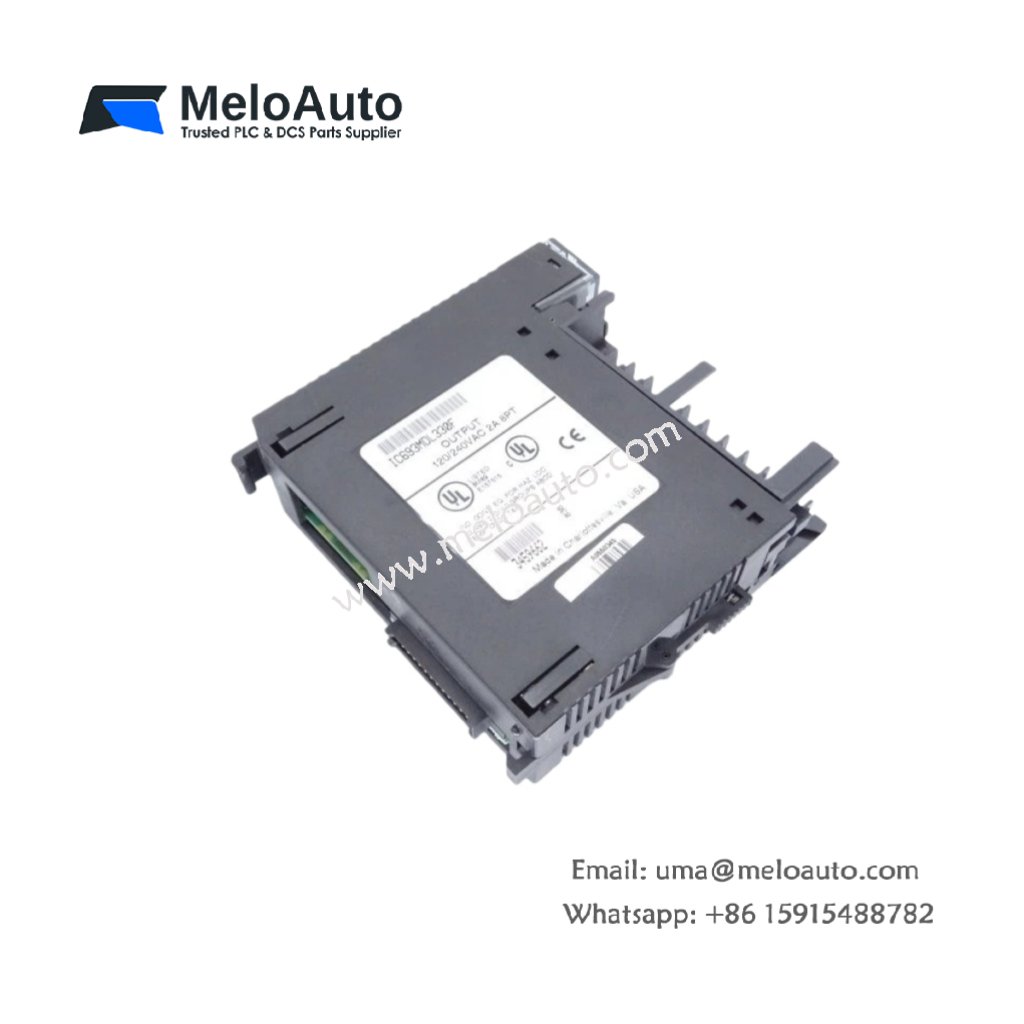

GE IC693MDL330 Output Module – 8 Output Points, 120-240V AC, Series 90-30

Product Description:

The GE IC693MDL330 output module is a versatile and high-performing component designed by GE Fanuc Emerson for the Series 90-30 product line. Operating within a voltage range of 120 to 240 V AC, this module provides exceptional output control and flexibility for industrial applications. It supports a maximum output current of 2 Amps per point, making it ideal for various output devices.

This output module features 8 output points, organized into 2 isolated groups of 4 outputs. Thanks to its 1500 V isolation between the field side and logic side, the GE IC693MDL330 ensures excellent protection against electrical surges, making it suitable for harsh industrial environments.

Furthermore, the GE IC693MDL330 offers a wide output voltage range from 85 to 264 V AC. This flexibility makes it adaptable to a variety of electrical systems and ensures consistent operation even under varying conditions. Each output can handle up to 1.5 V of output voltage drop, ensuring reliable performance with minimal signal loss.

The module also provides exceptional inrush current capability, handling up to 20 A per cycle. This feature is particularly beneficial for preventing damage to circuits during initial power-up. Additionally, it supports a minimum load current of 100 mA, which enhances the module’s versatility for various types of industrial loads.

Key Features:

• Wide Voltage Range: Operates within a 120-240 V AC voltage range for flexible integration.
• Eight Output Points: Provides 8 outputs, split into 2 isolated groups of 4, for enhanced system safety and control.
• Robust Isolation: The module offers 1500 V isolation between field and logic sides, ensuring reliable performance.
• High Inrush Current Handling: Capable of handling 20 A inrush current per cycle, protecting against electrical surges.
• Efficient Performance: Supports 2 A output current per point with a maximum voltage drop of 1.5 V.
• Versatile Load Handling: Suitable for various applications with a minimum load current of 100 mA.

Technical Specifications:

The GE IC693MDL330 Output Module delivers reliable and flexible output control for demanding industrial environments. Its wide voltage range and robust safety features make it a top choice for industries that require secure and efficient automation. Additionally, its high inrush current handling and efficient performance ensure long-term durability and consistent operation.

Why Choose the GE IC693MDL330 Output Module?

• Flexible Voltage Range: It supports a 120-240 V AC range, making it adaptable to different power sources.
• High Performance: With 8 outputs and 2 A current per point, the module offers reliable performance across various applications.
• Safety-First Design: The 1500 V isolation ensures that both the field side and logic side remain protected, increasing operational security.
• High Inrush Current Capability: With a 20 A inrush current, this module withstands power-up surges, enhancing reliability.
• Energy-Efficient: Operating with 100 mA minimum load current, it is suitable for both small and larger devices.
