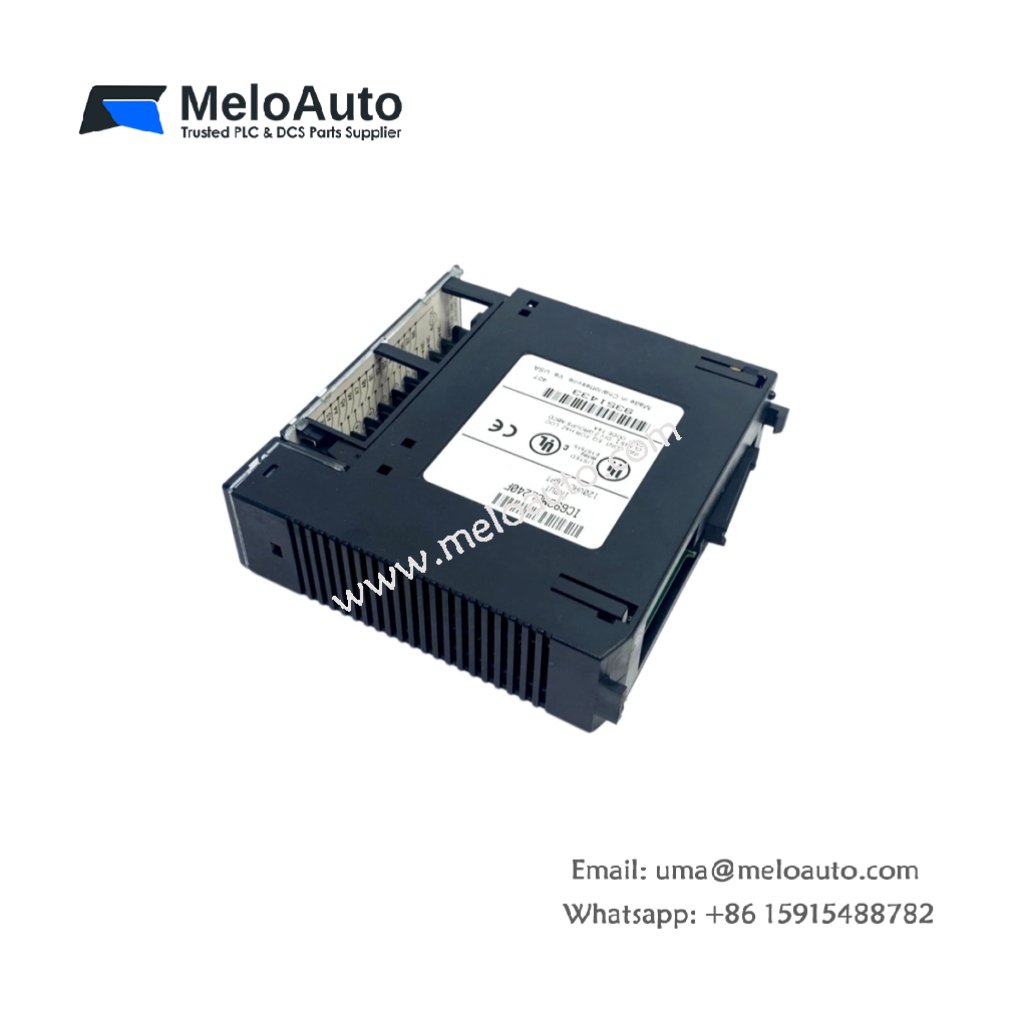

GE IC693MDL240 Discrete Input Module

The GE IC693MDL240 is a Series 90-30 Discrete Input module designed for use in industrial automation systems. Manufactured by GE Fanuc Emerson, this module offers sixteen (16) 120 VAC input channels organized into a single group. It supports an input voltage range of 0-132 VAC, with a nominal voltage of 120 VAC. The module is suitable for applications requiring reliable input signal handling for both AC voltages and input current.

Key Features

Model: GE IC693MDL240
Category: Discrete Input Module
Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30
Part Number: IC693MDL240

Technical Specifications

The GE IC693MDL240 offers precise technical specifications that make it highly effective in controlling AC signal inputs. The module is specifically built to handle a wide input voltage range and ensure reliable data transmission.

Specification	Details
Nominal Input Voltage	120 VAC
Input Voltage Range	0-132 VAC
Input Current	12 mA per channel
Number of Channels	16
Input Frequency	47-63 Hz
Current Draw (Backplane)	90 mA
On-State Voltage	74 VAC to 132 VAC
Off-State Voltage	0 VAC – 20 VAC
Isolation	1500 Volts RMS between field and logic side
Operating Temperature	0 to 60°C
Weight	1.00 lbs (0.45 kg)

Product Description

The GE IC693MDL240 is designed to provide reliable discrete input handling for automation systems. With sixteen input channels capable of accepting 120 VAC signals, the module ensures accurate signal processing. It offers an input range of 0-132 VAC, making it versatile for a variety of applications.

The module draws a current of 12 mA per channel and features an isolation rating of 1500 Volts RMS between the field and logic sides. This ensures safe operation in high-voltage environments. Additionally, it supports an input frequency range of 47-63 Hz, making it suitable for different types of input signal sources.

The GE IC693MDL240 also provides reliable on/off state voltage handling, with an on-state voltage ranging from 74 VAC to 132 VAC and an off-state voltage of 0 VAC to 20 VAC. With its compact design and solid performance, this module is ideal for industrial automation and control systems.

Applications and Benefits

Versatile Input Handling: The IC693MDL240 handles a variety of AC voltages, making it adaptable to many industrial systems.
High Voltage Isolation: The module provides 1500 Volts RMS isolation, protecting sensitive logic circuits from high-voltage spikes.
Efficient Power Management: With 90 mA current draw from the backplane, this module ensures efficient power consumption.
Compact and Reliable: At 1.00 lbs (0.45 kg), it is compact and reliable for use in rugged industrial environments.
Accurate Signal Processing: The 12 mA current per channel ensures precise input signal detection and reliable operation.

Conclusion

The GE IC693MDL240 discrete input module is a critical component in Series 90-30 systems, offering reliable input handling for industrial automation. With its robust technical specifications, including 120 VAC inputs, voltage isolation, and current draw of 12 mA per channel, this module delivers excellent performance in various industrial environments. It is ideal for automation systems requiring reliable signal processing and isolation.
