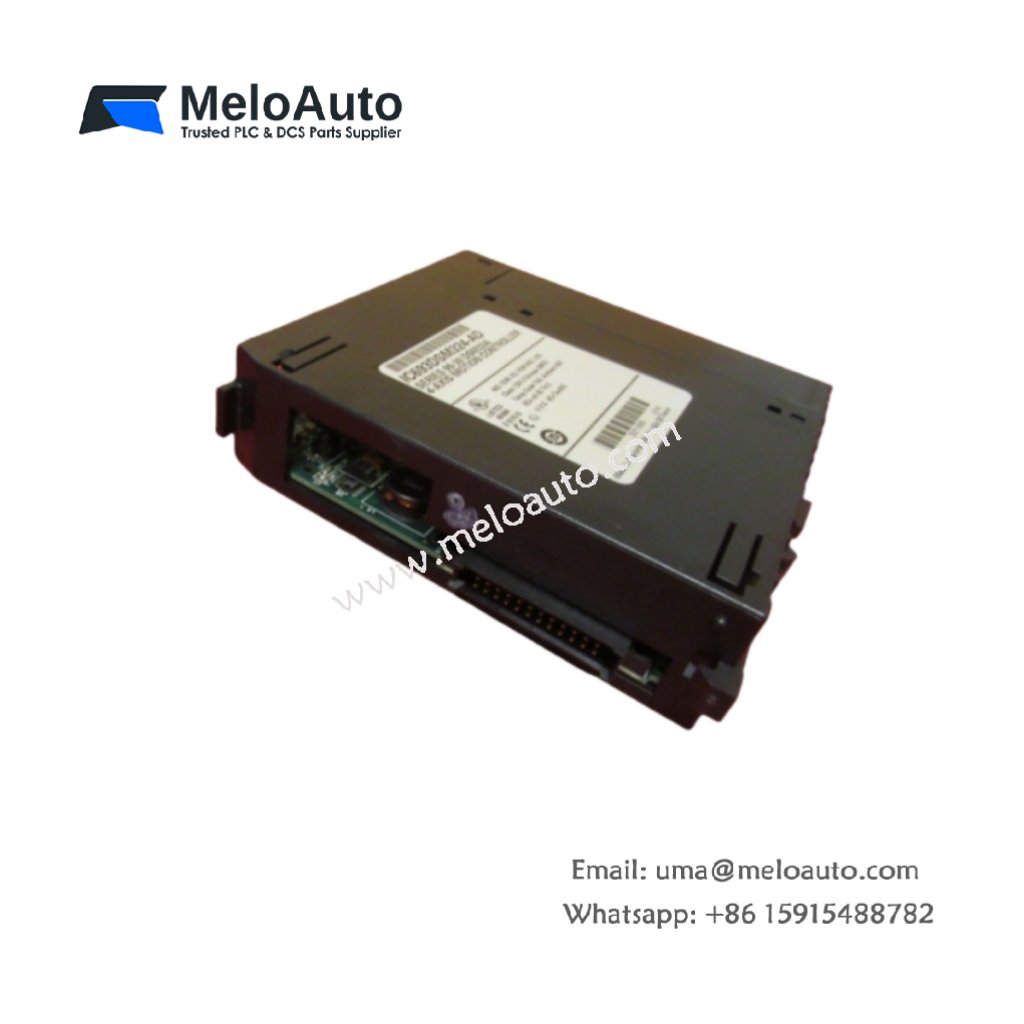

GE IC693DSM324 Motion Controller Module

Overview

The GE IC693DSM324 is a versatile motion controller module designed for use with the Series 90-30 PLC platform. It controls up to four motion axes and is ideal for complex motion control systems. This module is compatible with i, HVi, and iHVi series digital servo amplifiers and motors. Moreover, you can configure it in either Standard mode or Follower mode depending on your system’s requirements.

You can integrate the IC693DSM324 with GE Fanuc and Emerson automation systems, ensuring optimal performance in industrial environments. This module installs seamlessly into Series 90-30 and PACSystems RX3i systems, providing excellent flexibility for system configurations.

Key Features

Flexible Motion Control: The IC693DSM324 supports up to four motion axes, giving you precise control over multi-axis systems.
Multiple Modes: You can easily switch between Standard mode and Follower mode, ensuring the module adapts to different control needs.
Wide Compatibility: It supports i, HVi, iHVi Series digital servo systems, offering exceptional performance for a range of industrial applications.
Modular Integration: This module works with the Series 90-30 PLC and PACSystems RX3i, supporting up to 20 modules per system for large-scale systems.
Real-Time Monitoring: LED indicators like STATUS, OK, CONFIG, and axis-specific indicators provide real-time diagnostics and system updates.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc Emerson
Product Type	Motion Controller Module
Product Line	Series 90-30
Part Number	IC693DSM324
Weight	0.63 lbs (0.28 kg)
Compatibility	Series 90-30, PACSystems RX3i
Slot Width	Single Slot
Power Requirements	5 Volts DC
Number of Motion Axes	Four (4)
Power Consumption	860 milliamps (without encoder supply)
Encoder Supply Current	500 milliamps
Number of Modules per System	Up to 20 modules
Compatible CPUs	CPU 364, CPU 374, CPU 350, CPU 352, CPU 360, CPU 363
PACSystems RX3i Main Rack	5 DSM324i modules/CPU baseplate per PWR 040
Compatible Power Supply	PWR 321 / PWR 322 / PWR 328 / PWR 330 / PWR 331
PACSystems RX3i Expansion Racks	2 to 6 DSM324i modules
Backplane Current Draw	860 mA at 5VDC
Maximum Modules per System	32 DSM324i modules per PACSystems RX3i system
Mounting Location	Main Rack, Expansion/Remote Baseplate
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Communication Ports	24 VDC I/O: 36 Pin D-shell port, 5VDC I/O: 36 Pin D-shell port, COM Port: RJ45 FSSB port
Operating Mode	Standard mode; Follower mode

Application and Usage

The GE IC693DSM324 motion controller module excels in environments that demand multi-axis motion control. Whether you’re dealing with robotics, positioning systems, or other motion-related tasks, the module provides the precision and flexibility you need.

You can configure the IC693DSM324 in Standard mode or Follower mode, depending on the specific application. This module integrates effortlessly with Series 90-30 PLC systems and PACSystems RX3i, offering compatibility with multiple CPUs and power supplies. You can install it in main racks, expansion racks, and remote baseplates for enhanced scalability.

For applications involving digital servo systems, the IC693DSM324 is an excellent choice. With RS-485 communication, it connects seamlessly with various peripheral devices, enabling smooth data exchange and real-time configuration.
