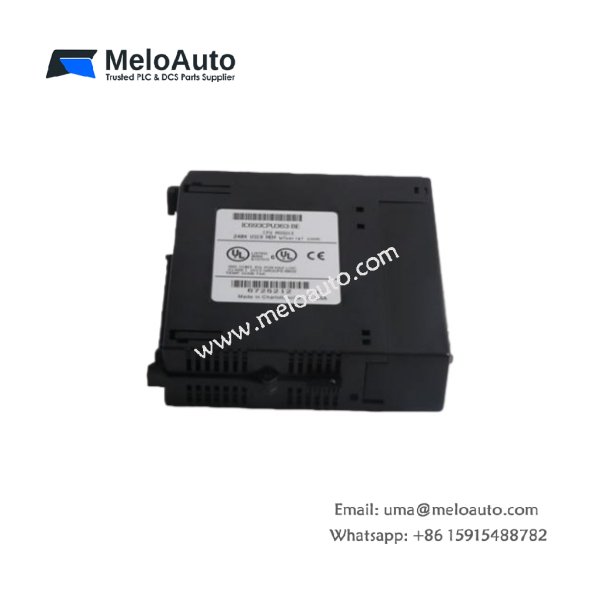

GE IC693CPU363 – Series 90-30 Processor Module

The GE IC693CPU363 is a powerful processor module designed for the GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). This module plays a critical role in executing user programs and managing communication between various devices in the automation system. It delivers high processing power and excellent reliability for a wide range of industrial applications.

Key Features and Functions

• High-Performance Processor: The module features an 80386EX microprocessor with a clock speed of 25 MHz, ensuring fast and reliable processing.
• Efficient Scan Rate: The typical scan rate is 0.22 milliseconds per 1K of logic, optimizing performance for Boolean contact operations.
• Embedded Memory: Includes 240KB of user memory, supporting both RAM and Flash storage for efficient program execution and data handling.
• Multiple Serial Communication Ports: Equipped with two serial ports, supporting RS232 and RS485 communication standards. It also has a third RS485 port integrated with the power supply for additional communication flexibility.
• Wide Compatibility: Designed for use with GE Fanuc 90-30 PLCs, offering seamless integration with various automation devices and systems.

Technical Specifications

Product Overview

The GE IC693CPU363 is a single-slot CPU module from the Series 90-30 PLC family. It is designed to handle complex control tasks and communication functions in distributed control systems. This processor module operates at a clock speed of 25 MHz, delivering efficient processing for industrial automation needs.

With 240KB of memory, the IC693CPU363 is capable of executing a wide range of control tasks and storing the user program for the system. It supports both RS232 and RS485 serial communication standards, offering two serial ports for data exchange and programming tasks. Additionally, the module includes a third RS485 port integrated into the power supply, providing further communication flexibility for system integration.

The IC693CPU363 supports a variety of communication protocols, including Ethernet, Profibus, FIP, and GCM. These features make it ideal for connecting with visualization components, SCADA systems, and other third-party devices. Its ability to operate with multiple communication protocols simultaneously makes it a versatile solution for many industrial applications.

Applications

• Industrial Automation: Widely used in manufacturing and control systems, where high processing speed and communication reliability are crucial.
• PLC Control Systems: Ideal for GE Fanuc 90-30 PLCs, this module provides seamless integration and communication for complex automation systems.
• Data Acquisition: Can be used in data acquisition systems, offering robust communication capabilities and high processing performance.
