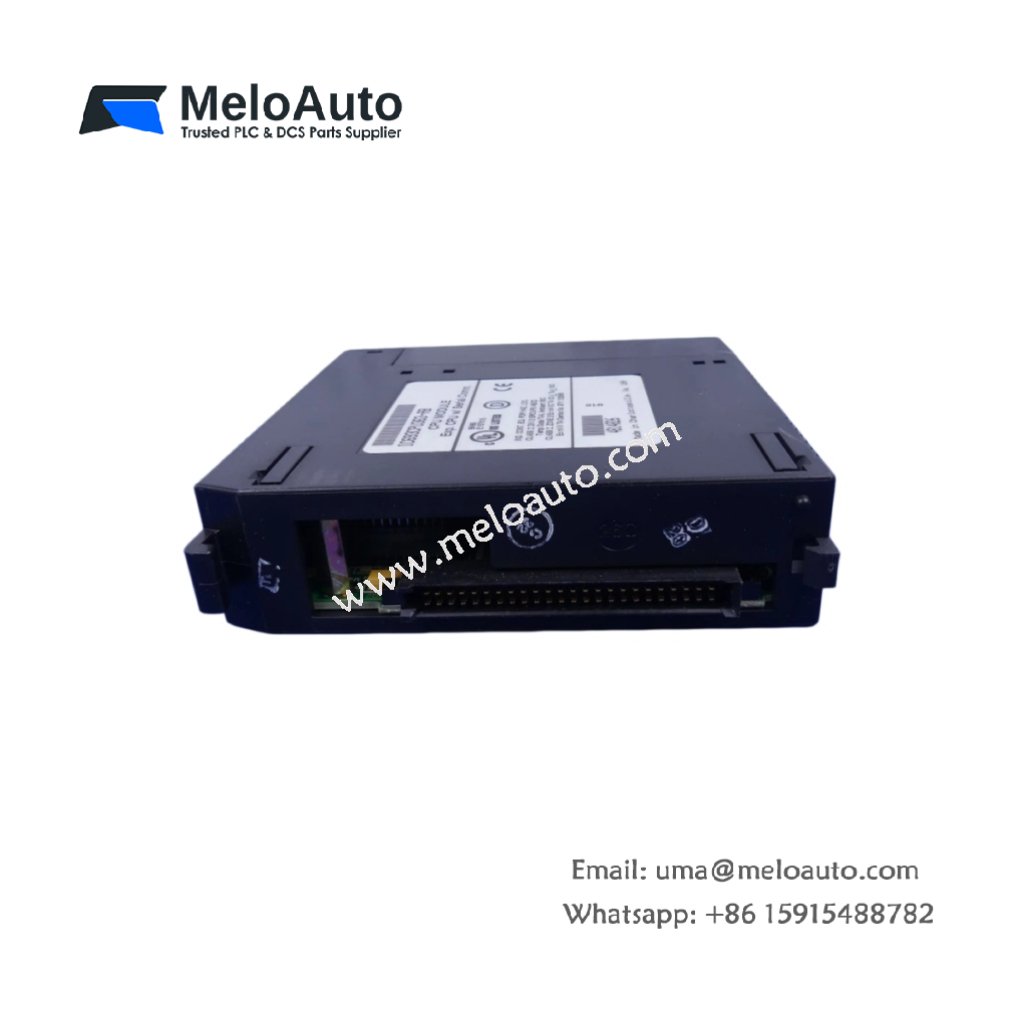

The GE IC693CPU363-AB is a high-performance CPU module designed for Series 90-30 PLC systems. This single-slot processor operates at a 25 MHz clock speed, making it ideal for handling demanding control applications. It offers fast processing with a typical scan rate of 0.22 milliseconds per 1K of logic for Boolean contacts.
Key Features of the GE IC693CPU363-AB Processor Module
- Processor Speed: The 25 MHz processing speed ensures fast computation for demanding tasks.
- Memory: Includes 240KB user memory, combining both RAM and Flash storage for efficient operation.
- Communication Ports: Equipped with two serial communication ports supporting RS232 and RS485 standards for flexible connectivity.
- Compact Design: The module features a single-slot width, ensuring easy installation within the GE Fanuc 90-30 PLC system.
- Power Efficiency: Requires only 890 mA from the +5 VDC supply, optimizing energy consumption.
- Operating Temperature: The module can operate in temperatures ranging from 0°C to 60°C (32°F to 140°F), making it suitable for a wide range of environments.
Technical Specifications
| Specification | Description |
|---|---|
| Model | GE IC693CPU363-AB |
| Product Type | CPU Module |
| Product Line | Series 90-30 |
| Weight | 1.00 lbs (0.45 kg) |
| User Memory | 240 KB RAM + Flash Memory |
| CPU Type | Single Slot CPU Module |
| Register Memory | 240 KB |
| Power Requirements | 890 mA from +5 VDC supply |
| Serial Ports | 2 (RS232 and RS485) |
| Typical Scan Rate | 0.22 ms per 1K of logic (Boolean contacts) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Compatibility | GE Fanuc 90-30 PLCs |
| Microprocessor | 80386EX |
| Discrete Inputs | 2048 |
| Discrete Outputs | 2048 |
Applications of the GE IC693CPU363-AB Processor Module
The GE IC693CPU363-AB processor module is ideal for a wide range of applications, including:
- Industrial Automation: Efficiently handles control logic, ensuring reliable automation of manufacturing and process systems.
- Control Systems: Provides seamless control for GE Fanuc 90-30 PLCs, integrating easily into existing systems.
- High-Performance Computing: Suitable for applications requiring fast processing speeds and high memory, such as robotics and motion control systems.
Why Choose the GE IC693CPU363-AB?
The GE IC693CPU363-AB offers reliable and fast performance for your control systems. Its RS232 and RS485 ports allow flexible communication with other systems, while the 240KB memory supports large-scale applications. Furthermore, the 25 MHz clock speed ensures fast processing of Boolean logic, making it an ideal choice for complex industrial automation and process control tasks.
Conclusion
The GE IC693CPU363-AB processor module provides the power and flexibility required to manage complex control tasks in Series 90-30 PLC systems. With its compact design, fast processing, and reliable communication options, this module helps streamline industrial operations and ensures smooth performance in a variety of applications.
