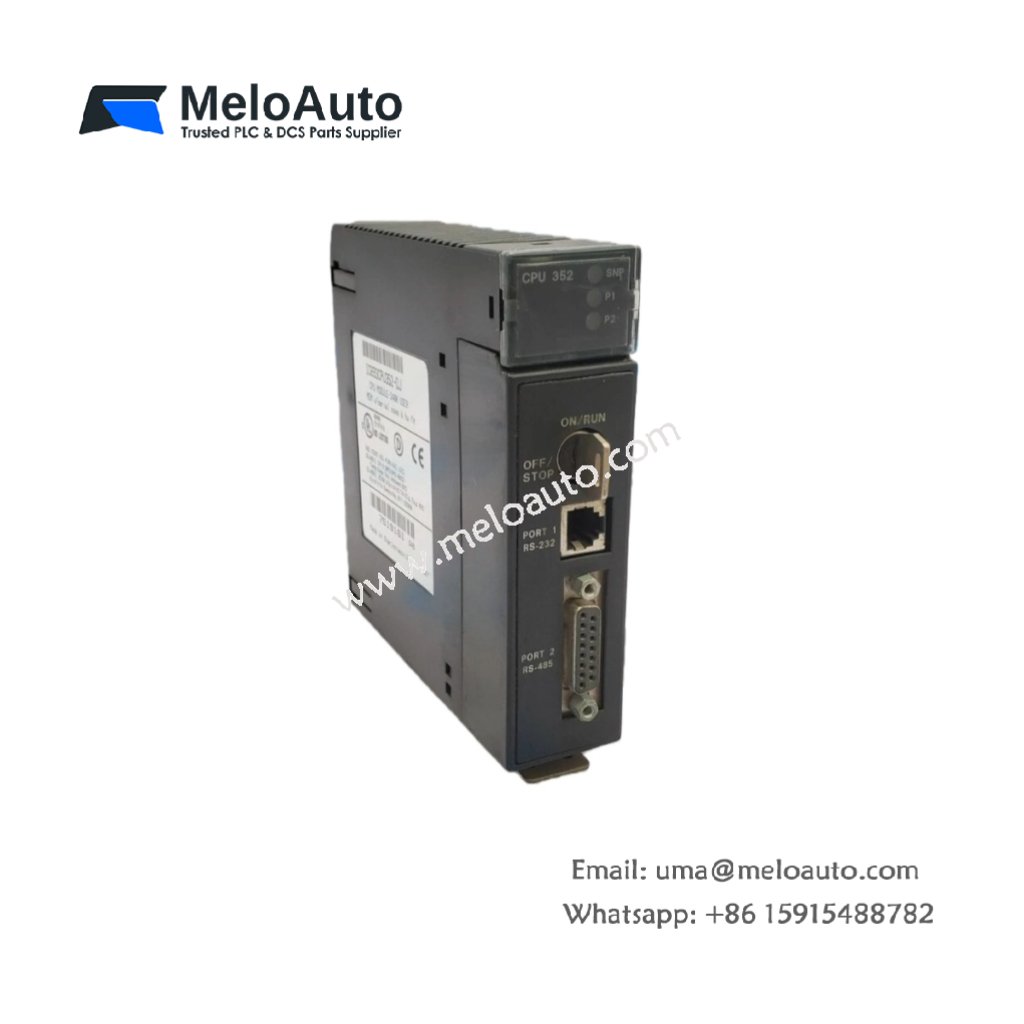

GE IC693CPU352 Modular CPU | 25 MHz Processor

The GE IC693CPU352 is a high-performance modular CPU designed for use with the Series 90-30 PLC. Manufactured by GE Fanuc, this CPU module provides advanced processing power and flexibility, making it ideal for complex industrial automation systems. It is equipped with an 80386EX processor running at 25 MHz, offering 240 Kbytes of user memory, and supporting a wide range of I/O modules.

Key Features

Model: IC693CPU352
Category: Modular CPU
Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30

Technical Specifications

Parameter	Value
Product Type	Modular CPU
Processor	80386EX
Clock Speed	25 MHz
User Memory	240 Kbytes
Compatibility	GE Fanuc 90-30 PLCs
Scan Rate	0.22 ms per 1K Boolean logic
Serial Ports	3
Voltage Input	5 Volts DC
Current Input	910 mA
Operating Temperature	0 to 60°C
Discrete Input Points	2048
Discrete Output Points	2048
Analog Input Words	32,640 (max)
Analog Output Words	32,640 (max)
Expansion Baseplates	7 I/O, 7 Remote I/O baseplates
Floating Point Math	Yes (hardware-based co-processor)
Timers / Counters	>2000
Shift Register	Yes
Built-in Serial Ports	PLC power supply port, RJ45 (Port 1), 9-pin D-sub (Port 2)
Math Co-processor	Yes

Description

The GE IC693CPU352 is an advanced CPU module designed for the Series 90-30 PLC. It features a powerful 80386EX processor operating at 25 MHz with 240 Kbytes of user memory. This CPU module supports communication with up to seven I/O expansion baseplates and seven Remote I/O baseplates, maximizing its I/O capacity for large-scale control systems.

Equipped with three serial ports, the module allows flexible communication. The SNP LED indicator and P1/P2 LED indicators on the front panel provide clear status information. Ports 1 and 2 support RTU slave and SNP/SNPX master/slave communication, making the module ideal for serial communication in automation systems.

The floating point math feature, enabled by a built-in co-processor, enhances the controller’s ability to process fractional or decimal data. This is crucial for applications requiring precise data computation and accurate measurements. For example, Human Machine Interfaces (HMI) and Supervisory Control and Data Acquisition (SCADA) systems can benefit from more accurate data readouts, while internal PID controllers can implement precise control for industrial processes.

This module is fully compatible with LogixMaster 90-30, VersaPro, and Proficy Machine Edition software, providing seamless integration into your automation infrastructure.

Applications

The GE IC693CPU352 is ideal for a range of industrial control applications, including:

Process Automation: Ideal for controlling complex industrial processes with high data computation needs.
Manufacturing Systems: Supports automated control systems in manufacturing lines, including robotics and sensor management.
Building Automation: Useful for managing large-scale building control systems, including HVAC and security.

Benefits

High-Speed Processing: The 80386EX processor and 25 MHz clock speed ensure fast, efficient processing for complex logic.
Scalability: Supports up to seven I/O and remote I/O baseplates, enabling system expansion for larger applications.
Floating Point Processing: The built-in co-processor supports advanced data processing for precise control and measurement.
Reliable Communication: Three serial ports support a variety of communication protocols, including SNP and RTU slave.
User-Friendly Integration: Compatible with LogixMaster 90-30, VersaPro, and Proficy Machine Edition, ensuring smooth integration with existing systems.
