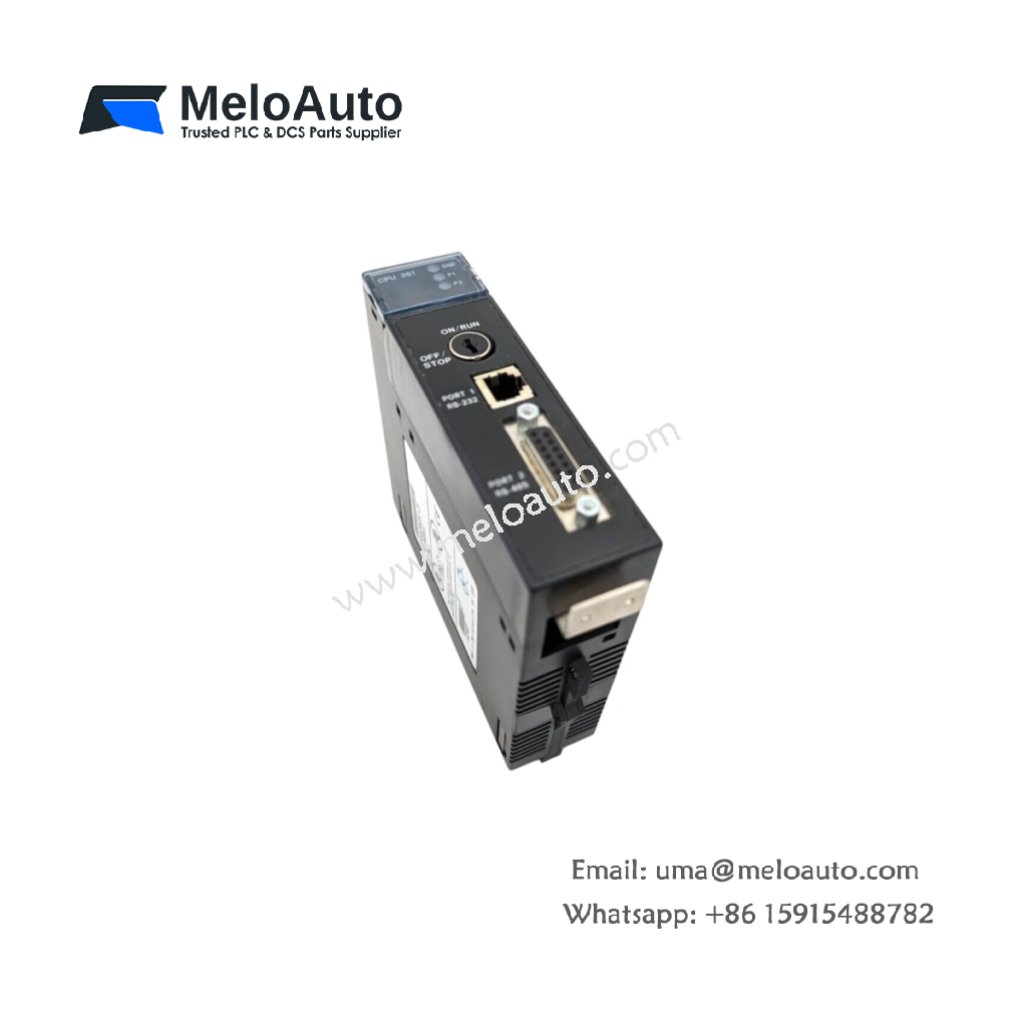

GE IC693CPU351-EK CPU Module | Series 90-30 PLC Processor

Programmable logic controllers require robust processing power for complex automation tasks. The GE IC693CPU351-EK CPU module delivers this core functionality for Series 90-30 systems. This module serves as the central processing unit for the entire control system. It executes user programs and manages I/O data exchange efficiently.

Technical Architecture and Specifications

This CPU module features a standard Series 90-30 form factor for rack-based installation. Its dimensions measure 12.5 cm in width and 11.4 cm in height. The GE IC693CPU351-EK weighs approximately 0.4 kilograms for secure mounting. It interfaces with the system backplane via a 48-pin card-edge connector. This connector provides power and communication to all I/O modules.

The internal assembly contains a single integrated circuit board with multiple processors. One processor handles logic execution, while another manages communication tasks. Engineers will note the inclusion of 240 KB of user program memory. This memory stores ladder logic, configuration data, and register values. The module also features 20 KB of register memory for data storage.

Communication and Connectivity

The GE IC693CPU351-EK provides built-in communication ports for system integration. It includes one RS-232 port for programming and one RS-485 port for networking. For operator interface, it supports connection to GE Fanuc operator panels directly. The module also accommodates an optional memory expansion cartridge for additional storage. You can explore similar industrial CPU solutions for reference.

Specification	Detail
Model	IC693CPU351-EK
Manufacturer	GE Fanuc
Product Line	Series 90-30
Dimensions (W x H)	12.5 cm x 11.4 cm
Weight	0.4 kg
User Memory	240 KB
Register Memory	20 KB
Communication Ports	RS-232, RS-485
Backplane Connector	48-Pin Card-Edge
Memory Expansion	Optional Cartridge Slot

Processing Capabilities

The GE IC693CPU351-EK executes ladder logic and structured text programs efficiently. It supports up to 4096 discrete I/O points and 256 analog I/O channels. The CPU scans user programs at speeds under 0.5 milliseconds per thousand contacts. Status LEDs indicate run mode, fault conditions, and communication activity clearly. Maintenance personnel can monitor CPU performance without additional software tools.
