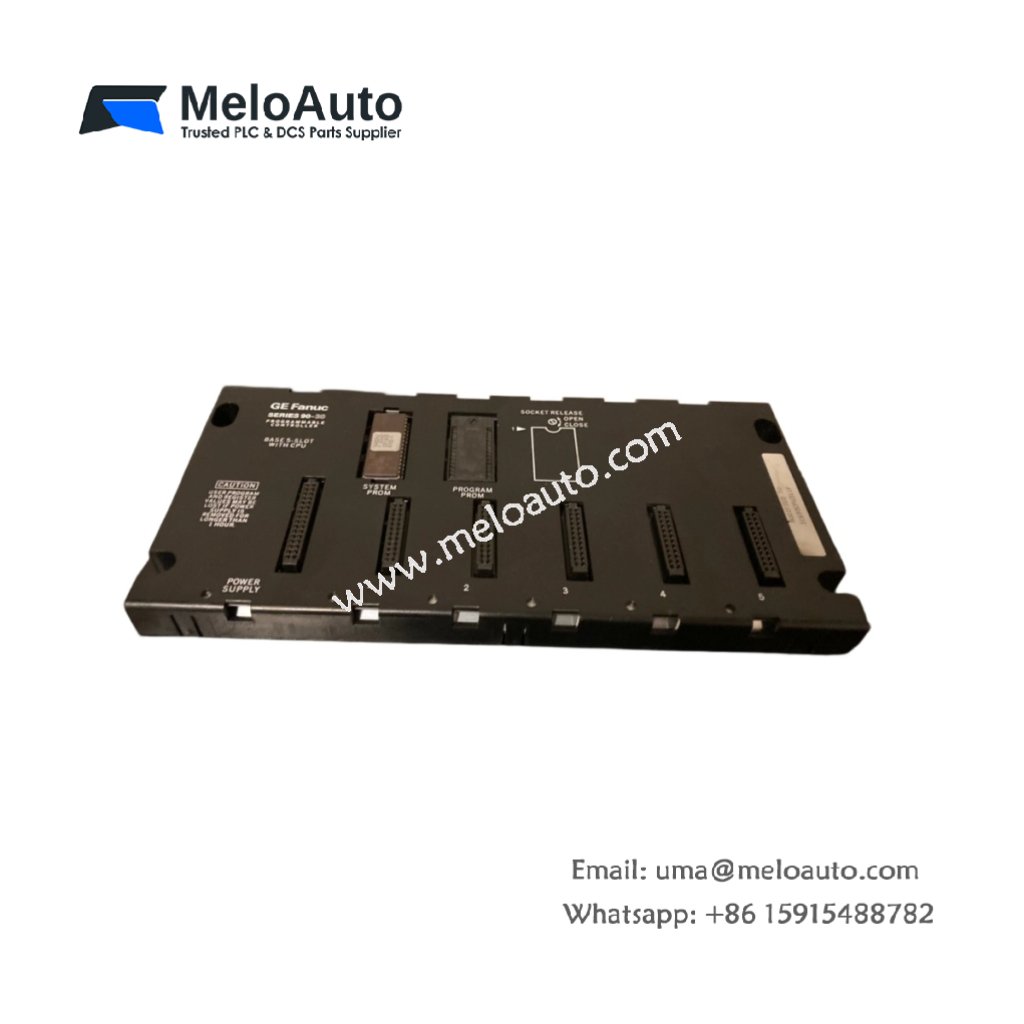

GE IC693CPU311D CPU Baseplate Module

The GE IC693CPU311D is a reliable CPU baseplate module designed for seamless integration into GE’s Series 90-30 PLC system. It serves as the central processing unit for industrial automation applications, efficiently handling communication, program execution, and module integration. Its robust design ensures stable operation even in demanding environments, providing essential control for complex automation systems.

Key Features and Specifications

Model: GE IC693CPU311D
Type: CPU Baseplate Module
Manufacturer: GE Fanuc
Product Line: Series 90-30
Part Number: IC693CPU311D
Dimensions: 6.3 x 4.2 x 3.0 inches (160 x 107 x 76 mm)
Weight: 1.0 lbs (0.45 kg)
Number of Slots: 5 (Accommodates up to 5 I/O modules)
CPU Type: 16-bit microprocessor
Memory:
- Program Memory: 1K words (~2 KB)
- Data Memory: 128 words
Scan Time: 4.2 milliseconds per 1K instructions
Communication Ports: RS-232C serial port (for programming and communication)
- Optional expansion port for additional modules
Status LEDs: Indicate CPU status, program execution, and communication activity

Detailed Technical Specifications

Parameter	Value
Model	IC693CPU311D
Manufacturer	GE Fanuc
Product Line	Series 90-30
Type	CPU Baseplate Module
Number of Slots	5
CPU Type	16-bit microprocessor
Program Memory	1K words (~2 KB)
Data Memory	128 words
Scan Time	4.2 ms per 1K instructions
Communication Ports	RS-232C, Expansion port
Status LEDs	CPU status, program, and communication
Dimensions	6.3 x 4.2 x 3.0 in (160 x 107 x 76 mm)
Weight	1.0 lbs (0.45 kg)

Powerful Processing for Industrial Applications

The GE IC693CPU311D is powered by a 16-bit microprocessor, enabling efficient processing for industrial automation systems. With 1K words of program memory and 128 words of data memory, it ensures smooth operation in controlling complex systems. The scan time of 4.2 ms per 1K instructions allows for acceptable response times in various applications, although it may be slower compared to newer PLC models.

Flexible I/O Expansion and Communication

This CPU baseplate module supports up to 5 I/O modules for system expansion, providing excellent flexibility for scaling up control systems. It includes an RS-232C serial port for programming and communication, ensuring easy integration with other automation components. Additionally, an optional expansion port allows for adding extra communication modules to meet the growing needs of your automation system.

Clear Status Indicators for Easy Monitoring

The GE IC693CPU311D features status LEDs that provide instant visual feedback on the CPU’s status, program execution, and communication activity. This feature simplifies system monitoring, enabling quicker troubleshooting and efficient system operation.

Compact and Lightweight Design

Weighing only 1.0 lb (0.45 kg) and measuring 6.3 x 4.2 x 3.0 inches, the IC693CPU311D is compact and easy to integrate into control panels. Its lightweight yet durable design ensures minimal impact on the overall system’s footprint, making it an excellent choice for tight spaces in industrial environments.
