GE IC693CMM302 Genius Communication Module

The GE IC693CMM302 is an advanced Genius communication module designed for use with the Series 90-30 Programmable Logic Controllers (PLC). Originally manufactured by GE Fanuc Automation and now under Emerson Automation, this module enables seamless communication with up to 31 devices, offering reliable data exchange through the Genius protocol. It is an ideal choice for distributed I/O architectures, enhancing system flexibility and data integration.

Key Specifications

Description

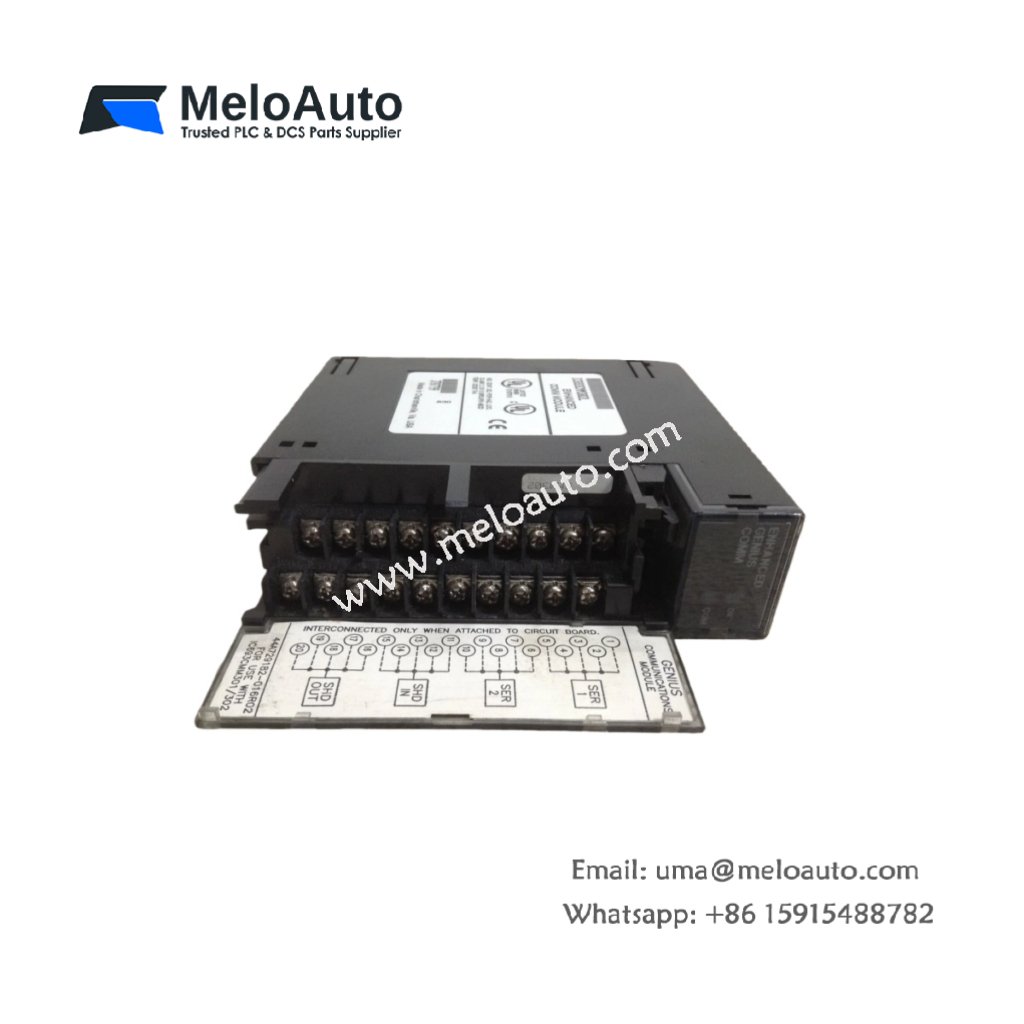

The GE IC693CMM302 Genius Communication Module facilitates communication with up to 31 devices, transmitting and receiving 128 bytes of data each. It supports various registers, such as %G (Global), %I (Discrete Input), %Q (Discrete Output), %AI (Analog Input), %AQ (Analog Output), and %R (Register Memory). The module connects seamlessly with Series 90-30 PLCs and allows communication over the Genius bus.

With a backplane power consumption of <300 mA at 5VDC, this module can be mounted on any slot of the Series 90-30 baseplate, except the CPU slot. The module is capable of handling up to 2 units per PLC, making it flexible and scalable for a range of industrial applications.

The IC693CMM302 also allows data monitoring through industrial or personal computers, providing a comprehensive view of system performance and enabling efficient diagnostics. The module features status LEDs for real-time monitoring, indicating the operational status and communication health of the device. It supports software-based diagnostics, offering fault reporting and status bits to improve system reliability.

This communication module operates within a wide range of temperatures, from 0°C to +60°C for operation and -25°C to +70°C for storage. It has been engineered to withstand mechanical vibrations and shock, ensuring reliable performance in harsh industrial environments.

Key Features

• Supports 31 devices: Allows extensive data exchange within a distributed system.
• Global data exchange: Transmits and receives up to 128 bytes of data per module.
• Flexible configuration: Mountable on any slot except the CPU slot in Series 90-30 PLC.
• LED indicators: Monitors module status with OK and COMM LEDs.
• Software diagnostics: Provides fault reporting and system diagnostics via PLC registers.
• Wide operating range: Functions in temperatures from 0°C to +60°C, suitable for various environments.
• Vibration & shock resistance: Designed to withstand industrial-level mechanical stress.

Applications

• Distributed I/O architectures in industrial automation.
• Data exchange between multiple devices within a PLC network.
• PLC communication systems for industrial and manufacturing plants.
• Monitoring and diagnostics via industrial computers.

The GE IC693CMM302 is an essential component for GE Series 90-30 PLC systems, providing robust communication and system reliability. It supports the integration of multiple devices and offers real-time diagnostics, ensuring efficient and smooth operation in industrial automation environments.
