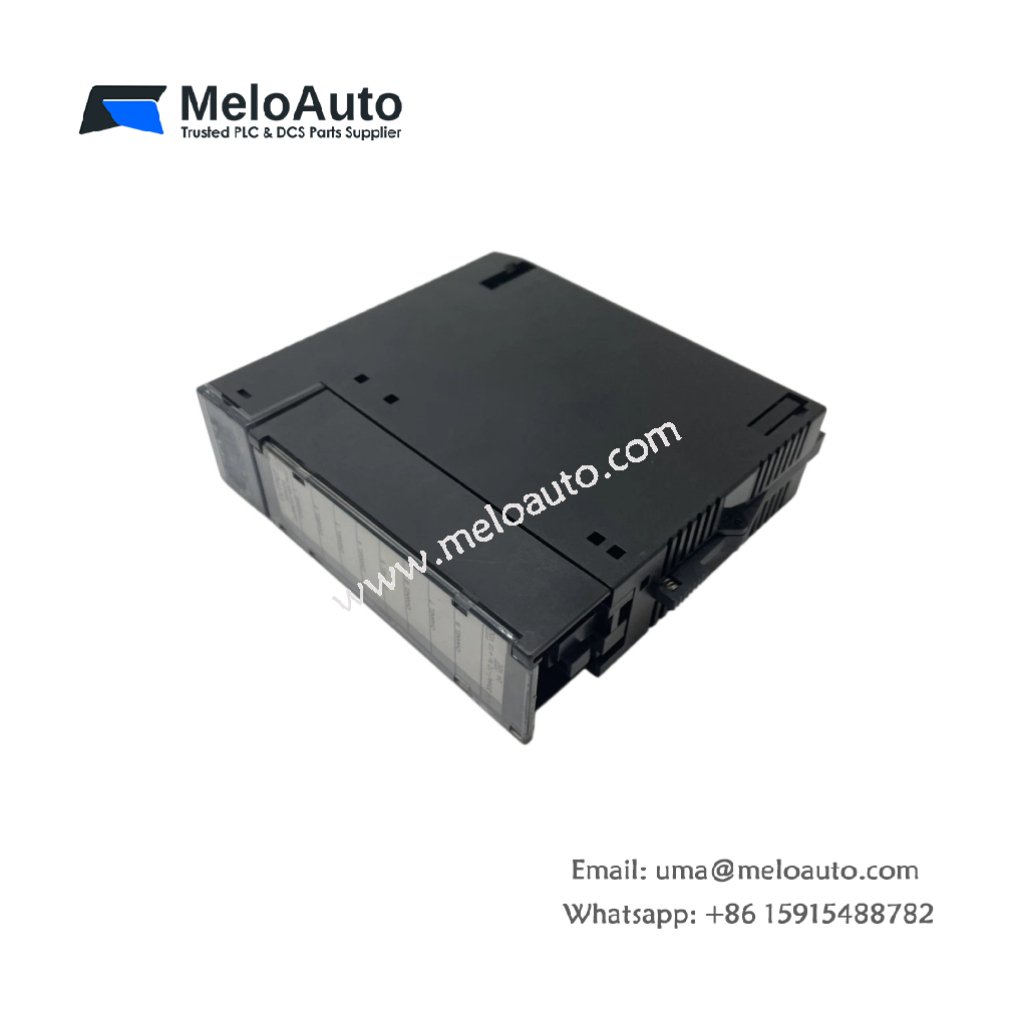

GE IC693ALG392 Analog Output Module for Series 90-30

The GE IC693ALG392 is an analog output module designed for the Series 90-30 system by GE Fanuc Emerson. This module provides precise voltage and current outputs for various industrial applications. It features eight (8) single-ended output channels, offering both unipolar voltage and current output configurations.

Key Features

Model: GE IC693ALG392
Category: Analog Output Module
Manufacturer: GE Fanuc Emerson
Series: Series 90-30
Part Number: IC693ALG392
Product Lifecycle Status: Discontinued/Obsolete

Technical Specifications

The GE IC693ALG392 provides output options for both voltage and current signals, delivering high resolution across its channels.

Specification	Details
Number of Channels	8
Current Range	4 to 20 mA, 0 to 20 mA
Voltage Range	0 to 10 V
External Supply Voltage Range	20 to 30 VDC
Internal Supply Voltage	5 VDC (from PLC backplane)
Resolution at 0-10 V	0.312 mV
Resolution at 4-20 mA	0.5 microamps
Resolution at 0-20 mA	0.625 microamps
Update Rate	8 ms (all channels)
Internal Power Consumption	110 mA at 5 VDC, 315 mA at 24 VDC

Product Description

The GE IC693ALG392 module delivers reliable analog output for control and measurement applications. It offers unipolar voltage output from 0 to +10 V and current outputs in the range of 4 to 20 mA or 0 to 20 mA.

This module supports precise control with 15 or 16-bit resolution, depending on the output range selected. Its configurable channels make it versatile for a wide range of industrial applications, such as process control, automation, and monitoring.

Application Areas

Industrial Automation: Ideal for precise signal control in automation systems.
Process Control: Suitable for processes requiring accurate current and voltage output signals.
Monitoring Systems: Useful in applications where real-time data needs to be monitored and adjusted.

Benefits

High Resolution: With a resolution of up to 0.312 mV for voltage outputs, the module ensures precise signal accuracy.
Flexible Output Options: Choose between different output ranges for your application needs, whether for voltage or current signals.
Efficient Power Usage: Operates efficiently with low internal power consumption at 5 VDC and 24 VDC user supply.
Rapid Update Rate: The update rate of 8 ms ensures timely response for all channels, enhancing system performance.

Conclusion

The GE IC693ALG392 analog output module is a crucial component for Series 90-30 systems that require precise voltage and current outputs. Although discontinued, its high resolution and flexible output options still make it a valuable asset for industrial applications, offering excellent performance and reliability.
