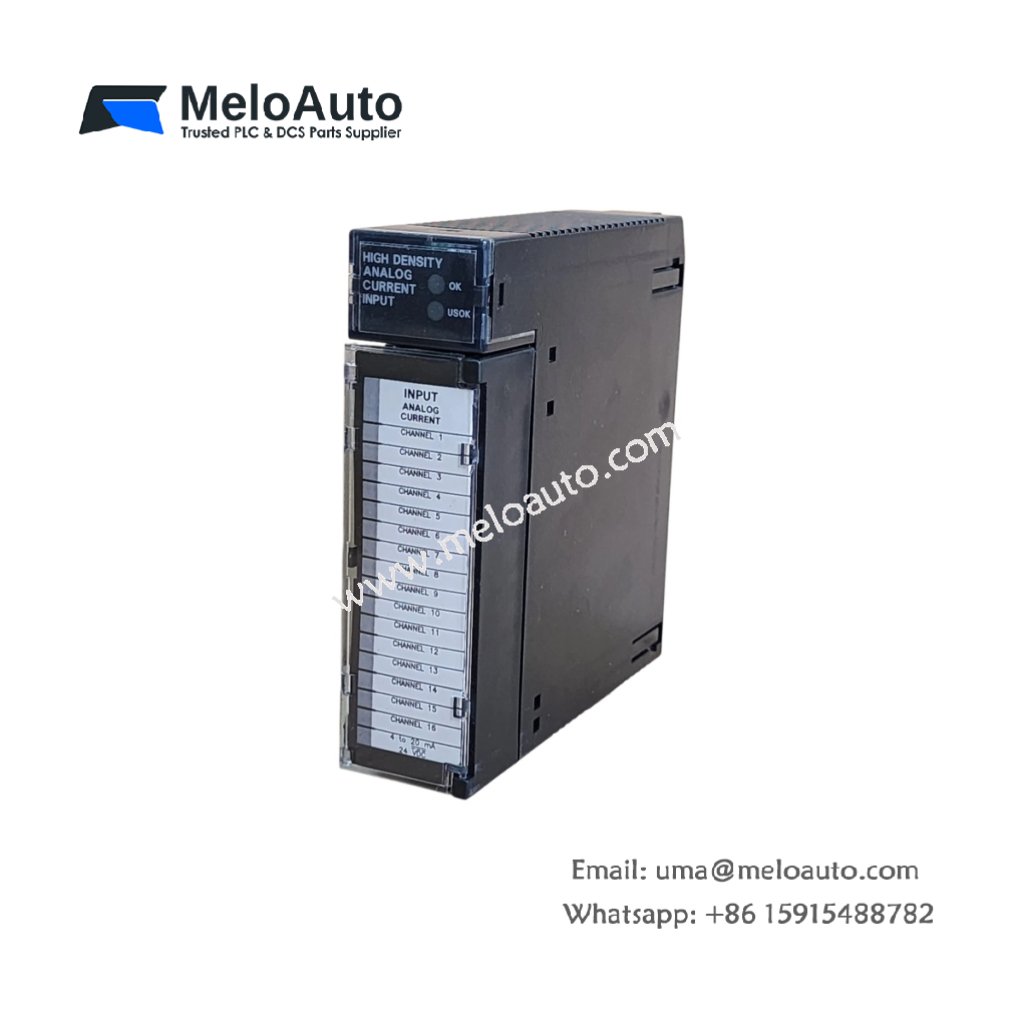

GE IC693ALG223C Analog Voltage Input Module

Overview

The GE IC693ALG223C Analog Voltage Input Module is a reliable and high-performance solution for industrial automation. Designed to accurately convert analog voltage signals into digital data, this module provides precise measurements crucial for various control applications. Thanks to its robust features, the GE IC693ALG223C ensures smooth system integration and accurate monitoring in diverse environments.

Key Specifications

Here are the key specifications of the GE IC693ALG223C Analog Voltage Input Module:

Specification	Value
Model	IC693ALG223C
Manufacturer	GE
Product Type	Analog Voltage Input Module
Series	IC693
Input Range	-10V to +10V
Input Channels	8 Channels
Signal Type	Voltage Input
Resolution	16-bit
Input Impedance	10 MΩ
Mounting Type	DIN Rail Mount
Dimensions (LxWxH)	160mm x 100mm x 30mm
Weight	0.5 kg
Operating Voltage	5V DC
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% (non-condensing)

Features and Benefits

High Precision Measurement: The GE IC693ALG223C module provides 16-bit resolution, ensuring exceptional accuracy in voltage measurements. As a result, it minimizes signal errors and enhances data reliability across control systems.
Wide Input Range: With a flexible input range of -10V to +10V, this module can handle diverse voltage inputs, making it adaptable to a wide array of industrial sensors and control applications. This range allows you to monitor a variety of analog signals efficiently.
Multiple Channels: Featuring 8 independent channels, the GE IC693ALG223C allows for simultaneous voltage measurements from multiple sources. This capability improves system monitoring and data processing without compromising performance.
Space-Saving Design: The module is compact, measuring only 160mm x 100mm x 30mm, and lightweight at 0.5 kg. Its DIN rail mounting system makes installation quick and straightforward, even in confined spaces.
Temperature Resilience: Designed to operate between 0°C and 60°C, the GE IC693ALG223C is durable in most industrial environments. Additionally, it can withstand storage temperatures ranging from -40°C to 85°C, ensuring reliability even in extreme conditions.

Conclusion

The GE IC693ALG223C Analog Voltage Input Module is an essential component for any industrial automation system requiring high-accuracy analog voltage measurements. Its flexible input range, multiple channels, and compact design make it an excellent choice for diverse applications. With its robust temperature tolerance and high precision, the module ensures reliable performance in demanding environments.
