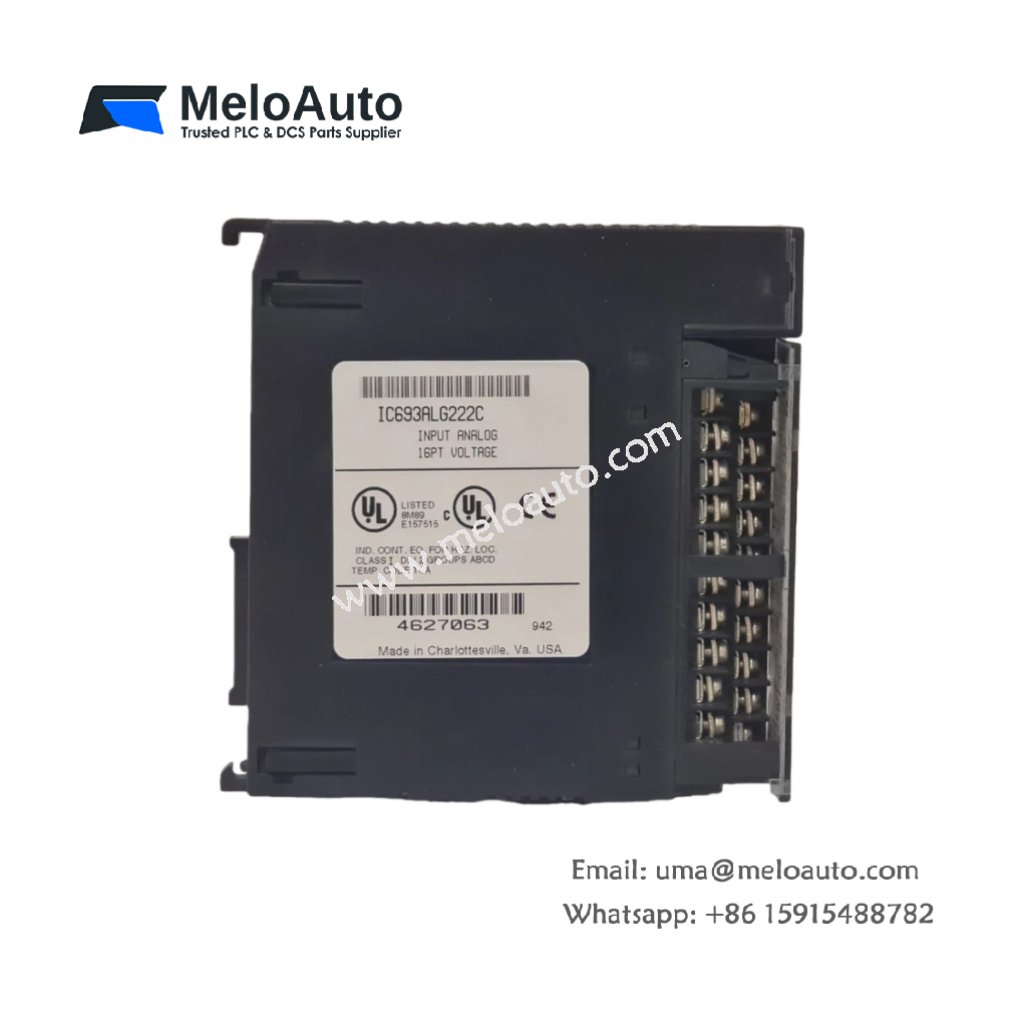

GE IC693ALG222 | 16-Channel Analog Voltage Input Module

The GE IC693ALG222 is an analog voltage input module designed for the GE Fanuc Series 90-30. It supports up to 16 single-ended input channels or 8 differential input channels. This module processes 0 to 10V and -10V to +10V input signals, offering flexible configuration for various industrial applications.

Key Features of the GE IC693ALG222

Flexible Input Options: Supports 16 single-ended or 8 differential channels.
Wide Input Range: Handles input signals from 0-10V and -10V to +10V.
High Resolution: Provides a 2.5 mV resolution for 0V to 10V and 5 mV for -10V to +10V signals.
Fast Update Rate: Each channel updates every 13 ms, ensuring fast data processing.
Compact Installation: Installs easily into any slot of a 5-slot or 12-slot Series 90-30 baseplate.
Accurate Signal Processing: Offers ±0.25% accuracy at 25°C and ±0.5% across the full operating range.

Technical Specifications

Specification	Value
Manufacturer	GE Fanuc Emerson
Product Type	Analog Voltage Input Module
Product Line	Series 90-30
Part Number	IC693ALG222
Weight	0.88 lbs (0.40 kg)
Number of Channels	16 (single-ended), 8 (differential)
Input Signal Range	-10V to +10V, 0V to 10V
Input Types	Single-ended and Differential
Resolution at 0V to +10V	2.5 mV (1 LSB)
Resolution at -10V to +10V	5 mV (1 LSB)
Linearity	< 1 LSB
Input Filter Response (Single-ended)	41 Hz
Input Filter Response (Differential)	82 Hz
Update Rate	13 ms (for all channels)
Isolation	1500 Volts RMS field to logic side
Power Consumption	112 mA (from +5 VDC bus), 41 mA (from Isolated +24 VDC supply)
Operating Temperature	0°C to 60°C
LED Indicators	2 green LEDs (“Module OK” and “Power Supply OK”)
Product Lifecycle Status	Discontinued/Obsolete

Description

The GE IC693ALG222 is an analog voltage input module that provides 16 single-ended or 8 differential input channels. These channels receive 0-10V and -10V to +10V signals, offering versatile signal processing for different industrial systems.

Each channel operates with a resolution of 2.5 mV for the 0-10V range and 5 mV for the -10V to +10V range, ensuring high accuracy. The module’s linearity is less than 1 LSB, and it maintains an accuracy of ±0.25% at 25°C and ±0.5% across the full temperature range. The update rate for all channels is a quick 13 ms, ensuring timely data collection.

When configured in single-ended mode, the input filter response is 41 Hz, and in differential mode, it increases to 82 Hz. This provides flexibility depending on the application needs.

The IC693ALG222 is easily installed in 5-slot or 12-slot baseplates of the Series 90-30 platform. Depending on the specific CPU, users can install up to 51 modules in a system with CPU 350 to 364. For CPU 311, 313, or 323, users can install up to 4 modules.

The module has an isolation rating of 1500 V RMS, ensuring secure operation in harsh industrial environments. It also offers efficient power consumption, drawing 112 mA from the +5 VDC bus and 41 mA from the Isolated +24 VDC supply.
