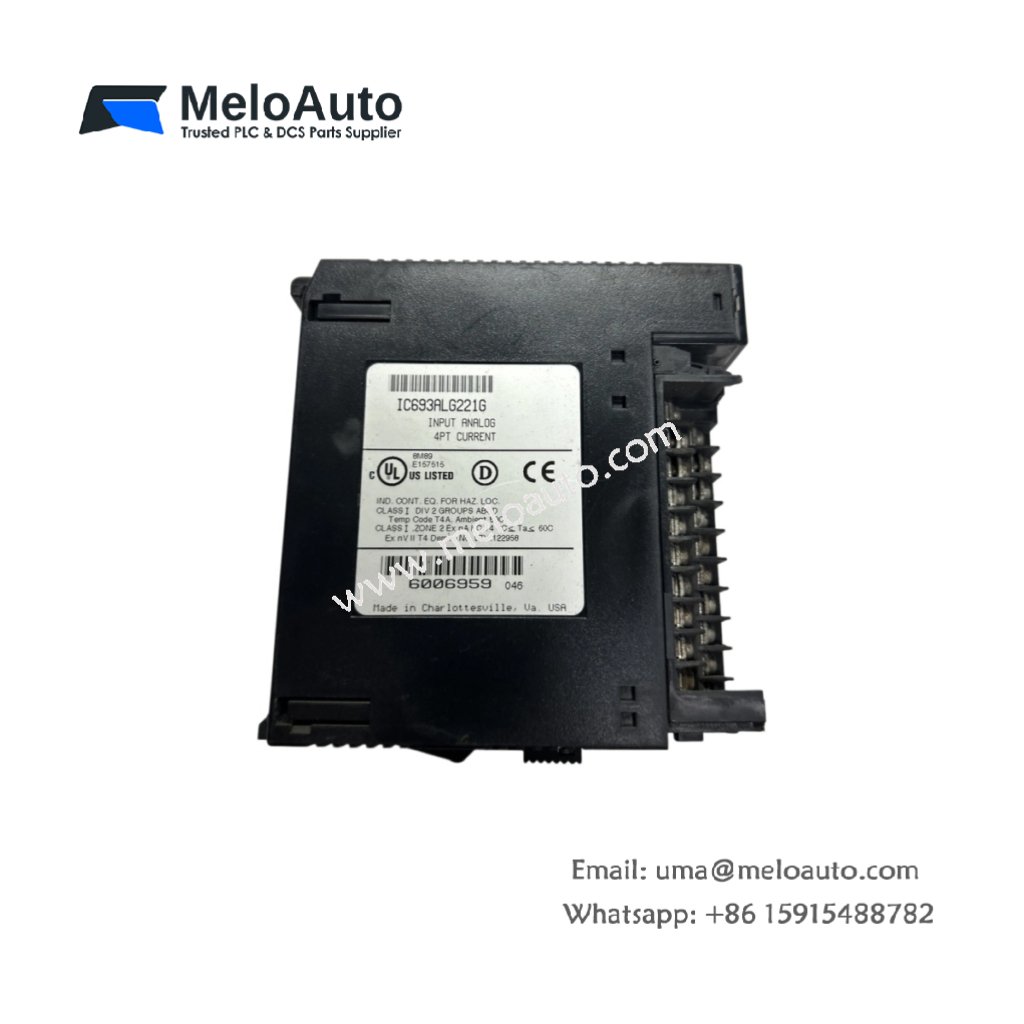

The GE IC693ALG221G is a highly efficient analog current input module designed for use in GE’s Series 90-30 PLC system. It enables precise measurement and monitoring of current signals from various industrial processes. This module ensures seamless integration with other automation components, providing a reliable solution for handling analog inputs in demanding applications.
Key Features and Specifications
- Model: GE IC693ALG221G
- Type: Analog Current Input Module
- Manufacturer: GE Fanuc
- Product Line: Series 90-30
- Part Number: IC693ALG221G
- Dimensions: 4.6 x 6.0 x 3.0 inches (117 x 152 x 76 mm)
- Weight: 0.6 lbs (0.27 kg)
- Input Signal: 4-20 mA current
- Input Channels: 8
- Input Impedance: 250 ohms
- Accuracy: ±0.1% of full scale
- Operating Voltage: 5 VDC
- Interface Type: Screw Terminal
- Application: Industrial automation, signal processing, monitoring systems
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC693ALG221G |
| Manufacturer | GE Fanuc |
| Product Line | Series 90-30 |
| Type | Analog Current Input Module |
| Input Signal | 4-20 mA |
| Input Channels | 8 |
| Input Impedance | 250 ohms |
| Accuracy | ±0.1% of full scale |
| Dimensions | 4.6 x 6.0 x 3.0 in (117 x 152 x 76 mm) |
| Weight | 0.6 lbs (0.27 kg) |
| Operating Voltage | 5 VDC |
| Interface Type | Screw Terminal |
| Application | Signal processing, industrial automation |
High-Precision Current Signal Input
The GE IC693ALG221G processes 4-20 mA current signals, providing precise analog data from sensors or other devices. With 8 input channels, it can handle multiple signal sources, making it ideal for applications where accurate monitoring of industrial processes is essential.
Compact and Reliable Design
Measuring 4.6 x 6.0 x 3.0 inches and weighing just 0.6 lbs (0.27 kg), the IC693ALG221G offers a compact design without sacrificing performance. Its screw terminal connections simplify installation and integration into control panels, ensuring reliable operation even in tight spaces.
Excellent Accuracy and Stability
This module offers ±0.1% accuracy of full scale, making it highly reliable for precise current measurements in industrial settings. Its 250-ohm input impedance ensures compatibility with various signal sources, providing stable and accurate readings across all channels.
Seamless Integration in Automation Systems
The GE IC693ALG221G is designed for seamless integration into industrial automation systems. It connects directly to the Series 90-30 PLC, processing incoming analog current signals and ensuring smooth data communication for continuous process control.
