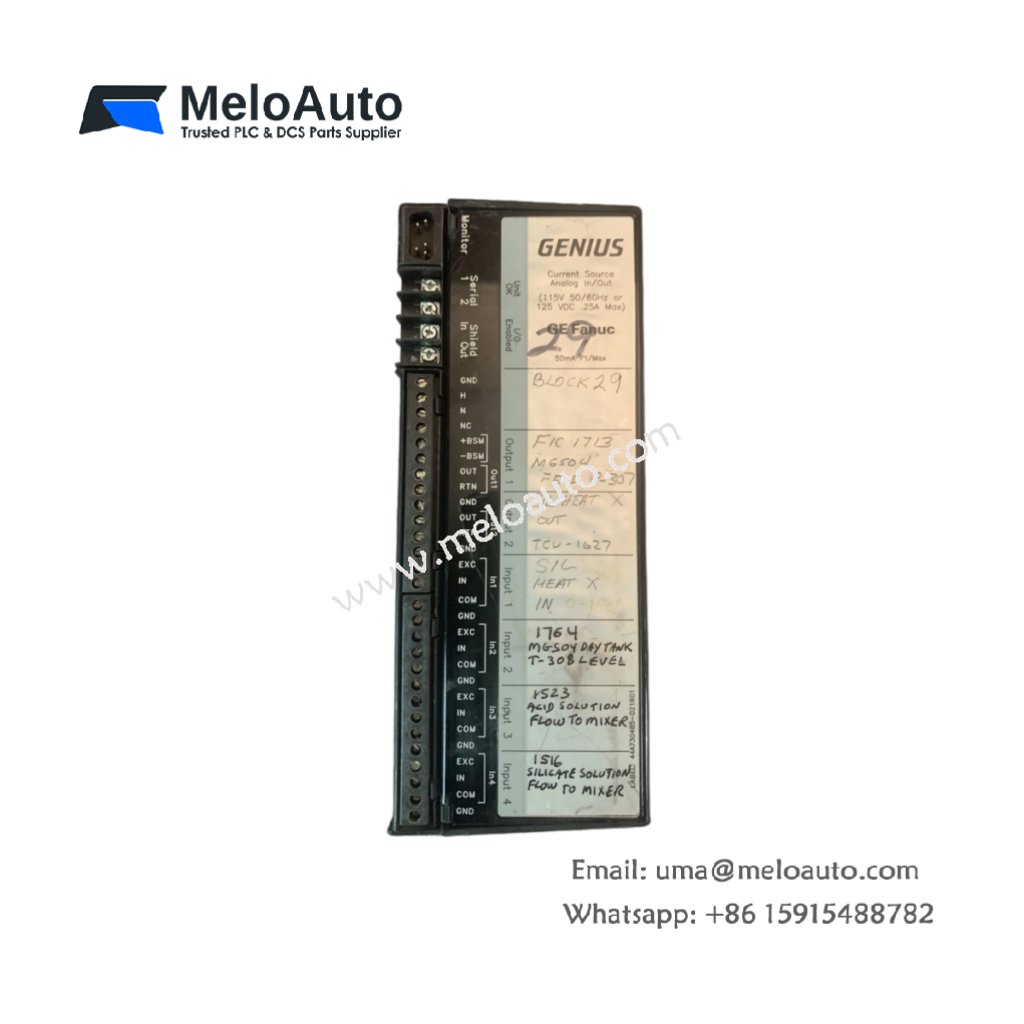

GE IC660TBA104 Terminal Assembly

Overview

The GE IC660TBA104 terminal assembly is a crucial component from the Genius I-O series by GE Fanuc Emerson. Designed for high-performance industrial applications, this terminal assembly integrates 4 input and 2 output circuits to meet various operational needs. It features a reliable analog block with both AC and DC voltage options, ensuring flexibility across different environments and systems.

Key Features

Flexible Input and Output: The IC660TBA104 provides 4 input and 2 output circuits, suitable for diverse industrial operations.
Wide Voltage Compatibility: It supports both 115 Volts AC and 125 Volts DC rated voltage, offering broad compatibility with existing systems.
Efficient Power Usage: With a maximum current rating of 250 milliamps (AC) and 140 milliamps (DC), the terminal efficiently manages power while ensuring reliability.
High Isolation Ratings: It provides 1500 Volts isolation for 1 minute between blocks and 300 Volts isolation between groups, offering enhanced protection against electrical surges.
Robust Heat Management: The terminal assembly dissipates 12 Watts of power, helping maintain optimal performance and prevent overheating.
Reliable Performance: With a frequency range of 47 to 63 Hertz and a ripple of 10% maximum, the assembly delivers stable and consistent operation.

Technical Specifications

Parameter	Specification
Model Number	IC660TBA104
Manufacturer	GE Fanuc Emerson
Product Line	Genius I-O
Block Type	4 Input and 2 Output Circuits
Rated Voltage	115 Volts AC / 125 Volts DC
Power Supply Voltage	93 to 132 Volts AC / 105 to 145 Volts DC
Maximum Current	250 milliamps (AC) / 140 milliamps (DC)
Frequency	47 to 63 Hertz
Ripple	10% maximum ripple
Power Dissipation (Max)	12 Watts
Block to Block Isolation	1500 Volts for 1 minute
Group to Group Isolation	300 Volts
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 100°C (-40 to 212°F)

Advantages

Enhanced Flexibility: The GE IC660TBA104 offers dual voltage input options, making it adaptable to different system requirements.
High Electrical Isolation: With 1500 Volts isolation between blocks and 300 Volts between groups, it protects equipment from electrical disturbances.
Compact Yet Powerful: Despite its compact design, it handles up to 12 Watts of power dissipation, ensuring smooth, uninterrupted performance.
Wide Operating Range: It operates efficiently in temperatures ranging from 0°C to 60°C, suitable for many industrial environments.
Durability: With a wide storage temperature range of -40°C to 100°C, this terminal assembly remains reliable in extreme conditions.

Applications

The GE IC660TBA104 terminal assembly is ideal for use in industrial automation systems, particularly in applications requiring precise voltage control, reliable input/output handling, and high electrical isolation. It integrates well with GE Fanuc Emerson’s Genius I-O series, making it perfect for diverse control and monitoring systems.
