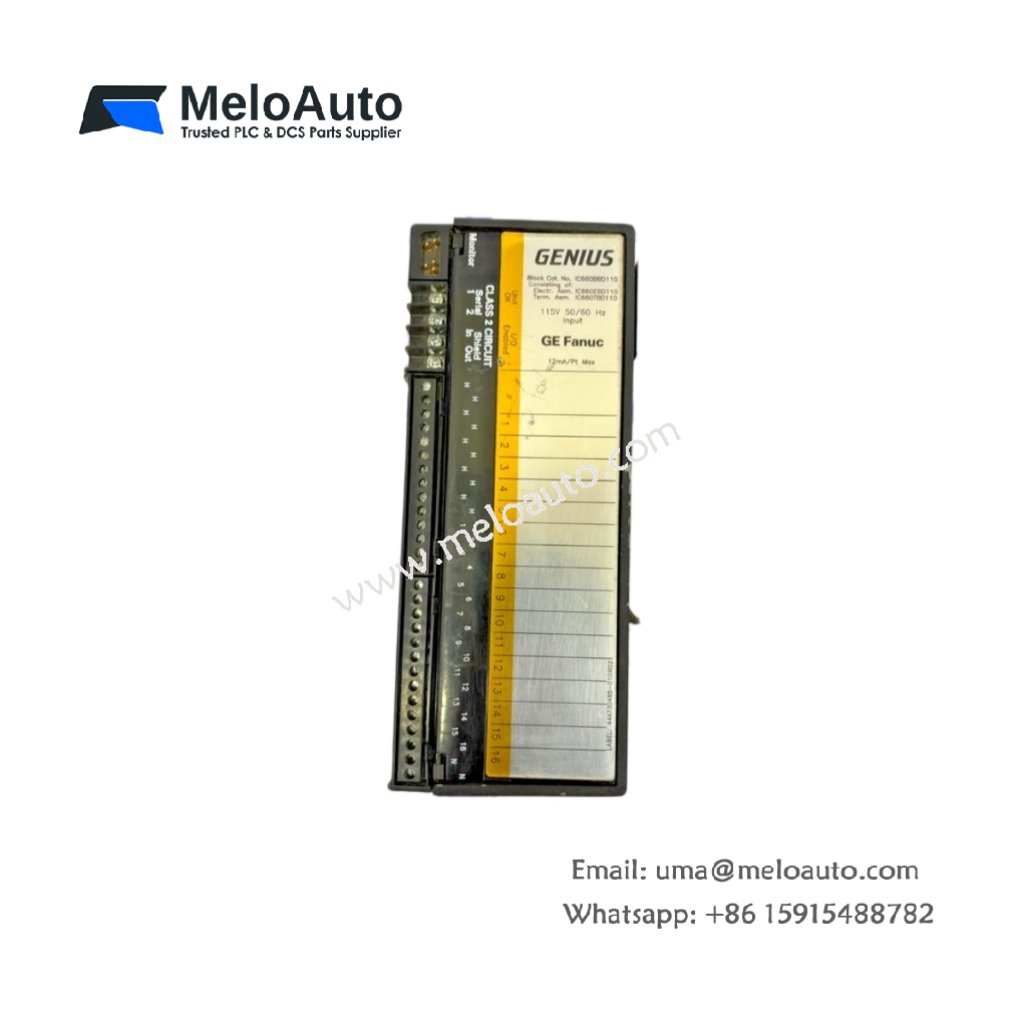

GE IC660EBD110 Genius Block I/O Module

Introduction

The GE IC660EBD110 is a vital electronic assembly within the Genius Block I/O module series by GE Fanuc, now part of Emerson Automation. This assembly is specifically designed to work with the IC660TBD110 terminal base, forming the IC660BBD110—a 16-channel discrete input block for 93-132 VAC voltage systems. The IC660EBD110 module offers reliable performance for industrial automation, ensuring smooth input processing and system integration.

Key Features

Seamless Integration: The IC660EBD110 easily integrates with the IC660TBD110 terminal base to create the IC660BBD110, providing efficient and reliable input control. This combination enables seamless operation in various industrial systems, ensuring excellent system compatibility and performance.
High Voltage Compatibility: With a nominal input voltage of 115 VAC and an input voltage range from 93-132 VAC, the IC660EBD110 supports a wide range of industrial applications. It ensures stable operation within these voltage parameters, providing reliability and efficiency in electrical systems.
Discrete Input Channels: The module supports 16 discrete input channels, offering high flexibility and control over connected devices. This feature makes the IC660EBD110 ideal for controlling multiple systems and sensors simultaneously in complex automation processes.
High Input to Ground Isolation: Featuring 1500 V input-to-ground isolation, the IC660EBD110 ensures enhanced protection against electrical surges and interference. This isolation provides long-term reliability and safety for industrial operations.
Efficient Power Consumption: The IC660EBD110 operates with a 5 A input current, ensuring that it performs efficiently while consuming minimal power. The module also has a maximum heat dissipation of 28 W when all 16 inputs are on at full current, making it energy-efficient.
Wide Frequency Range: The module supports an operating frequency range of 47-63 Hz, making it suitable for various global electrical systems.

Technical Specifications

Parameter	Specification
Model Number	IC660EBD110
Manufacturer	GE Fanuc (Emerson Automation)
Category	Electronic Assembly
Product Line	Genius Block I/O
Weight	4.00 lbs (1.81 kg)
Dimensions (L x W x H)	8.83 x 3.50 x 3.94 inches
Compatible Module	IC660BBD110 (16 Discrete Input Channels)
Nominal Input Voltage	115 VAC
Input Voltage Range	93-132 VAC
Input Current	5 A
Number of Inputs	16 Discrete Inputs
Heat Dissipation	28 W Max (at full current, 16 inputs ON)
Operating Voltage	93-132 V AC
Input to Ground Isolation	1500 V
Frequency	47-63 Hz
Compatible Terminal Base	IC660TBD110

Applications

The GE IC660EBD110 is ideally suited for various industrial applications, including:

Process Control Systems: It efficiently handles input from sensors and devices in process control systems, ensuring smooth data collection and processing for optimal system performance.
Industrial Automation: With its 16 discrete inputs, the IC660EBD110 is perfect for automating manufacturing and other industrial processes, improving control and productivity.
Control and Monitoring Systems: The module integrates seamlessly into control and monitoring systems, offering high input isolation and protection for sensitive equipment.
Energy Management Systems: This module is a key component in energy monitoring systems, efficiently managing power inputs and improving system efficiency.

Conclusion

In conclusion, the GE IC660EBD110 electronic assembly module is a reliable and efficient solution for industrial automation applications. Its compatibility with the IC660TBD110 terminal base, combined with its high input-to-ground isolation and versatile voltage range, ensures seamless integration and superior performance. With 16 discrete inputs and efficient power usage, the IC660EBD110 is an excellent choice for enhancing control and reliability in various industrial control systems.
