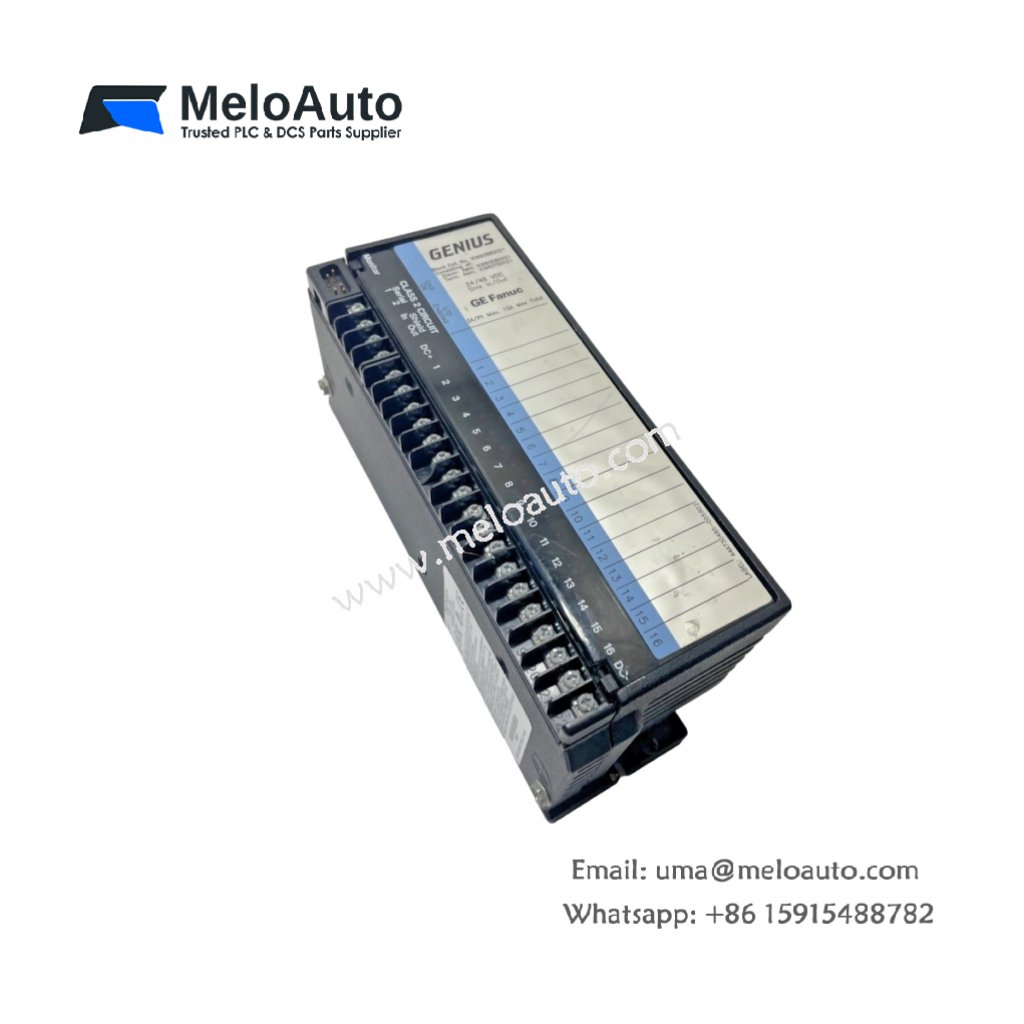

GE IC660EBD021 Electronic Assembly

Overview

The GE IC660EBD021 is an essential electronic assembly within GE Fanuc’s Genius I/O system, now part of Emerson Automation. This component works seamlessly with compatible terminal blocks like IC660TSD021 and IC660TSD023. Together, they form the IC660BBD021 and IC660BBD023, offering efficient 16-channel discrete input and output functionality. By enhancing system integration, it provides a reliable automation solution for various industrial applications.

Key Features

Streamlined Integration: The IC660EBD021 integrates easily with Genius I/O systems, simplifying automation processes.
Wide Voltage Range: With a voltage range of 18-56 VDC, this module adapts to diverse operational environments.
Effective Isolation: The component offers 1500 V block-to-block isolation, ensuring minimal electrical interference and stable performance.
Compact and Energy Efficient: Its compact design and 300 mA power requirement reduce energy consumption while maintaining reliable functionality.
Temperature Flexibility: The IC660EBD021 operates effectively in temperatures from 0°C to 60°C, ensuring stable performance in diverse settings.

Technical Specifications

Parameter	Specification
Model Number	IC660EBD021
Manufacturer	GE Fanuc (Emerson Automation)
Product Type	Electronic Assembly
Product Line	Genius I/O
Part Number	IC660EBD021
Weight	3.19 lbs (1.45 kg)
Series	Block I/O
Operating Voltage	18-56 VDC / 18-30 VDC
Nominal Input Voltage	24 VDC / 48 VDC
Required DC Power	300 mA (Max)
Input Voltage Range	18-56 VDC
Number of Configurable Inputs	16 Discrete Inputs
Number of Configurable Outputs	16 Discrete Outputs
Block-to-Block Isolation	1500 V
Circuit LEDs	Individual load side indicators
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 100°C
Power Supply Dropout Time	10 microseconds
Compatible Terminal Base	IC660TSD021 or IC660TSD023 terminal bases

Advantages

Effortless Integration: The IC660EBD021 facilitates simple integration with Genius I/O systems, boosting the overall efficiency and reliability of the automation process.
Flexible Voltage Support: This component supports a wide voltage range, including both 24 VDC and 48 VDC configurations. As a result, it suits various industrial and commercial setups.
Durable in Harsh Environments: The assembly operates efficiently in temperatures ranging from 0°C to 60°C and withstands storage temperatures as low as -40°C and as high as 100°C.
Quick Power Recovery: With a 10-microsecond power dropout time, the module minimizes downtime and ensures swift system recovery.
Energy Saving: Designed to optimize power usage, the IC660EBD021 ensures maximum efficiency while maintaining excellent functionality.

Applications

The GE IC660EBD021 plays a critical role in automation systems, process control, and remote monitoring. Compatible with Genius I/O modules and terminal blocks, it is perfect for industries that require dependable, scalable control solutions
