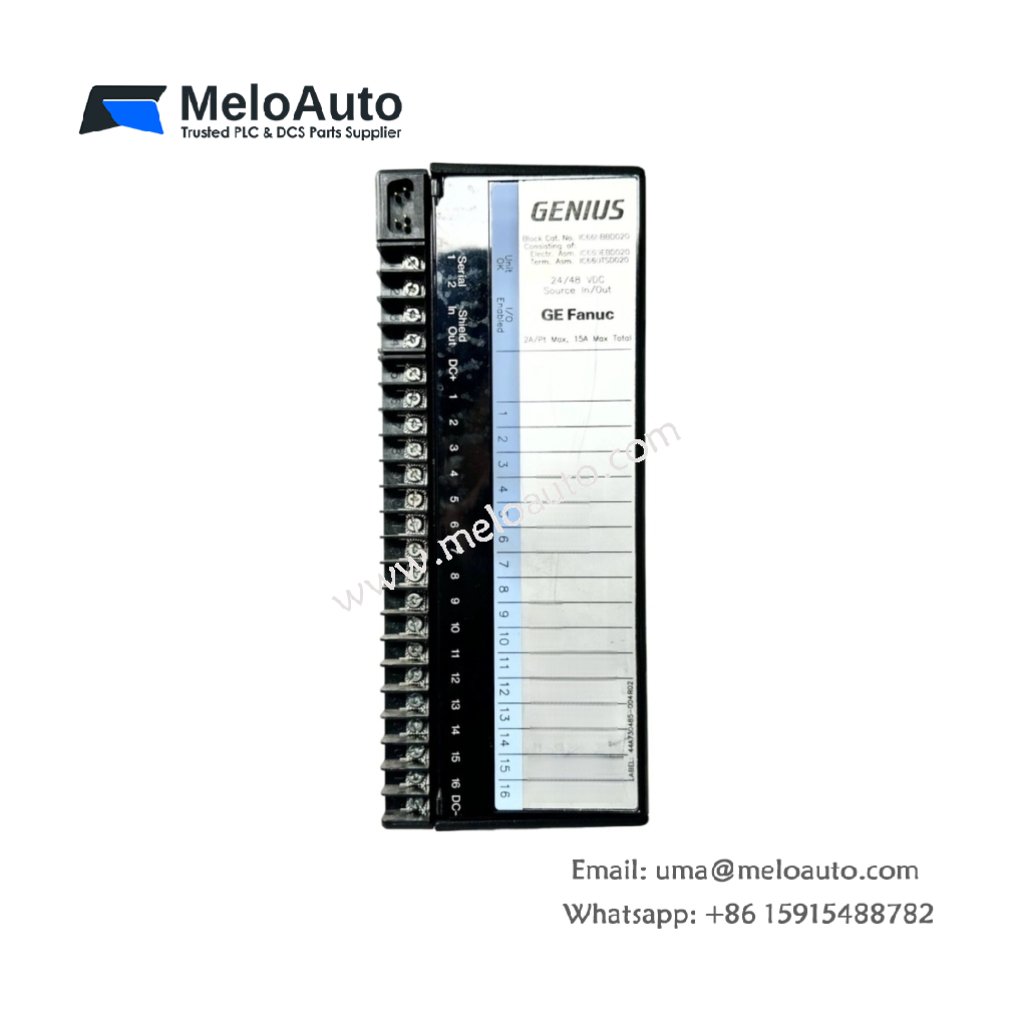

GE IC660BBD020 16-Channel Source I/O Block

Overview

The GE IC660BBD020 is a 16-channel Source I/O block designed for the Genius I/O system, previously manufactured by GE Fanuc and now under Emerson Automation. This module offers flexibility by allowing each of its channels to be independently configured for either input or output. It accepts and delivers 24 VDC / 48 VDC signals, which makes it compatible with various industrial devices, including 3-wire sensors and electromechanical relays. By supporting Genius Protocol, the module operates seamlessly as a stand-alone Remote I/O module, offering efficient data management for control systems.

Key Features

16 Configurable I/O Channels: The IC660BBD020 features 16 I/O points, each of which can be set up as an input or output. This flexibility allows you to adapt the module to different system requirements and configurations.
Wide Voltage Range: This I/O block supports 24 VDC and 48 VDC signals, with a nominal operating voltage of 24 VDC / 48 VDC. It works within an operating voltage range of 18-56 VDC, making it suitable for diverse automation applications.
Fast Response Time: With an input response time of 1.7 ms (plus configurable filter) and an output response time of 1.0 ms, the module ensures quick data updates. This speed is critical in time-sensitive control systems.
High Compatibility: The IC660BBD020 is fully compatible with 90-30 PLCs, allowing for seamless integration into your existing control systems. This ensures a smooth and reliable setup with minimal downtime.
Reliable Communication: Featuring Genius Protocol support, the module can function as a Remote I/O device, enabling smooth communication across the control network for optimized data transfer.
Effective Isolation: The module offers 1500 V isolation for one minute, providing robust protection against electrical surges and interference, thus enhancing system stability and reliability.
Wide Operating Temperature: Designed for industrial environments, the IC660BBD020 operates effectively in a temperature range of 0°C to 60°C.
Flexible Input Filtering: The IC660BBD020 allows you to configure the input filter time between 5 ms and 100 ms, optimizing performance for various industrial conditions.

Technical Specifications

Parameter	Specification
Model	IC660BBD020
Product Type	Source Block I/O
Product Line	Genius I-O
Number of Channels	16
Compatibility	90-30 PLCs
Input/Output Configuration	Configurable
Nominal Voltage	24 VDC / 48 VDC
Operating Voltage Range	18-56 VDC
Load Current	2 Amperes per point
Input Response Time	1.7 ms + configurable filter
Output Response Time	1.0 ms
Input Filter Time	5-100 ms
Block-to-Block Isolation	1500V for one minute
Temperature Range	0°C to 60°C
Weight	4.19 lbs (1.90 kg)
Communication Protocol	Genius Protocol
Points per Common	One group of 16
Input Impedance	1.7 ms with filter

Applications

The GE IC660BBD020 excels in various industrial applications, such as process control, automation systems, and machine monitoring. With its flexible I/O configuration and support for real-time data handling, this module is ideal for systems that require quick responses and high precision. Its compatibility with 90-30 PLCs ensures smooth integration and operation within your automation environment.

Manufacturer

Manufactured by GE Fanuc, now a part of Emerson Automation, the IC660BBD020 is an integral part of the Genius I/O product family. GE Fanuc is well-known for its innovation and high-quality components, which continue to meet the demanding needs of modern industrial systems.
