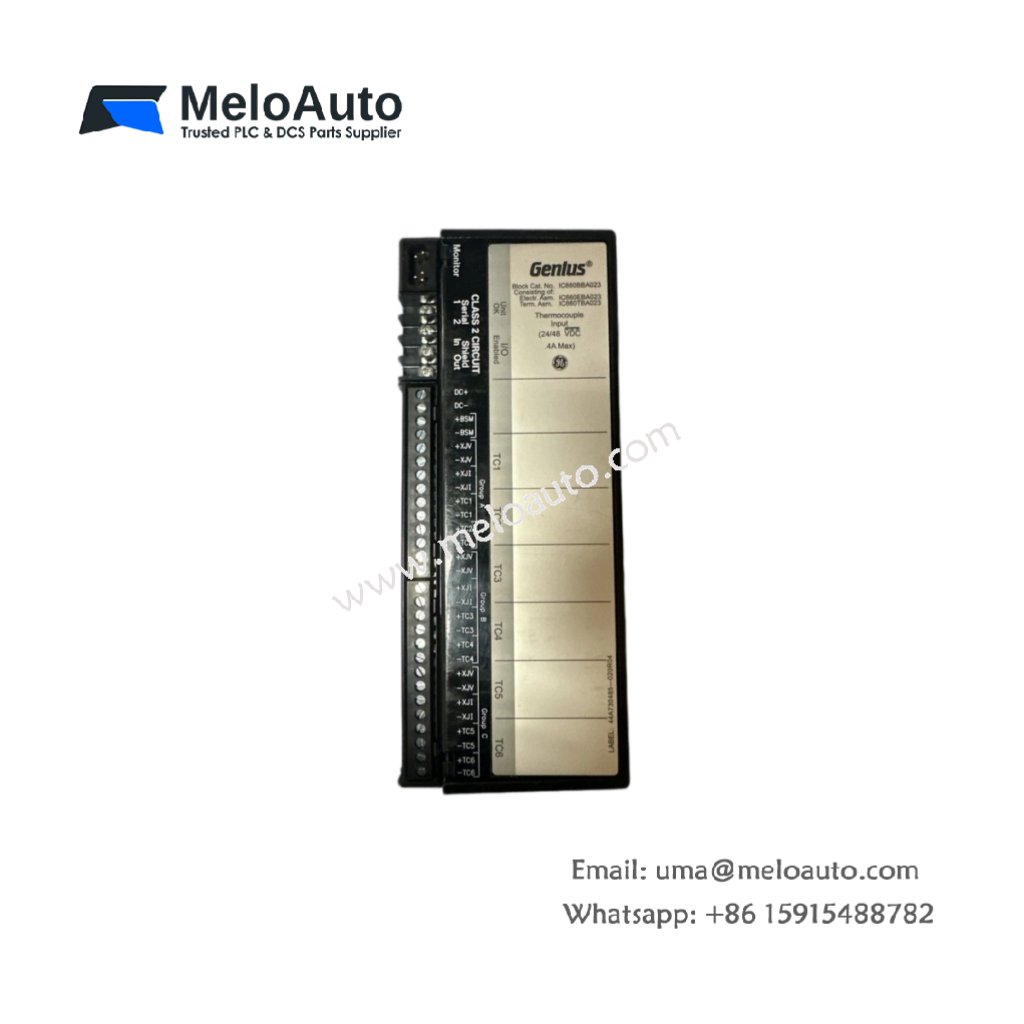

GE IC660BBA023: Genius Block Thermocouple Input Module

Temperature measurement demands precision and reliability in industrial automation. The GE IC660BBA023 Genius Block thermocouple input module delivers this critical capability. This module accepts thermocouple inputs from six independent channels. It provides accurate temperature data to the Genius I/O network.

Technical Architecture and Specifications

This module features a rugged block-style housing suitable for field installation. Its dimensions measure 15.2 cm in width and 11.4 cm in height. The GE IC660BBA023 weighs approximately 1.1 kilograms for secure mounting. It accepts input power from 24 V DC or 48 V DC sources. This dual voltage flexibility accommodates various power distribution schemes.

The internal assembly contains a single integrated circuit board with six independent input channels. Engineers will note the grouping of these channels into three pairs. Each group contains two circuits that share common isolation. This design simplifies wiring for thermocouples in similar temperature zones.

Thermocouple Compatibility

The GE IC660BBA023 supports a wide range of thermocouple types for diverse applications. It accepts Type J, K, T, E, B, R, S, and N thermocouples. Each channel provides cold junction compensation for accurate temperature readings. For field wiring, it utilizes screw terminal blocks that accept AWG 14 to 22 gauge conductors. You can explore similar industrial input solutions for reference.

Isolation and System Integration

The GE IC660BBA023 provides isolation between channel groups for signal integrity. Each group of two channels shares isolation from other groups. This configuration prevents ground loops from affecting measurement accuracy. Status LEDs indicate channel activity, network communication, and module health clearly. Field technicians can verify input signals without specialized diagnostic equipment. The module connects directly to the Genius I/O network for seamless integration.
