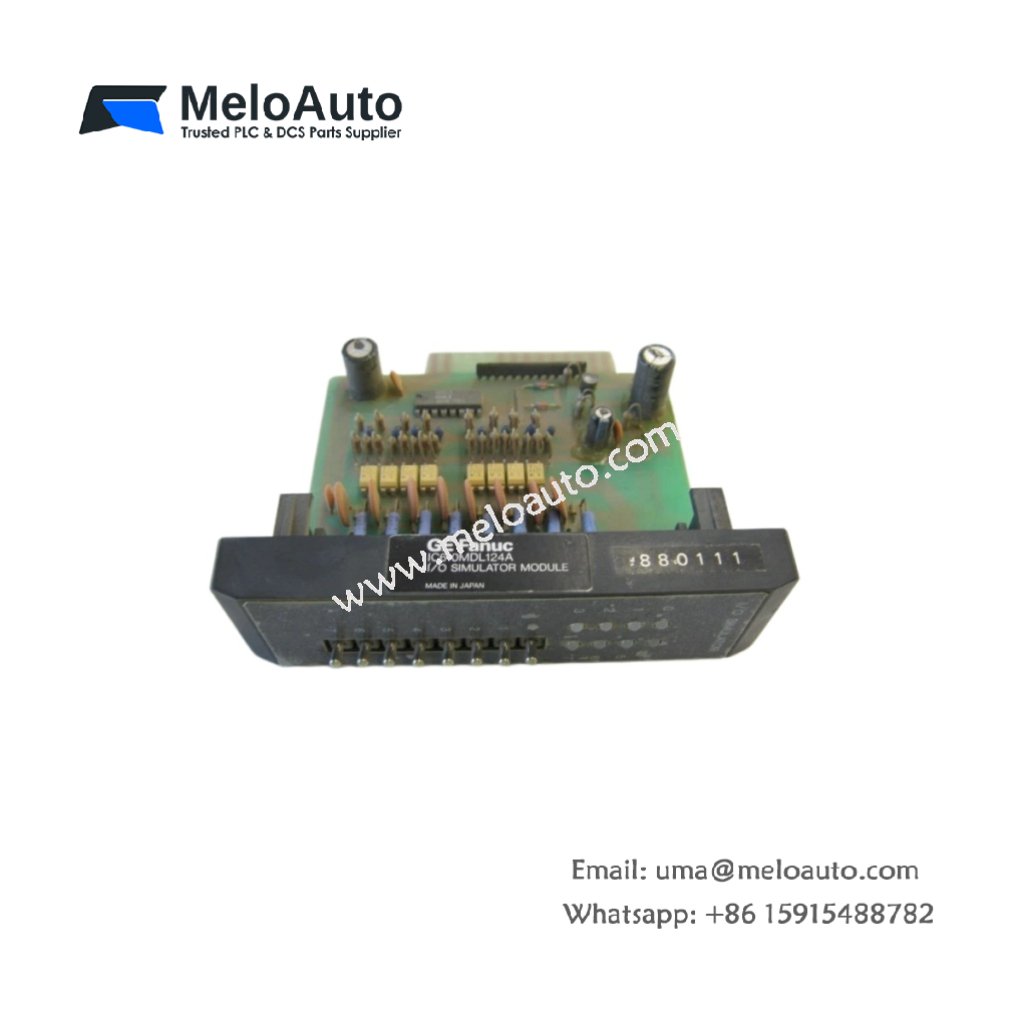

GE IC610MDL124A Series 1 I/O Simulator

System testing requires reliable simulation tools for validating I/O configurations. The GE IC610MDL124A Series 1 I/O simulator provides this essential testing capability. This module simulates input signals for Series 1 PLC systems. It enables thorough system verification before field device connection.

Technical Architecture and Specifications

This simulator module features a standard Series 1 form factor for rack mounting. Its dimensions measure 10.2 cm in width and 11.4 cm in height. The GE IC610MDL124A weighs approximately 0.3 kilograms for secure installation. It interfaces with the system backplane via a card-edge connector assembly. This connector provides power and communication to the simulation circuits.

The internal assembly contains a single integrated circuit board with switching components. Engineers will note the presence of discrete switches for each simulated input channel. These switches allow manual toggling of input states for testing purposes. The module draws 5 V DC power from the backplane for its internal circuits. It requires no external power source for operation.

Simulation Capabilities

The GE IC610MDL124A provides simulation for up to 16 discrete input channels. Each channel features a dedicated toggle switch for state selection. For visual feedback, it includes LED indicators that display the simulated input status. The module connects directly to the PLC backplane without additional wiring. Status indicators show module power and channel activity at a glance. You can explore similar industrial testing solutions here for reference.

Specification	Detail
Model	IC610MDL124A
Manufacturer	GE
Product Line	Series 1
Dimensions (W x H)	10.2 cm x 11.4 cm
Weight	0.3 kg
Simulated Channels	16 Discrete Inputs
Channel Control	Manual Toggle Switches
Status Indication	LED per Channel
Backplane Power	5 V DC
External Power	Not Required
Mounting	Series 1 Rack

System Integration and Reliability

The GE IC610MDL124A operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. The manual switches provide durable operation for repeated testing cycles. Field technicians can simulate input conditions without external signal generators. This simulator eliminates the need for temporary wiring during system commissioning. Maintenance personnel can verify PLC logic thoroughly before connecting actual field devices.
