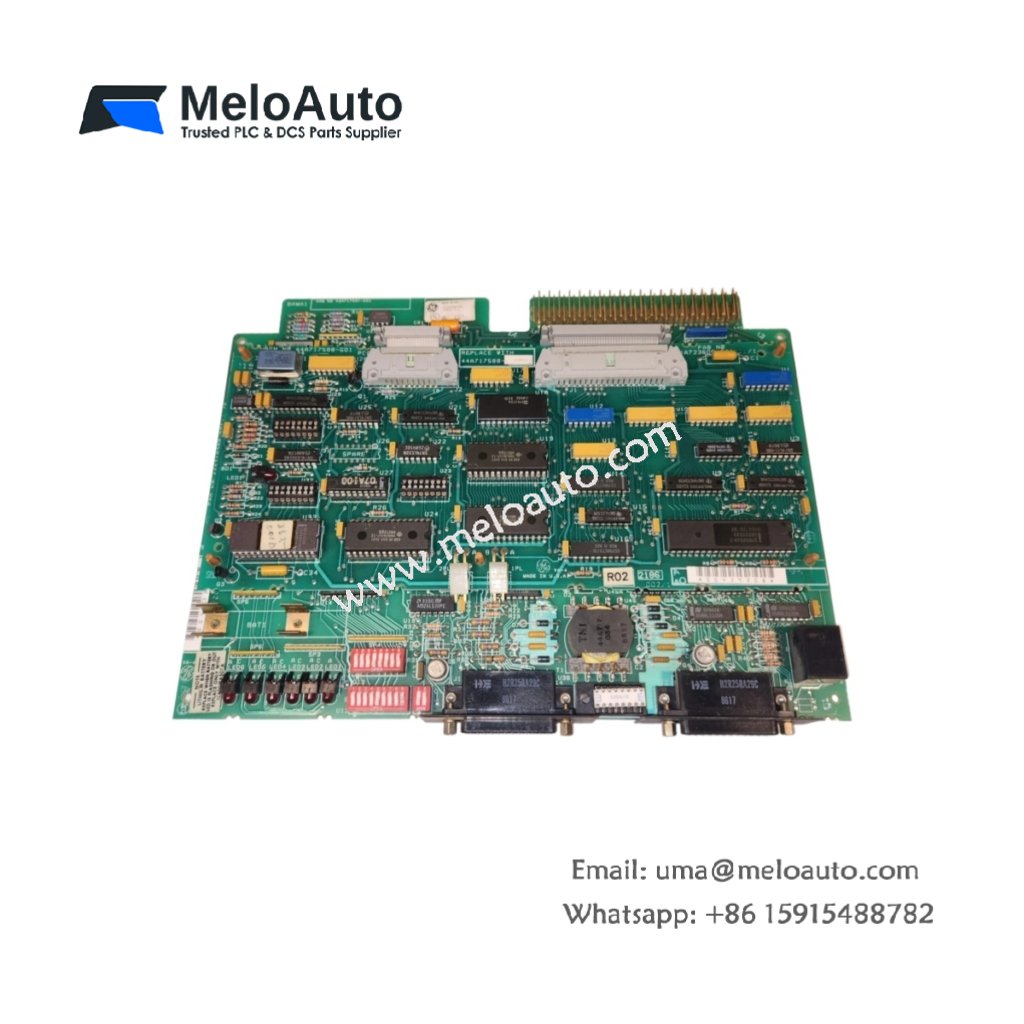

GE IC600YB945 20K ASCII-Basic Module

Programmable logic controllers require specialized modules for text and string handling. The GE IC600YB945 20K ASCII-Basic module delivers this essential functionality for Series 600 systems. This module provides ASCII string processing and communication capabilities. It enables barcode readers, printers, and operator interface terminals to connect seamlessly.

Technical Architecture and Specifications

This module features a standard Series 600 form factor for rack-based installation. Its dimensions measure 10.2 cm in width and 11.4 cm in height. The GE IC600YB945 weighs approximately 0.3 kilograms for secure mounting. It interfaces with the system backplane via a card-edge connector assembly. This connector provides power and communication to the module.

The internal assembly contains a single integrated circuit board with dedicated processors. Engineers will note the inclusion of 20K bytes of user memory for program storage. This memory stores ASCII-Basic programs, string data, and communication buffers. The module draws 5 V DC power from the backplane for its internal circuits. It also requires 24 V DC for serial communication interfaces.

Communication and Programming Features

The GE IC600YB945 provides two serial communication ports for external device connectivity. Each port supports RS-232 and RS-422 configurations through jumper settings. The ASCII-Basic programming language allows custom string manipulation routines. For field connections, it utilizes a front-facing terminal block with screw clamp terminals. Status indicators display communication activity, program execution, and module health clearly. You can explore similar industrial communication solutions for reference.

Specification	Detail
Model	IC600YB945
Manufacturer	GE
Product Line	Series 600
Dimensions (W x H)	10.2 cm x 11.4 cm
Weight	0.3 kg
User Memory	20K Bytes
Programming Language	ASCII-Basic
Serial Ports	2 (RS-232/RS-422 Configurable)
Backplane Power	5 V DC
External Power	24 V DC
Terminal Type	Screw Clamp

System Integration and Reliability

The GE IC600YB945 operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. The module supports concurrent execution with the main PLC processor. This parallel operation handles string processing without affecting scan times. Maintenance personnel can upload and download programs through the serial ports. The module retains program data during power loss without battery backup.
