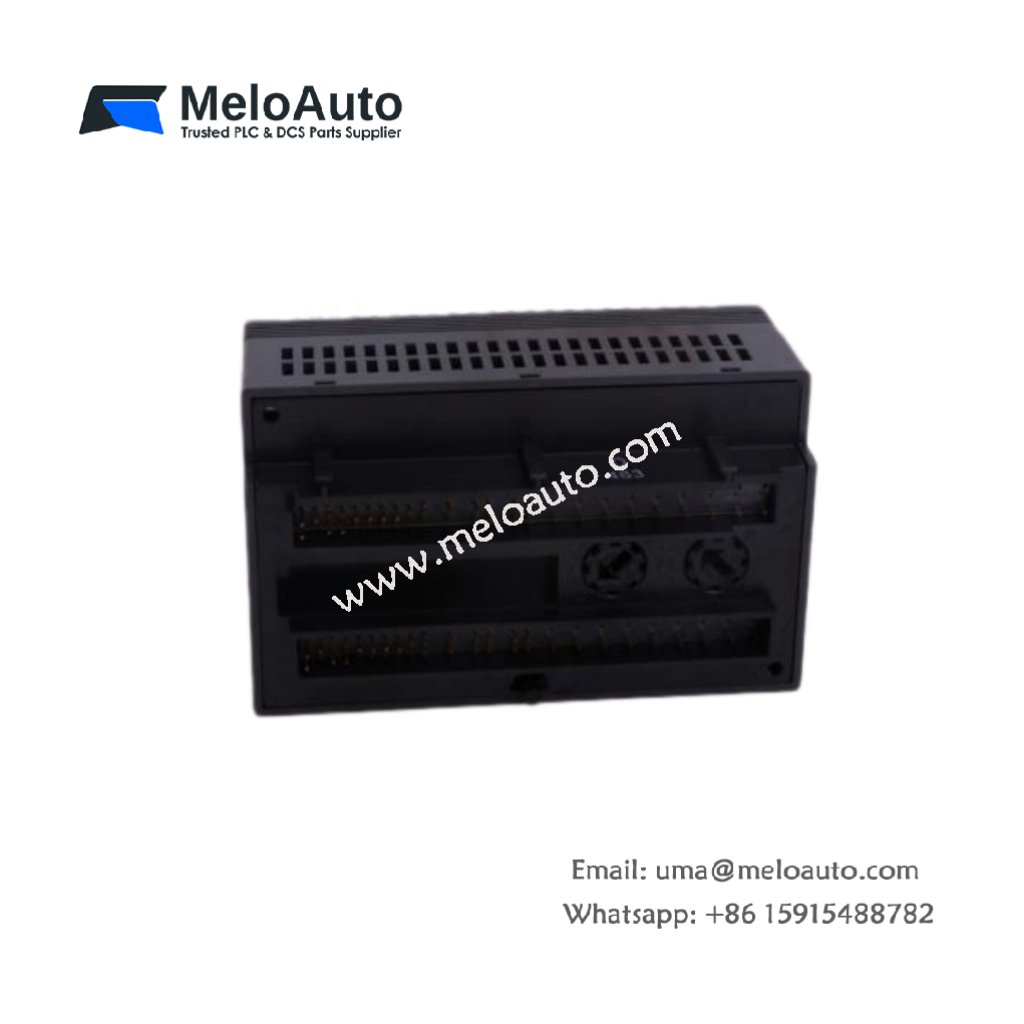

GE IC200PBI001-KG VersaMax Profibus Network Interface Unit

Overview

The GE IC200PBI001-KG is a powerful VersaMax series Network Interface Unit (NIU) that ensures reliable communication in industrial automation networks. It supports seamless data transfer over Profibus DP, making it an essential component for effective control and monitoring in diverse applications. With its robust features, the IC200PBI001-KG guarantees smooth network operation and high performance.

Key Features

Automatic Data Rate Detection: The IC200PBI001-KG supports data rates ranging from 9.6 Kbaud to 12 Mbaud. It automatically adjusts to the optimal rate for efficient communication.
Extensive I/O Data Handling: This unit accommodates up to 375 bytes of I/O data. It can manage up to 244 bytes for either inputs or outputs, offering significant flexibility.
Compact and Efficient Design: Weighing only 0.31 lbs (0.14 kg), the IC200PBI001-KG integrates easily into your control system without adding unnecessary weight.
User Diagnostics for Troubleshooting: It provides 2 bytes of status/control and 5 bytes for PROFIBUS diagnostics, ensuring quick identification of any issues.
Scalable Configuration: Each unit can support up to 8 modules per NIU or station, making it scalable to meet growing automation needs.

Technical Specifications

Parameter	Specification
Model Number	IC200PBI001-KG
Manufacturer	GE Fanuc Emerson
Product Type	Network Interface Unit (NIU)
Product Line	VersaMax
Weight	0.31 lbs (0.14 kg)
Network Data Rate	9.6 Kbaud to 12 Mbaud, auto-detected
Max I/O Data	375 bytes total (up to 244 bytes input/output)
User Diagnostic Data	2 bytes of status/control, 5 bytes for PROFIBUS diagnostics
Number of Modules per NIU	8 per station
Power Consumption	5 V @ 250 mA; 3.3 V @ 10 mA (backplane supplied)
Connector	9-pin D-sub (Profibus DP)
Transmission Media	Twisted pair cable
Transmission Cable Shielded	Yes
Network Topology	Linear bus, terminated at both ends (stubs supported)
Interface Distance	100 to 1200 meters (depends on baud rate)
Redundancy	Not supported

Advantages

Versatile Compatibility: The IC200PBI001-KG easily integrates with the VersaMax system. This makes it perfect for a broad range of industrial network needs.
Efficient Data Handling: With a total of 375 bytes of I/O data, this unit efficiently handles input and output data, enabling smoother communication.
Flexible Configuration: With the ability to support up to 8 modules per NIU, the IC200PBI001-KG offers flexibility for system expansion.
Reliable Communication: Using shielded twisted pair cable for transmission, the IC200PBI001-KG ensures strong, stable communication.
Space-Saving and Lightweight: Its compact and light design allows for easy integration into your existing control systems without taking up much space.

Applications

The GE IC200PBI001-KG is designed for seamless integration into industrial networks where Profibus DP communication is critical. It is ideal for use in factory automation, process control, and other industrial automation systems that demand reliable communication.
