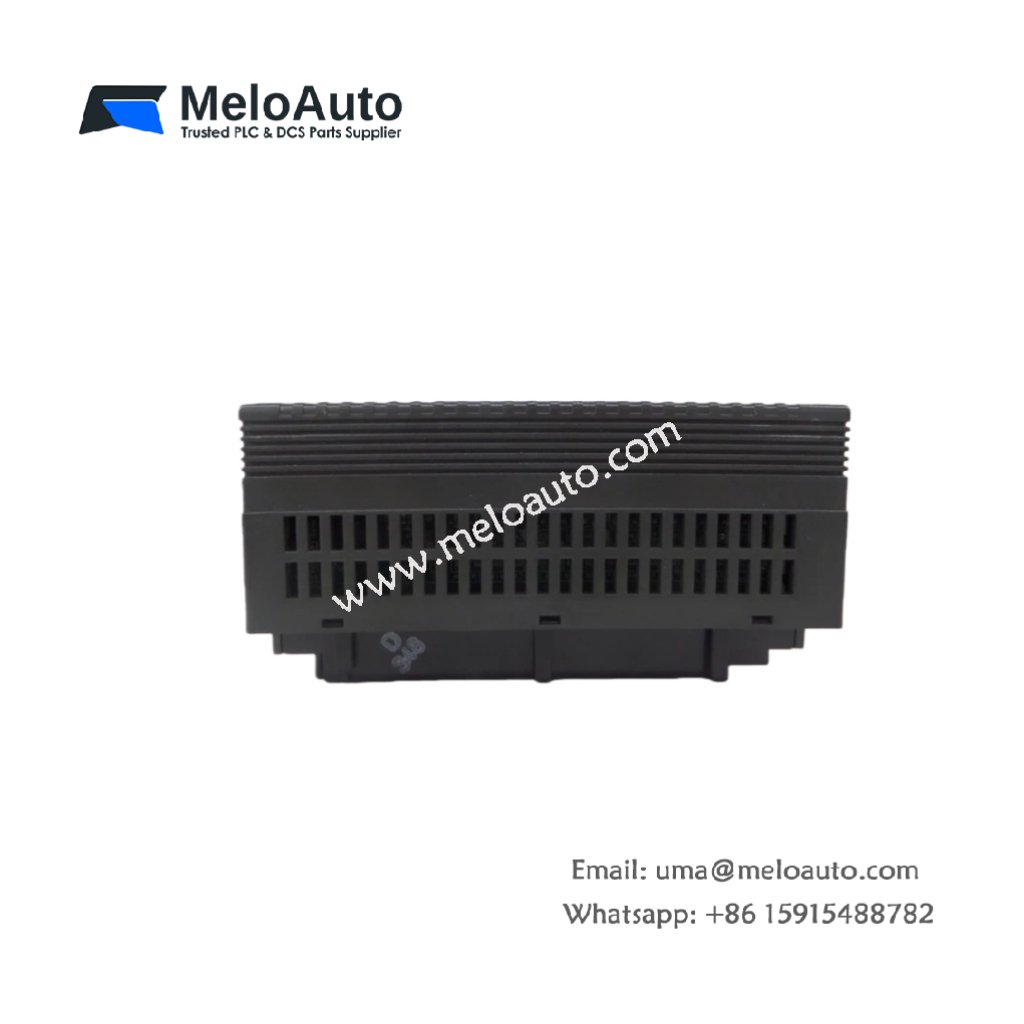

GE IC200MDL750 32-Point Discrete Output Module for VersaMax I/O Series

The IC200MDL750 is an efficient 32-point discrete output module from the VersaMax I/O series, previously manufactured by GE Intelligent Platforms and now under Emerson Automation. This module offers excellent performance, featuring 32 output channels organized into two groups, and ensures reliable operation in diverse industrial applications.

Key Features of IC200MDL750

The IC200MDL750 module delivers precise control and high reliability for your VersaMax I/O system. Here are its key features:

• Weight: 0.31 lbs (0.14 kg)
• Product Type: Discrete Output Module
• Product Line: VersaMax
• Output Channels: 32
• Output Voltage Range: +10.2V to +30VDC
• Current per Point: 0.5 Amperes
• Input Groups: Two (2) groups of 16 channels each
• Backplane Current Draw: 90 mA

In-Depth Look at IC200MDL750

The IC200MDL750 is designed to support 32 discrete output channels, which are grouped into two sections of 16 channels each. This configuration makes the module versatile and adaptable for a wide range of automation needs.

Each output channel is designed for positive logic wiring, which simplifies installation and ensures compatibility across various automation devices. It supports a 12/24 VDC nominal output, with an adjustable voltage range of +10.2V to +30VDC. Additionally, each output point handles a current of 0.5 Amperes, providing reliable power for controlling relays and other industrial equipment.

With a backplane current draw of only 90 mA, the IC200MDL750 minimizes power consumption, helping optimize the overall system efficiency. Weighing just 0.31 lbs (0.14 kg), it is compact and lightweight, making it easy to install in tight spaces within your VersaMax I/O system.

This module has been engineered for high reliability and long-term durability, ensuring consistent performance in demanding industrial environments. Whether you’re handling simple on/off switches or complex control systems, the IC200MDL750 can meet your operational requirements.

Technical Specifications

Why Choose the IC200MDL750?

There are several reasons to choose the IC200MDL750 for your VersaMax I/O system. With its 32 discrete output channels and the ability to handle 0.5 A per point, this module provides excellent performance for a range of industrial applications. The output voltage range of +10.2V to +30VDC ensures compatibility with many devices.

Moreover, its backplane current draw of 90 mA contributes to a more efficient system, reducing unnecessary energy consumption. The IC200MDL750 is also easy to install and maintain, thanks to its compact design and reliable features.

By selecting this output module, you gain a highly efficient and reliable component that can help optimize your automation systems. Whether you need to control simple relays or manage larger, more complex systems, the IC200MDL750 offers the flexibility and performance you require.
