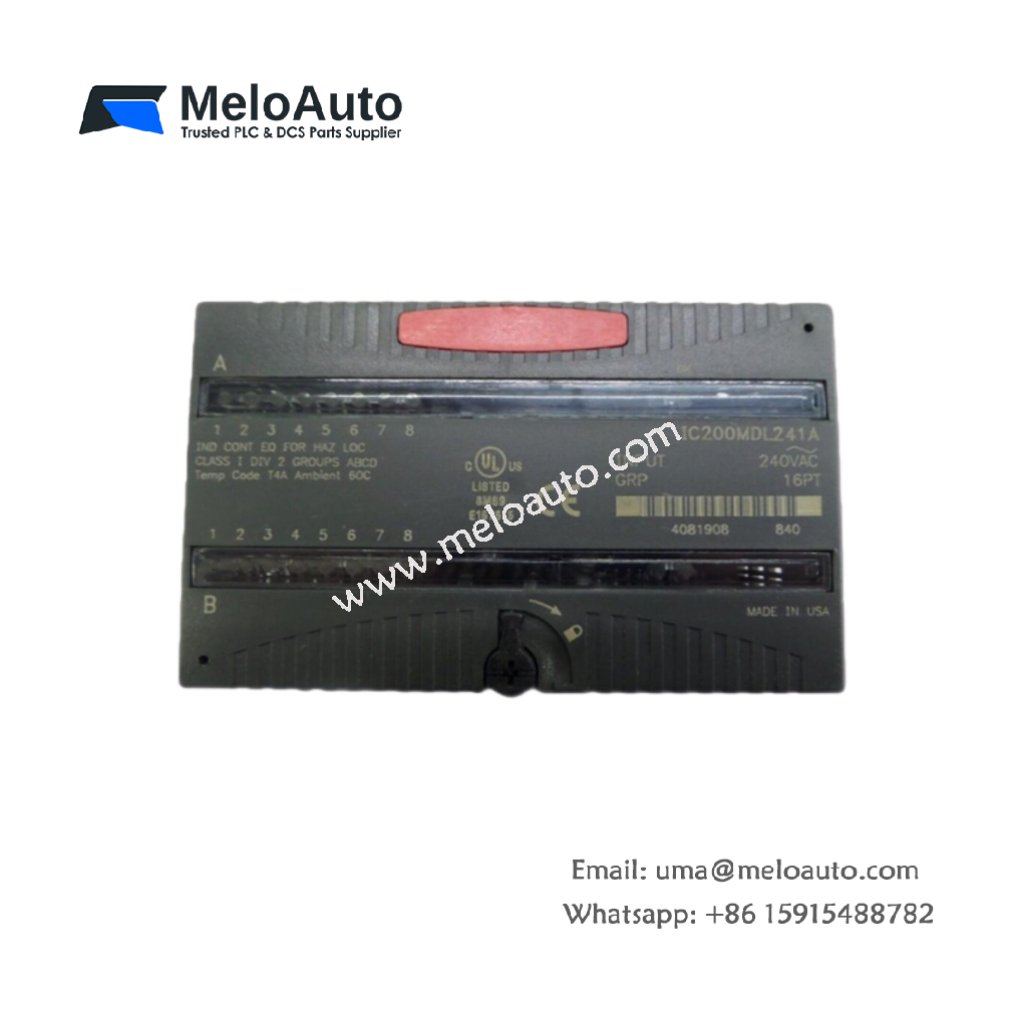

GE IC200MDL241 Discrete Input Module

The GE IC200MDL241 Discrete Input Module is designed for the Versamax I/O and control system. This module provides 16 discrete inputs, split into two groups of eight. It operates with a voltage of 240V AC and offers fast response times. The IC200MDL241 is ideal for receiving signals from various input devices such as pushbuttons, sensors, and switches, making it a key component in industrial automation.

Key Features

Model: IC200MDL241
Category: Discrete Input Module
Manufacturer: GE Fanuc (now Emerson Automation)
Product Line: Versamax
Application: Industrial automation for Versamax I/O and control systems.

Technical Specifications

Parameter	Specification
Voltage Input	240V AC
Backplane Current	110mA
Response Time (On)	1 Cycle
Number of Inputs	16 Discrete Inputs
Group Isolation	Yes
Built-in Power	Yes
LED Indicators	16 individual LEDs + 1 backplane LED
Dimensions	110 x 66.8 x 50.0 mm
Weight	0.63 lbs (0.28 kg)
Mounting	DIN Rail-supported I/O carrier base
Wiring Type	Snap-in terminals for simplified field wiring

The IC200MDL241 features 16 discrete inputs, which are divided into two groups of eight. It receives on/off signals from devices like sensors, switches, and pushbuttons, and transmits them as 16-bit discrete input data to the CPU for processing. This enables precise control in industrial automation systems.

This module operates with an input voltage of 240V AC and draws 110mA of current from the backplane. Its fast response time of 1 cycle ensures quick signal processing, making it suitable for real-time applications. The module also features built-in power for additional reliability and easy integration into the Versamax system.

Compact and Reliable Design

The IC200MDL241 is compact in design, measuring just 110 x 66.8 x 50.0 mm. Despite its small footprint, it offers the same flexibility and cost-effectiveness typically found in larger PLC systems. The module is installed on a DIN rail-supported I/O carrier base, which makes installation and wiring easier. Its snap-in terminals simplify field wiring and support hot swapping, ensuring minimal downtime during system maintenance.

GE IC200MDL241 Features Summary

16 discrete inputs: Provides efficient data transfer from input devices to the CPU.
Fast response: 1 cycle maximum response time for real-time control applications.
Easy installation: Snap-in terminals for straightforward field wiring.
Built-in power: For increased reliability and reduced external wiring.
Compact size: Ideal for tight spaces with 110 x 66.8 x 50.0 mm dimensions.

The IC200MDL241 module ensures efficient signal processing in your industrial control systems. Its reliable performance, compact design, and ease of integration make it an excellent choice for Versamax I/O and control applications.
