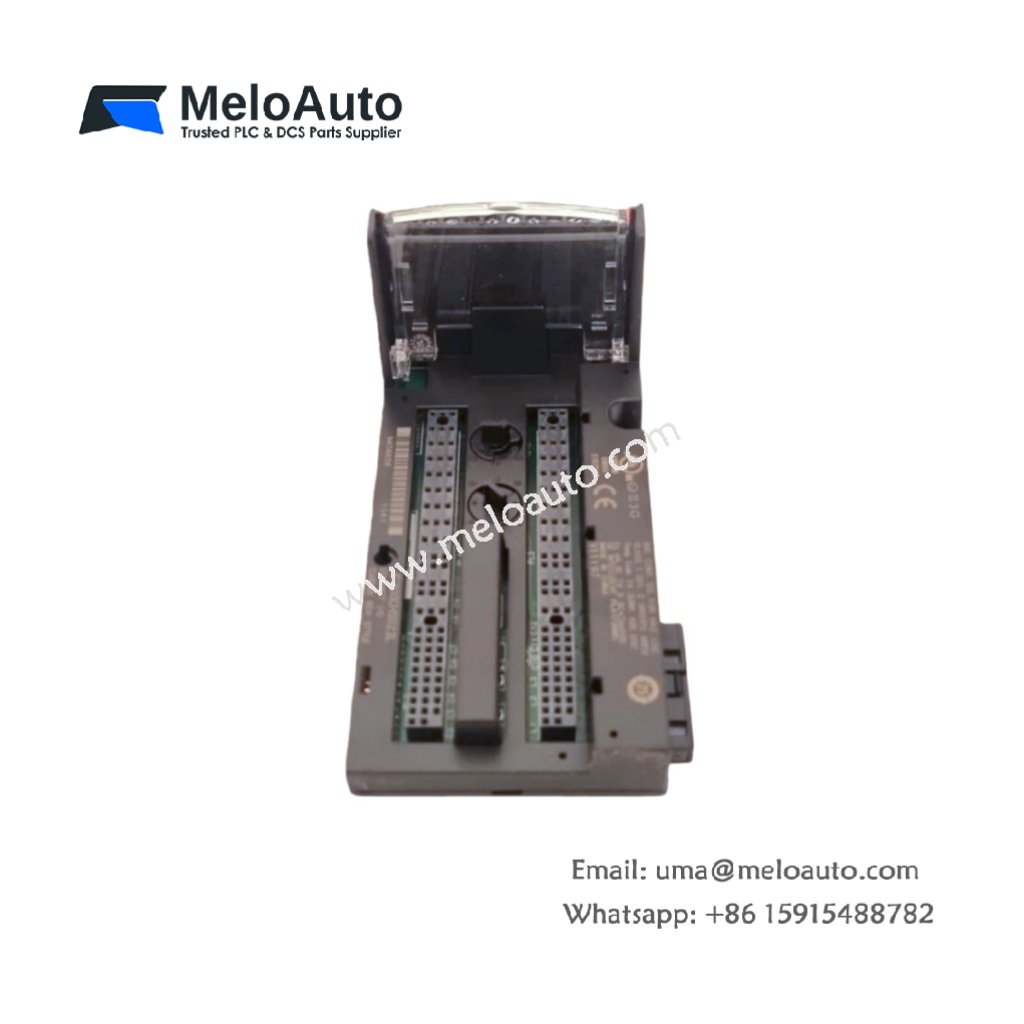

GE IC200CHS022 Compact I/O Carrier Module

The GE IC200CHS022 is a high-performance Compact I/O Carrier Module from the VersaMax product line, now under Emerson Automation. This module, previously manufactured by GE Intelligent Platforms (GE IP), is specifically designed for use in industrial automation systems. It accommodates a variety of input and output devices with its 36 terminal connections, ensuring efficient and flexible connectivity for diverse applications.

Key Features and Technical Specifications

The GE IC200CHS022 is built for robust, versatile use in various industrial environments. Below are the technical details for better understanding of its specifications and capabilities:

Technical Specifications

Specification	Details
Manufacturer	Emerson Automation (formerly GE Fanuc)
Product Type	Compact Box-style I/O Carrier
Product Line	VersaMax
Part Number	IC200CHS022
Weight	0.75 lbs (0.34 kg)
Terminal Count	36 terminals (labeled A1-A18, B1-B18)
Number of Terminal Strips	3 strips
Wire Size Range (Single-Wire)	AWG #14 (max 2.1mm²) to AWG #22 (min 0.36mm²)
Wire Size Range (Two-Wire)	AWG #18 (max 0.86mm²) for two-wire connections
Current Rating per Point	2 Amps
Current Rating per Power Terminal	8 Amps
Voltage Rating	0-264 VAC
Current Rating per Ground Terminal	8 Amps
Maximum Voltage per Point	264 Volts AC
Transient Voltage	Up to 300 VAC
Mounting Options	DIN Rail or Panel Mounting
Compatible Modules	All VersaMax I/O Modules
Enclosure Depth	70 mm
Mounting Clearance	Top/Bottom: 2 inches (5.1 cm), Side: 1 inch (2.54 cm)
Application Areas	Class I, Div. 2, Groups A, B, C, D; Class 1, Zone 2 areas

Description and Functionality

The GE IC200CHS022 serves as a critical component in the VersaMax platform, offering flexibility and ease of use for connecting I/O devices. It is commonly referred to as a terminal base due to its role in providing the necessary wiring termination for input/output devices. The module features 36 screw-type terminals arranged in two groups, A1-A18 and B1-B18, designed for solid or stranded copper wire. It supports AWG #14 to AWG #22 wire sizes for single-wire connections and AWG #18 for two-wire connections. This ensures that the IC200CHS022 accommodates a wide variety of wiring configurations.

Each terminal of the IC200CHS022 is rated for up to 264 VAC and can handle a maximum current of 2 Amps per point. The ground and power terminals support 8 Amps of current, providing reliable performance for high-power systems. In addition, the terminals can withstand transient voltages of up to 300 VAC, ensuring durability and protection in industrial environments.

This Compact I/O Carrier provides the flexibility to replace or service VersaMax I/O modules without needing to disconnect existing wiring. This feature significantly reduces downtime during maintenance or troubleshooting, making it an efficient choice for industrial automation systems.

The IC200CHS022 also offers convenient mounting options, including DIN rail and panel mounting. The module comes with mounting tabs and a card holder that securely holds the VersaMax I/O module in place during operation. The card holder also allows for easy installation, with the ability to hinge down over the terminal wiring, ensuring quick access and securing the module during use.

Applications

The GE IC200CHS022 is ideal for use in various industrial automation environments, including:

Power Generation: Connecting I/O devices to control systems in power plants.
Manufacturing: Providing efficient I/O management for automated production lines.
Oil & Gas: Facilitating data communication in hazardous environments, including Class 1 Div. 2 locations.
Transportation & Utilities: Supporting real-time monitoring and control systems for transportation networks and utility companies.

Conclusion

The GE IC200CHS022 Compact I/O Carrier Module is a highly reliable and versatile component in the VersaMax platform, designed to meet the demanding needs of industrial automation systems. With 36 terminals, flexible wiring options, and a high voltage rating, it provides essential connectivity for a wide range of applications. Its robust construction and easy-to-service design make it a valuable addition to any automation system.
