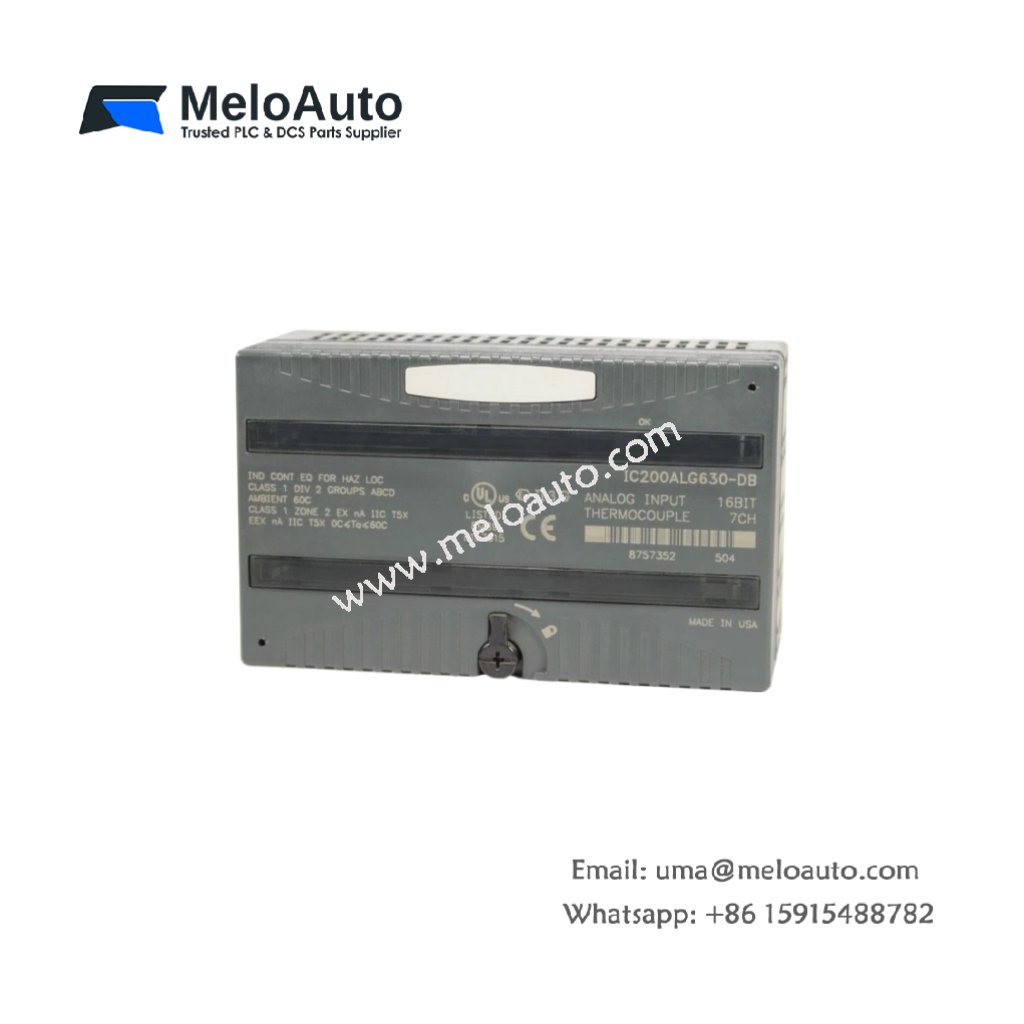

GE IC200ALG630-DB Analog Input Module

The GE IC200ALG630-DB analog input module is designed to provide precise and reliable measurement of thermocouple signals in industrial automation systems. This module offers a 16-bit resolution, ensuring accurate data acquisition for temperature measurement applications. With its robust design and seamless integration, the GE IC200ALG630-DB supports reliable and efficient control in process automation.

Key Features of the GE IC200ALG630-DB Analog Input Module

The GE IC200ALG630-DB is engineered for high performance and reliability in industrial environments. It supports thermocouple inputs, offering high-resolution 16-bit data conversion for accurate temperature measurements. The module is compatible with multiple types of thermocouples, including J, K, T, and E types, providing flexibility for various industrial applications.

Additionally, the module features a user-friendly interface for easy installation and configuration, making it suitable for a wide range of applications. The GE IC200ALG630-DB offers durable construction, ensuring reliable operation even in harsh industrial settings.

Technical Specifications

Feature	Description
Model	GE IC200ALG630-DB
Type	Analog Input Module
Resolution	16-Bit
Input Types	Thermocouple (J, K, T, E Types)
Input Voltage	24 VDC
Current Consumption	80 mA
Dimensions (L x W x H)	100 mm x 85 mm x 30 mm
Weight	0.3 kg
Mounting Type	Rack-mounted
Communication Interface	Screw terminal
Operating Temperature	-20°C to 60°C
Compliance	UL, CE, RoHS Certified

Why Choose the GE IC200ALG630-DB Analog Input Module?

The GE IC200ALG630-DB offers several benefits, making it an ideal choice for industrial applications. First, its 16-bit resolution ensures that temperature readings are accurate and precise. This high resolution makes it suitable for applications requiring detailed temperature monitoring.

Moreover, the GE IC200ALG630-DB supports a wide range of thermocouple types, including J, K, T, and E types, giving you flexibility in choosing the right thermocouple for your application. The module operates with a stable 24 VDC power input, ensuring efficient power usage for long-term operations.

Furthermore, the GE IC200ALG630-DB is designed to withstand a wide range of temperatures, from -20°C to 60°C, making it suitable for a variety of industrial environments. Its compact and rack-mounted design allows for easy installation in control panels.

Applications of the GE IC200ALG630-DB Analog Input Module

The GE IC200ALG630-DB is ideal for several industrial applications, including:

Temperature monitoring and control
Process control systems
Industrial automation and data acquisition
Temperature-sensitive equipment monitoring

Installation and Maintenance

Installing the GE IC200ALG630-DB analog input module is easy, thanks to its compact and rack-mounted design. It integrates seamlessly into existing systems, and the screw terminal interface ensures secure and stable connections.

Maintenance of the GE IC200ALG630-DB is minimal due to its robust design. The module’s high-quality components reduce the need for frequent repairs, ensuring reliable and continuous operation. Its compliance with UL, CE, and RoHS standards guarantees that it meets international safety and environmental regulations.

Conclusion

In conclusion, the GE IC200ALG630-DB analog input module is an excellent choice for accurate and reliable thermocouple signal measurement in industrial applications. Its 16-bit resolution, flexible thermocouple support, and durable design make it an essential component for process control and temperature monitoring systems. The module ensures smooth operation, reducing downtime and improving overall system efficiency.
