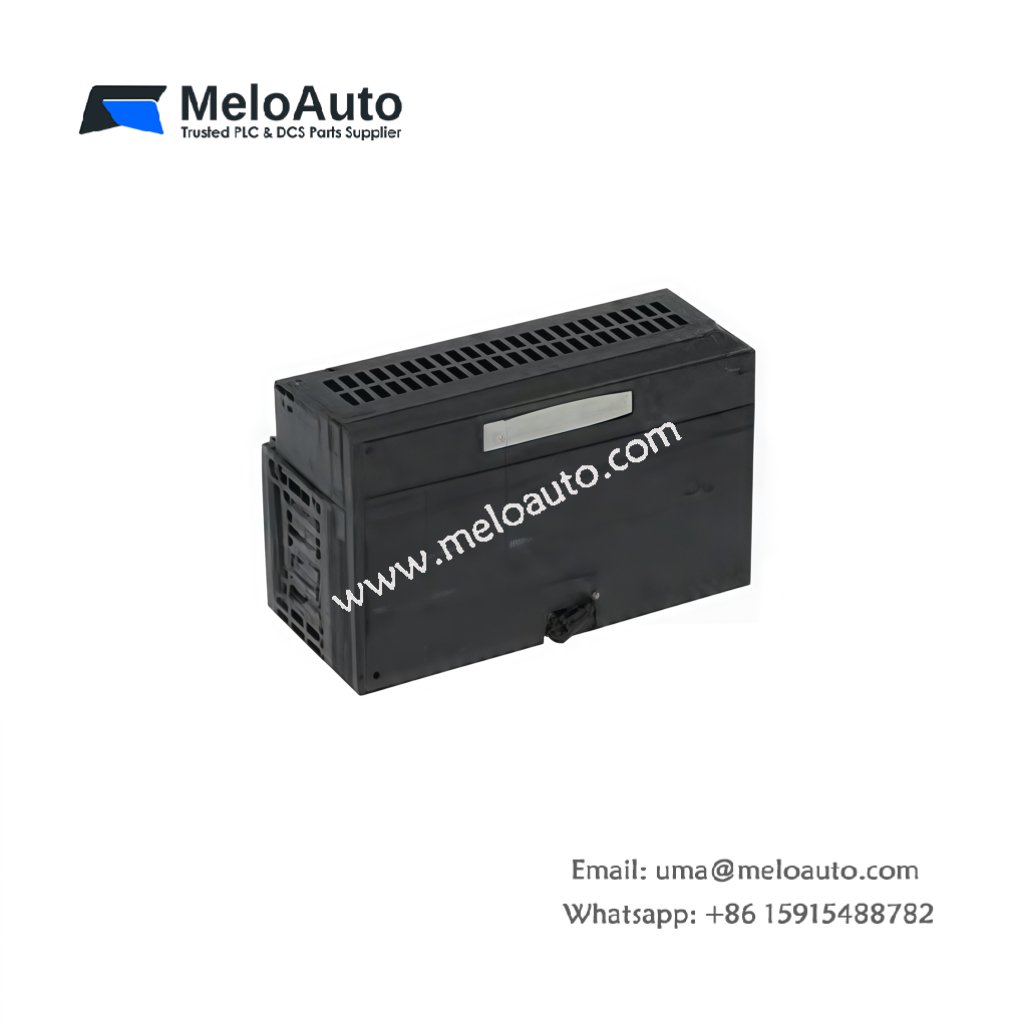

GE IC200ALG331-AA 4-Point Analog Output Module

The GE IC200ALG331-AA is a high-performance 4-Point Analog Voltage / Current Output Module from the VersaMax I/O series, now manufactured by Emerson Automation. It delivers reliable analog output signals, such as 1-20 mA and ±10 VDC, ensuring precise control in demanding industrial automation applications. This module is designed for versatility, offering high accuracy and flexible integration into your control systems.

Key Features of the GE IC200ALG331-AA 4-Point Analog Output Module

The GE IC200ALG331-AA module provides excellent performance, delivering reliable outputs with high accuracy. Thanks to its advanced design, it offers flexibility and ease of integration.

Dimensions: 120mm x 100mm x 25mm (LxWxH), compact for simple installation in control systems.
Weight: 0.69 lbs (0.31 kg), lightweight but robust.
Output Signal: Supports 4-20 mA and ±10 VDC output signals, providing versatility for different applications.
Resolution: The module offers 16-bit digital resolution, ensuring precise signal conversion.
Update Rate: The module features a fast 7.0 ms update rate, ideal for high-speed processes.
Channel Configuration: It has four individually isolated output channels, enabling independent operation.
Software Configurable: The module is fully configurable via software, allowing for tailored operation.
Operating Accuracy: It provides an accuracy of ±0.1% of the full scale at 25°C, ensuring reliable output.

These features make the GE IC200ALG331-AA an excellent choice for users needing high-performance analog output solutions in automation systems.

Technical Specifications

Parameter	Specification
Product Model	GE IC200ALG331-AA
Product Type	4-Point Analog Output Module
Product Line	VersaMax
Weight	0.69 lbs (0.31 kg)
Output Signal	4-20 mA; ±10 VDC
Channel Configuration	Four individually isolated channels
Resolution	16 bits
Voltage Output Range	Current Mode: +1 to 20mA; Voltage Mode: ±10VDC
Analog Resolution	Current Mode: 381 nA nominal; Voltage Mode: 381 µV nominal
Accuracy at 25°C	±0.1% maximum of full scale
Update Rate	7.0 ms

Applications of the GE IC200ALG331-AA Analog Output Module

The GE IC200ALG331-AA is ideal for use in industrial automation systems that require precise and reliable analog output signals. It is especially suitable for applications such as manufacturing processes, machine control, and process automation. The module integrates easily with other VersaMax I/O components, making it an efficient addition to your system.

Moreover, the high-resolution output ensures that the module is perfectly suited for critical tasks where precise control is essential. Whether you’re automating machinery or controlling complex processes, this module offers consistent performance.

Why Choose the GE IC200ALG331-AA Analog Output Module?

High Flexibility: With support for both 4-20 mA and ±10 VDC output signals, the GE IC200ALG331-AA adapts easily to various system requirements.
Fast Response: The 7.0 ms update rate ensures the module responds quickly to changing conditions in the system.
High Accuracy: With ±0.1% accuracy at 25°C, the module delivers reliable performance even in demanding applications.
Efficient Integration: Its compatibility with other VersaMax components simplifies integration and enhances system performance.
Software Configurability: Full software configuration allows users to adjust the module to suit specific operational needs.
