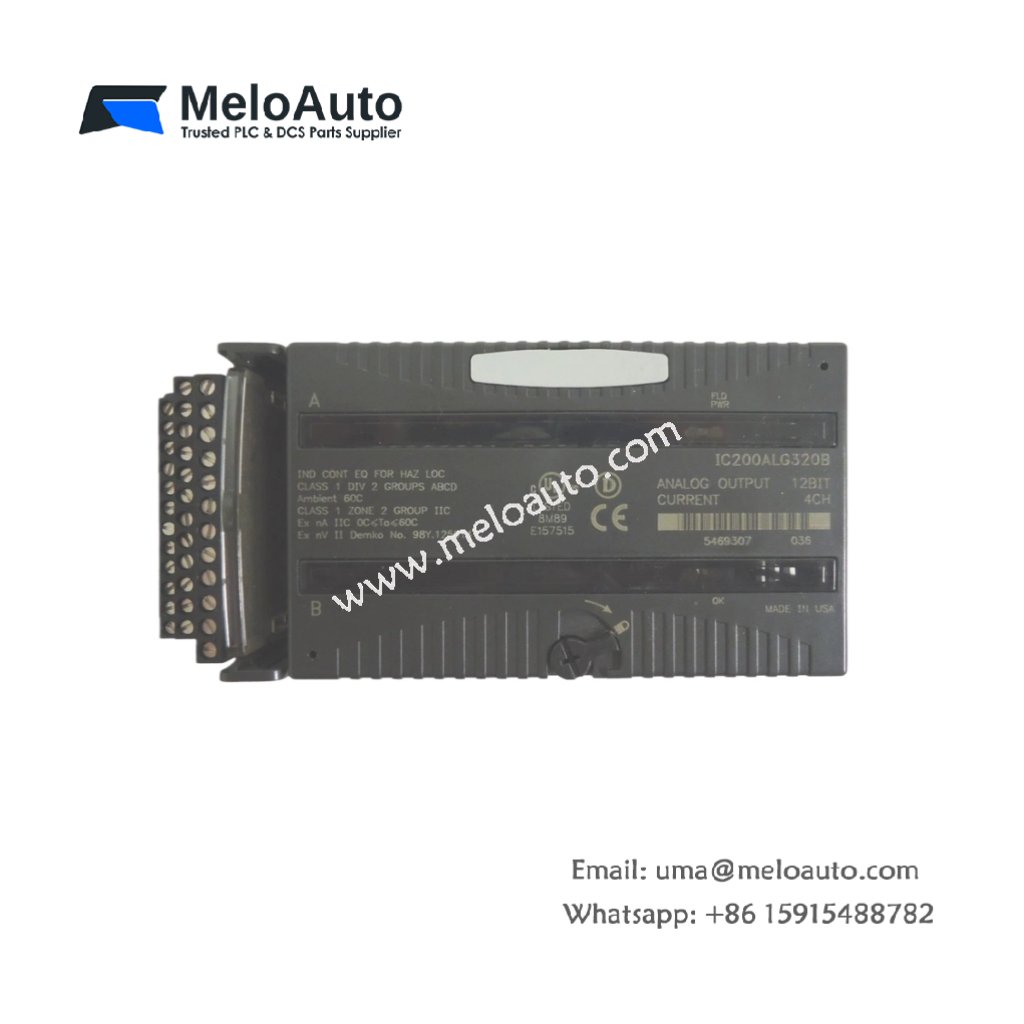

GE IC200ALG320 4-Point Analog Current Output Module

The GE IC200ALG320 is an advanced 4-point analog current output module from the VersaMax I/O series by GE Intelligent Platforms, now part of Emerson Automation. This module offers high-precision current outputs for industrial control systems, ensuring reliable operation and efficient performance in various automation applications.

Key Features of the GE IC200ALG320 Module

• Precise Output: The module provides a resolution of 4 µA, ensuring highly accurate signal generation.
• Wide Output Range: It offers an output current range of 4-20 mA, making it ideal for diverse industrial applications.
• Fast Update Rate: The module features a fast update rate of 0.3 milliseconds, allowing for quick and responsive control.
• Efficient Configuration: The single-ended wiring configuration simplifies installation and enhances reliability.
• Flexible Power Supply: It operates with an external power supply ranging from 18-30 VDC or 9.6 to 15 VDC.
• Low Power Consumption: With a maximum current draw of 240 mA, the module maintains energy efficiency.

Technical Specifications

Product Description

The GE IC200ALG320 provides highly accurate 4-point analog current output for industrial applications, offering reliable performance with a nominal output of 4-20 mA. The module’s 12-bit analog resolution ensures precise control, while its fast 0.3 ms update rate allows real-time responsiveness.

This module features single-ended wiring configuration, simplifying setup and enhancing reliability in demanding environments. It operates with an external power supply range of 18 to 30 VDC or 9.6 to 15 VDC, making it versatile for various control systems.

Additionally, the low current consumption (240 mA max) helps improve energy efficiency. As part of the VersaMax I/O series, the IC200ALG320 is an ideal choice for applications requiring accurate and fast analog current output signals.

Applications

The GE IC200ALG320 is ideal for a wide range of industrial applications, including:

• Actuator control for precise automation.
• Signal conditioning in sensors and instrumentation.
• Real-time monitoring and control in automation systems.
