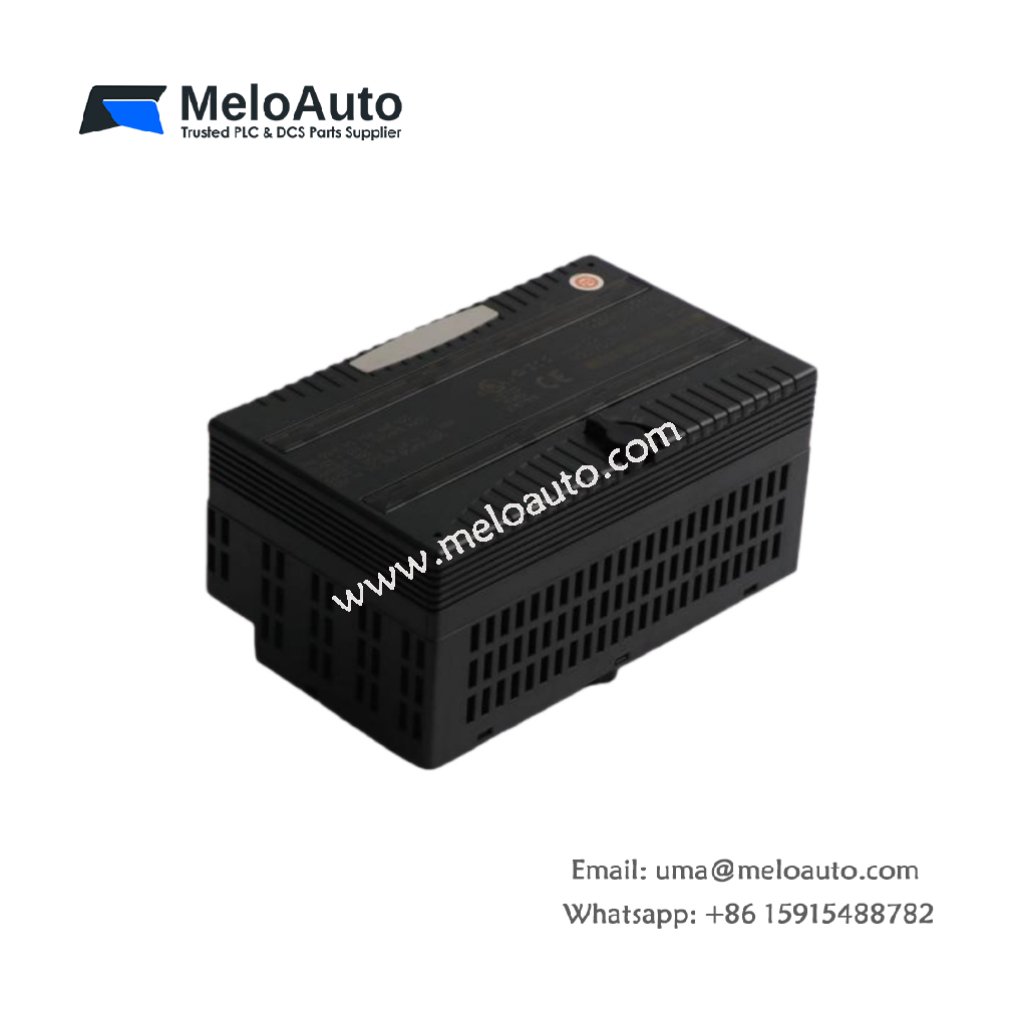

GE IC200ALG260 – VersaMax Analog Input Module

The GE IC200ALG260 is a high-performance analog input module from the VersaMax I/O platform. It offers eight analog input channels, capable of handling both voltage and current signals. This module is designed to convert analog signals into digital data, providing reliable and accurate measurements for industrial automation systems. It features configurable input ranges and a 12-bit resolution, ensuring precise data acquisition for a variety of applications.

Key Features and Functions

• Eight Analog Inputs: The module supports eight input channels, each configurable for either voltage or current signals.
• Analog Signal Conversion: Converts input signals to digital data with 12-bit resolution, ensuring high measurement accuracy.
• Operating Modes: Supports voltage and current input modes, offering flexibility in a wide range of industrial applications.
• Fast Response Time: The module has a response time of 5 milliseconds and an update rate of 0.4 ms, making it ideal for real-time measurements.
• Diagnostics and Indicators: It features built-in diagnostics for internal power loss and includes LED indicators such as “OK” and “INT PWR” for easy status monitoring.
• Impedance: Offers a maximum impedance of 126 kOhms in voltage mode and 200 Ohms in current mode.
• Isolation: The module provides optical isolation with a rating of 250VAC continuous and 1500VAC for 1-minute duration.

Technical Specifications

Product Overview

The GE IC200ALG260 module is designed to provide reliable analog input for industrial automation systems. This module accepts both voltage and current signals with an accuracy of ±0.3% at 25°C, making it suitable for precise control and measurement applications.

With eight channels of analog input, this module is versatile and can handle a wide range of input signal types. Whether you’re dealing with 4-20 mA current signals or unipolar/bipolar voltage signals, the IC200ALG260 can convert these signals into 12-bit digital data for further processing. It operates with a response time of 5 ms and features a 0.4 ms update rate, ensuring fast and efficient data collection.

The module’s built-in diagnostic capabilities provide real-time monitoring of internal power, while the LED indicators offer quick insights into module status. Its optical isolation capabilities ensure that your system remains protected from electrical surges and noise.

Applications

• Industrial Automation: Perfect for systems requiring high-accuracy analog measurements.
• Voltage and Current Signal Processing: Ideal for applications that involve both voltage and current inputs.
• Data Acquisition Systems: Provides precise data conversion for monitoring and control systems.
