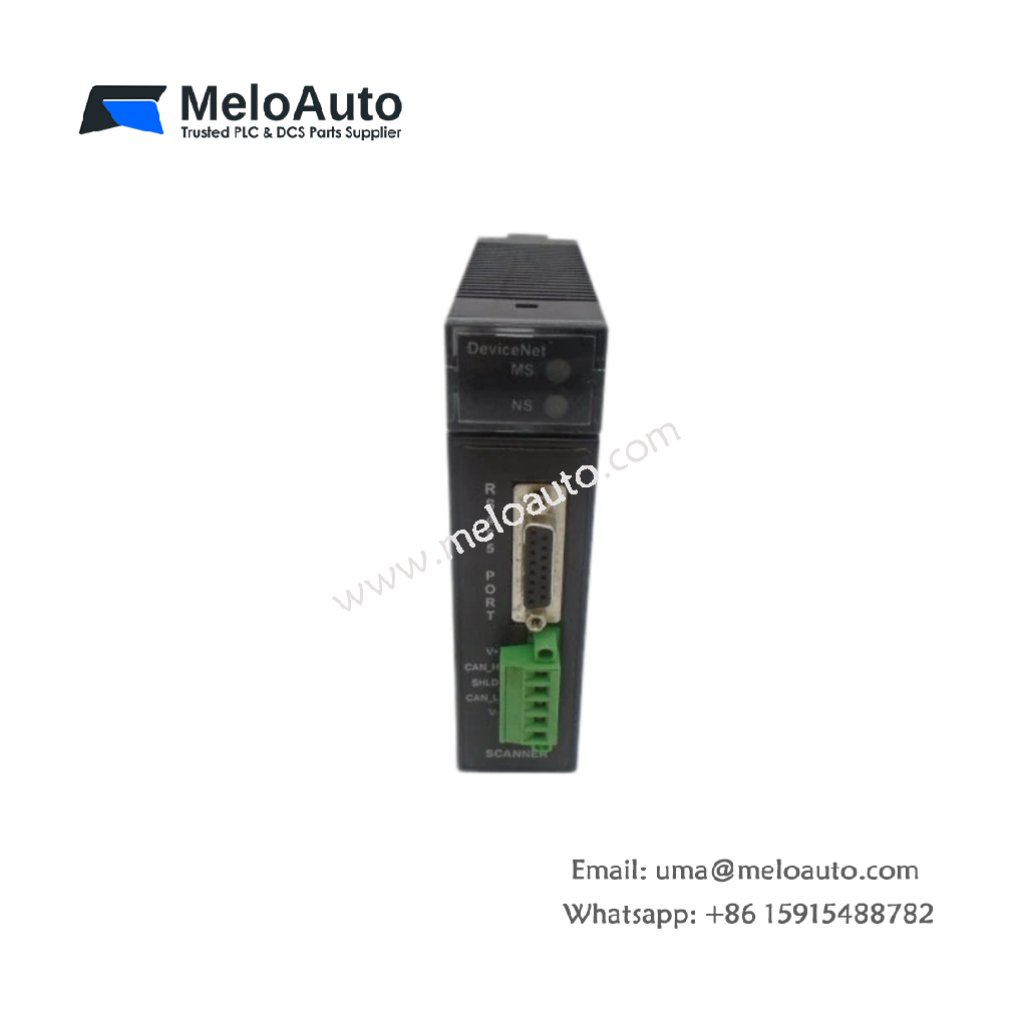

GE HE693DNT250 DeviceNet Master Scanner Module

The GE HE693DNT250 is a high-performance DeviceNet Master Scanner Module designed for the Series 90-30 platform. This module enables seamless communication between the Series 90-30 system and DeviceNet network devices. It operates efficiently with an input voltage range of 11-25 VDC and uses RS-485 for robust data transmission. Ideal for industrial automation, this module supports a wide array of device connections, making it an essential component for optimizing control and data acquisition in distributed systems.

Key Features

Model: GE HE693DNT250
Category: DeviceNet Master Scanner Module
Manufacturer: GE Fanuc Emerson
Series: Series 90-30
Part Number: HE693DNT250
Product Line: Series 90-30

Technical Specifications

The GE HE693DNT250 module integrates advanced features to ensure reliable and efficient operation in industrial networks. Below are its key technical details:

Specification	Details
Input Voltage	11 to 25 VDC
Interface	RS-485
DeviceNet Communication	Master Scanner
Compatibility	Series 90-30 systems
Product Type	DeviceNet Master Scanner Module
Mounting	Installed in Series 90-30 system
Operating Temperature	0°C to 60°C (32°F to 140°F)
Weight	0.45 lbs (0.20 kg)
Power Consumption	Typically 180 mA at 24 VDC
Communication Speed	125 Kbps to 500 Kbps
Dimensions (LxWxH)	4.9 in x 3.5 in x 1.8 in (125mm x 90mm x 46mm)
Device Network Capacity	Supports up to 64 devices

Product Description

The GE HE693DNT250 is an integral DeviceNet Master Scanner Module within the Series 90-30 automation system. It features RS-485 for reliable communication and supports 11 to 25 VDC input voltage, making it adaptable to various industrial environments.

This module can handle up to 64 devices on the DeviceNet network. It offers a communication speed range of 125 Kbps to 500 Kbps, ensuring efficient and quick data transfer. The HE693DNT250 is designed for device scanning and allows the Series 90-30 system to interface seamlessly with connected devices.

Applications and Benefits

Reliable Communication: With RS-485 interface and flexible voltage support, this module ensures robust communication across the network.
Enhanced Flexibility: It supports a wide variety of DeviceNet devices, offering flexibility for expansion and integration in large industrial control systems.
Easy Integration: The module integrates effortlessly into the Series 90-30 system, making it ideal for modern industrial automation setups.
Compact and Durable: With its compact size and robust design, it is built for continuous operation in demanding industrial environments.

Conclusion

The GE HE693DNT250 DeviceNet Master Scanner Module is an essential part of the Series 90-30 platform. It offers superior reliability, scalability, and ease of integration. With its advanced communication features and wide device compatibility, it supports seamless communication within DeviceNet networks, making it a valuable asset in industrial automation.
