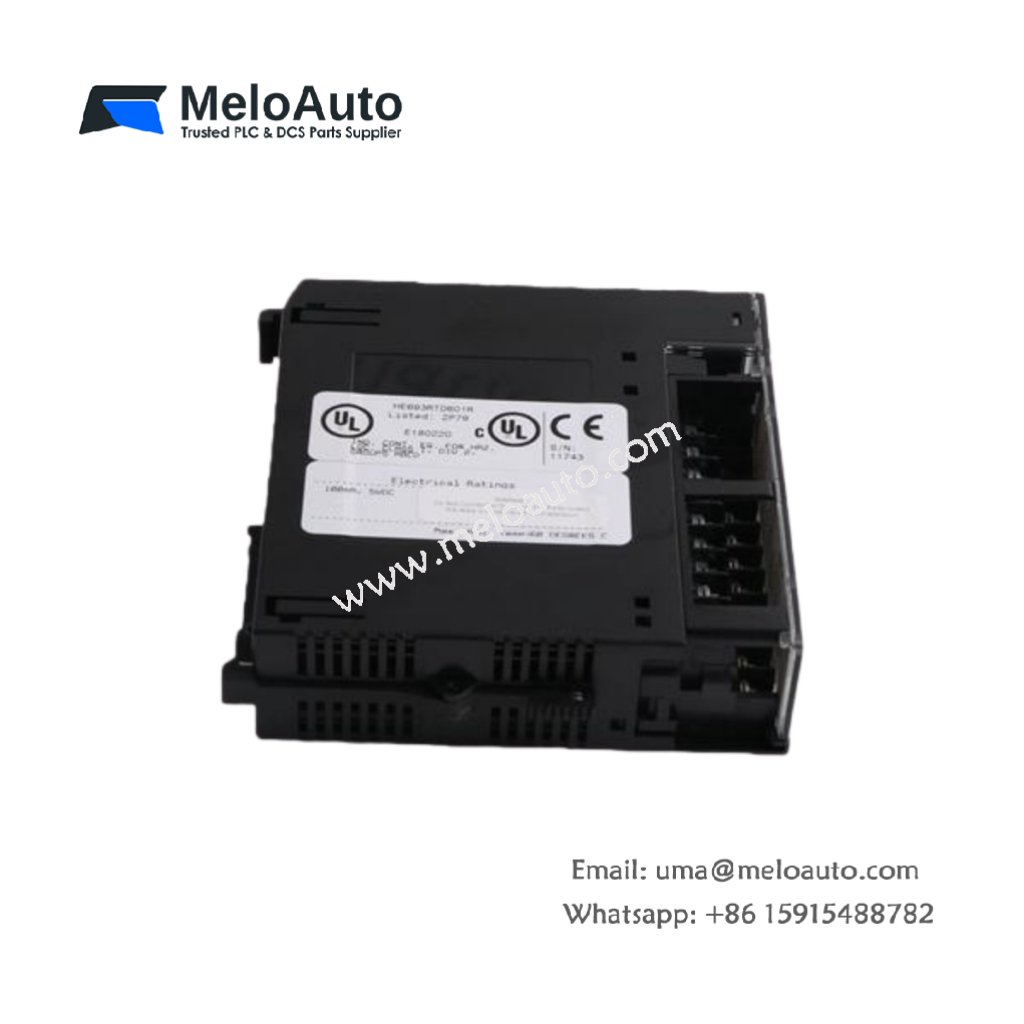

GE HE693ADC409 Input Module

Product Description:

The GE HE693ADC409 is a high-precision input module developed by Horner Electric for use in industrial control systems. As part of the PLC I/O product line, it offers excellent performance in data acquisition and signal monitoring applications. This module can handle input voltages of +/- 250 mV, +/- 500 mV, and +/- 1000 mV, providing the versatility required for a wide range of sensing tasks.

With four channels and an impressive input impedance of over 20 Megohms, the HE693ADC409 ensures minimal loading on the signal source. The module features a resolution of 30µV, 60µV, or 90µV for each input, ensuring high-precision signal representation. This level of accuracy is crucial in real-time monitoring and control processes.

The GE HE693ADC409 also offers exceptional safety features, such as a maximum safe overload of +/- 35 volts DC and a common mode range of +/- 12 volts DC. This module supports A/D conversion via integrating type, delivering precise and reliable data output. Furthermore, it has a module update rate of 35 channels per second, making it suitable for applications requiring fast data processing.

In addition, the HE693ADC409 has an operating temperature range of 0 to 60°C and is designed to withstand relative humidity levels from 5% to 95% non-condensing. These features make it ideal for use in various industrial environments, where durability and reliability are essential.

Key Features:

Wide Input Range: Handles +/- 250 mV, +/- 500 mV, and +/- 1000 mV input voltages for flexibility.
High Resolution: Offers 30µV, 60µV, or 90µV resolution for precise signal measurement.
Four Input Channels: Provides four independent channels for multi-signal processing.
High Input Impedance: Ensures an input impedance greater than 20 Megohms for minimal signal loading.
Safety Features: Supports +/- 35 volts DC overload protection and +/- 12 volts DC common mode range.
Fast Data Processing: Offers a module update rate of 35 channels per second.

Technical Specifications:

Parameter	Specification
Model	GE HE693ADC409 Input Module
Product Type	Input Module
Product Line	PLC I/O
Part Number	HE693ADC409
Weight	0.63 lbs (0.28 kg)
Power Consumption	100 milliamps at 5V DC
Input Range	+/- 250 mV, +/- 500 mV, +/- 1000 mV
Resolution	30µV, 60µV, 90µV
Number of Channels	4
Input Impedance	>20 Megohms
Maximum Safe Overload	+/- 35 volts DC
Common Mode Range	+/- 12 volts DC
A/D Conversion Type	Integrating
Module Update Rate	35 Channels per Second
Temperature Range	0°C to 60°C
Humidity Range	5% to 95% Non-condensing

The GE HE693ADC409 excels in demanding industrial applications that require precision and reliability. Whether used for process control, automation, or data acquisition, this module guarantees accurate signal monitoring and low energy consumption. Additionally, its ability to process 35 channels per second ensures quick and efficient operation, making it an essential tool in any high-performance system.

Why Choose the GE HE693ADC409 Input Module?

Flexible Input Range: The module handles a wide range of input voltages, making it adaptable to various systems.
Precise Signal Monitoring: Choose from multiple resolution options to suit your application needs.
Efficient Design: The module is power-efficient, consuming only 100 milliamps at 5V DC.
Durable in Harsh Environments: With a broad operating temperature range and robust humidity tolerance, the HE693ADC409 performs reliably in challenging industrial conditions.
Fast Data Processing: With an update rate of 35 channels per second, it can handle high-speed signal monitoring efficiently.
