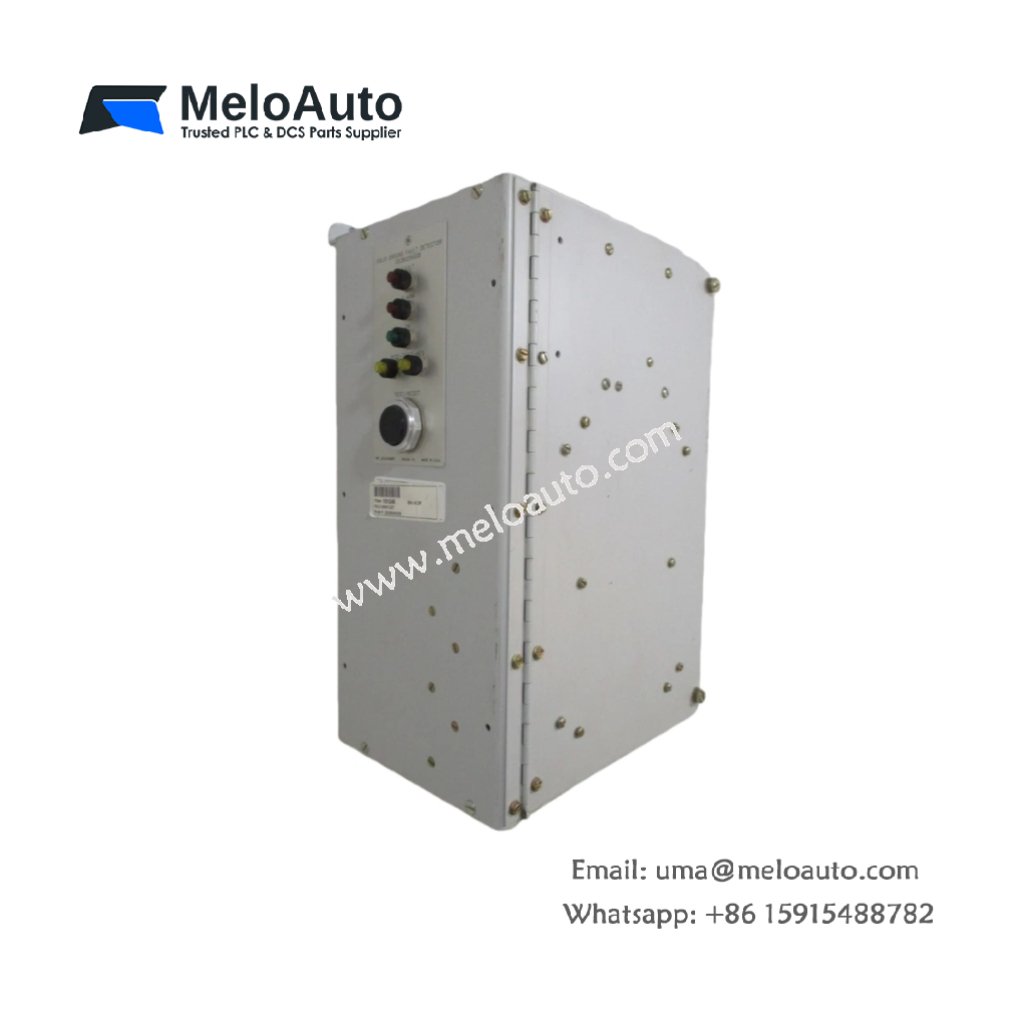

GE DS3800NGDC1A1A Mark IV Ground Detector Module

The GE DS3800NGDC1A1A is a high-performance Mark IV Ground Detector Module designed for industrial control systems. Manufactured by GE Fanuc, now part of Emerson Automation, this module provides critical ground fault detection to ensure safe and reliable operations in commercial and industrial applications.

Key Features

Model: DS3800NGDC1A1A
Category: Ground Detector Module
Manufacturer: GE Fanuc (Emerson Automation)
Product Line: Mark IV

Technical Specifications

Specification	Details
Part Number	DS3800NGDC1A1A
Weight	0.55 lbs (0.25 kg)
Input Voltage	125 VDC
Output Voltage	5 VDC
Communication Interface	Serial Port
Mounting Type	Rack Mount
Operating Temperature	-40°C to +85°C
Isolation Rating	2500 VDC
Dimensions (H x W x D)	5.0 x 6.2 x 1.5 inches
Indicators	3 LEDs (Fault, Status, Power)

Description

The GE DS3800NGDC1A1A serves as a Ground Detector Module within the Mark IV control systems. It efficiently detects ground faults, offering reliable protection and enhancing system safety. As part of the GE Fanuc family, it plays a crucial role in preventing electrical hazards and minimizing costly downtime.

This module operates with an input voltage of 125 VDC and provides a 5 VDC output. It is equipped with a serial communication port for easy integration with other system components. The 2500 VDC isolation rating ensures the module can withstand surges and electrical faults, protecting both the module and connected equipment.

Importantly, the GE DS3800NGDC1A1A features 3 LED indicators that show the Fault, Status, and Power of the system. These indicators allow operators to monitor the system’s health in real-time, identifying issues before they escalate. This enhances operational efficiency and minimizes troubleshooting time.

With a compact design (5.0 x 6.2 x 1.5 inches), this module easily mounts into any standard rack mount slot. Moreover, it operates efficiently in temperatures ranging from -40°C to +85°C, making it ideal for industrial environments with extreme conditions.

Benefits

Comprehensive Protection: The 2500 VDC isolation provides superior protection from electrical surges.
Compact and Easy to Install: Its rack mount design ensures easy integration into control systems.
Reliable Performance: With a temperature range of -40°C to +85°C, it performs effectively even in harsh conditions.
Immediate Monitoring: The 3 LED indicators provide real-time feedback on system status.

Applications

The GE DS3800NGDC1A1A is ideal for use in power plants, manufacturing systems, and high-voltage electrical networks where ground fault detection is crucial. It ensures electrical system protection and enhances overall system reliability. This module is highly suited for environments where early detection of ground faults is necessary to avoid equipment damage.

Installation and Operation

The GE DS3800NGDC1A1A is easy to install and mount in a standard rack slot. Simply connect it via the serial communication port, and the module begins monitoring ground faults immediately. The LED indicators give operators instant feedback, making it easy to identify and respond to any issues that arise.
