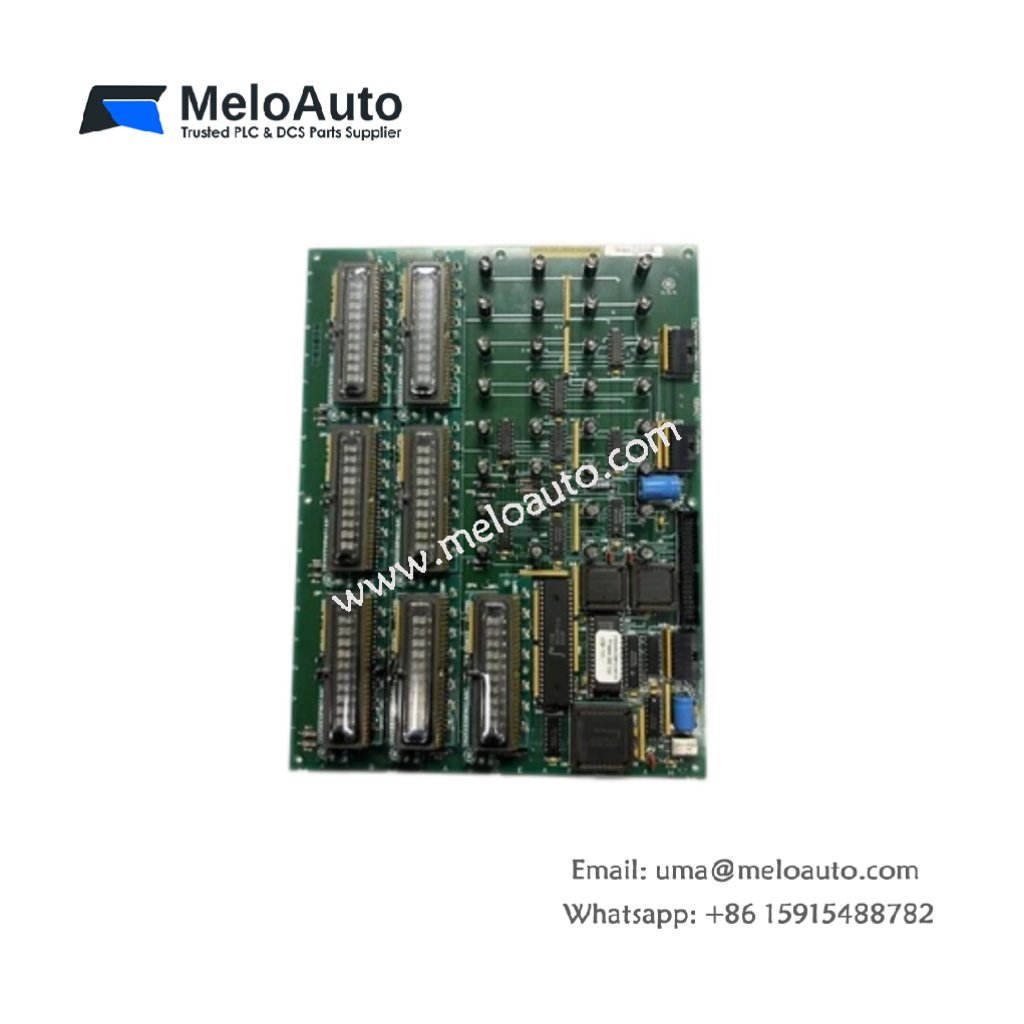

GE DS215KLDBG1AZZ03A Mark V LAN Interface Circuit Board

The GE DS215KLDBG1AZZ03A board provides LAN communication for Mark V systems. This circuit board connects the turbine controller to plant networks. It handles data exchange for monitoring and control applications. The board ensures reliable network connectivity in harsh environments.

Technical Specifications of GE DS215KLDBG1AZZ03A

Component Count and Board Construction

The GE DS215KLDBG1AZZ03A board contains over 180 discrete components. You will find an Ethernet controller chip on the board. Furthermore, the board includes a transformer for signal isolation. The assembly also features status LEDs for link and activity.

Interfaces, Energy Storage, and Signal Processing

The GE DS215KLDBG1AZZ03A provides a standard RJ45 Ethernet port. Moreover, the board uses capacitors for power supply decoupling. These capacitors store minimal energy for noise filtering. The board also includes a configuration jumper for network settings.

Functional Logic and Application Context

This Mark V board receives data from the main controller via backplane. It then packetizes this data for network transmission. The GE DS215KLDBG1AZZ03A also receives commands from plant DCS systems. Additionally, it supports both Modbus TCP and proprietary protocols. Consequently, the board enables seamless integration with plant-wide networks.

Installation and Environmental Limits

You must power down the rack before inserting this circuit board. The operating temperature range spans 0°C to 60°C . Furthermore, the board withstands 5 g vibration without connection loss. Always verify the GE DS215KLDBG1AZZ03A IP settings before network connection.
