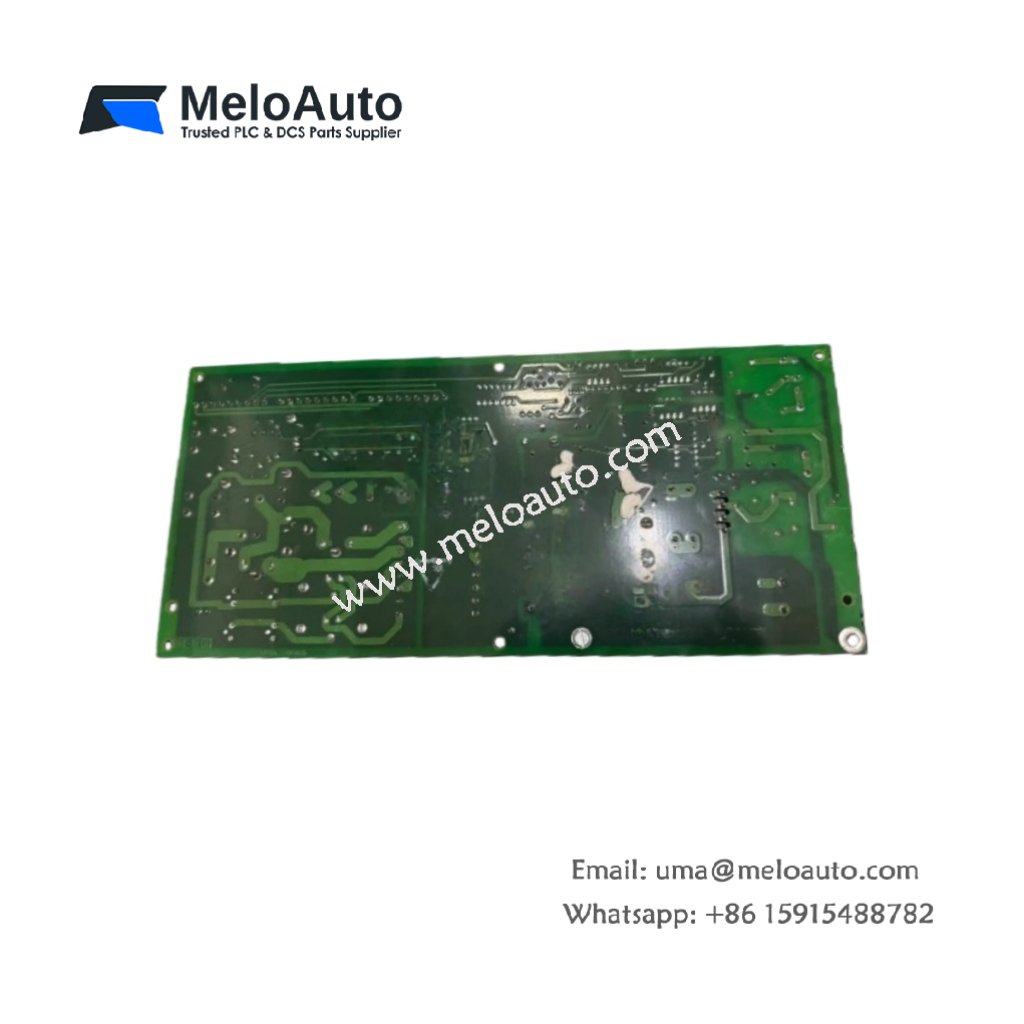

GE DS200UPSAG1AGD UC200 Power Supply Board

Overview

The GE DS200UPSAG1AGD is a robust UC200 Power Supply Board from General Electric (GE). It provides reliable voltage regulation and efficient power distribution in automation systems. Designed specifically for GE UC200 Series, this module plays a crucial role in industrial control environments that demand stable and continuous power.

Key Features

Efficient Voltage Output: The board delivers stable 24V DC output, supporting high-performance automation systems.
Compact Design: Its small size makes it ideal for space-constrained installations without compromising on power capacity.
High Efficiency: With an efficiency rating of 95%, it minimizes power loss and optimizes energy consumption.
Built-in Protection: Features overload, short circuit, and over-voltage protection for enhanced safety.
Durability: The design is robust, supporting operation in harsh industrial environments across a wide temperature range.

Technical Specifications

Specification	Details
Part Number	DS200UPSAG1AGD
Manufacturer	General Electric (GE)
Product Type	Power Supply Board
Series	UC200
Weight	1.25 kg (2.76 lbs)
Dimensions	250mm x 150mm x 40mm
Input Voltage	120/240 V AC
Output Voltage	24 V DC
Power Rating	100 W
Current Capacity	4.2 A
Efficiency	95%
Operating Temperature	-20°C to 70°C
Humidity Tolerance	5 to 95% (Non-Condensing)
Certifications	UL, CE, RoHS
Protection Features	Overload, Short Circuit, Over-voltage protection
Mounting	Rack Mount

Description

The GE DS200UPSAG1AGD UC200 Power Supply Board is designed to convert 120/240 V AC into a stable 24 V DC output. This module efficiently powers industrial automation systems, delivering 100 W with a 4.2 A current capacity. It operates with a 95% efficiency, ensuring minimal energy waste and reduced operational costs.

Equipped with overload, short circuit, and over-voltage protection, the board guarantees safe and reliable operation in demanding industrial settings. The GE DS200UPSAG1AGD also supports a wide operating temperature range from -20°C to 70°C, making it suitable for diverse environments. The module includes 1500 V AC isolation, offering robust protection against electrical surges.

For easy integration into control panels, this power supply board is rack-mountable, saving valuable installation space. Additionally, its compact size allows for seamless use in space-constrained applications without sacrificing performance.

Applications

Industrial Automation: Delivers stable and continuous power for machinery, control systems, and automated processes.
Control Panels: Ensures reliable power in control panels across industrial environments.
Energy Management Systems: Provides efficient power management for energy optimization in complex systems.
Manufacturing Systems: Keeps automated production lines powered and operational during critical tasks.

Why Choose the GE DS200UPSAG1AGD?

The GE DS200UPSAG1AGD offers both high efficiency and reliable performance, making it a key component for your power supply needs in GE UC200 Series control systems. Its compact design and integrated protection features enhance safety and minimize downtime in industrial automation applications.
