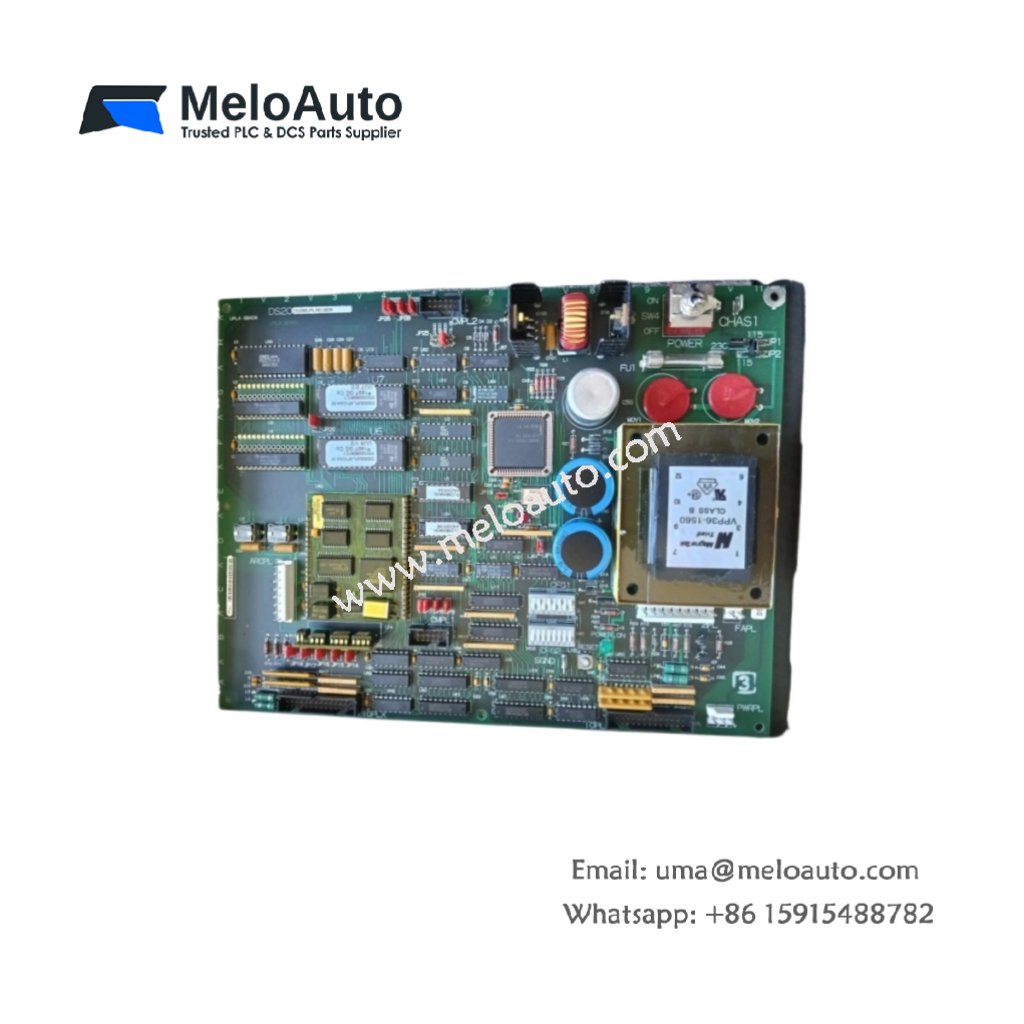

GE DS200UPLAG1B/DS215UPLAG1BZZ01A Power Supply LAN Interface Card

The GE DS200UPLAG1B/DS215UPLAG1BZZ01A card combines power supply and LAN interface functions. This combo card also carries the revision code DS215UPLAG1BZZ01A . It provides regulated power to adjacent boards in the rack. The card also handles Ethernet communication for the Mark V system.

Technical Specifications of GE DS200UPLAG1B / DS215UPLAG1BZZ01A

Component Count and Board Construction

The GE DS200UPLAG1B/DS215UPLAG1BZZ01A board contains over 250 discrete components. You will find a switching power supply controller on board. Furthermore, the card includes an Ethernet transceiver for network connectivity. The assembly also features filtering capacitors for clean DC output.

Interfaces, Energy Storage, and Power Regulation

The DS200UPLAG1B/DS215UPLAG1BZZ01A revision provides a terminal block for DC input wiring. Moreover, the board uses large capacitors for energy storage during power dips. These capacitors hold enough charge for 50 ms of operation. The LAN port uses a standard RJ45 connector for easy cabling.

Functional Logic and Application Context

This Mark V card converts 24 V DC into multiple regulated output voltages. It supplies 5 V, 12 V, and 15 V rails to other boards. The GE DS200UPLAG1B also manages network traffic for the rack. Additionally, it provides diagnostic feedback via status LEDs. Consequently, this card serves both power and communication functions.

Installation and Environmental Limits

You must power down the rack before inserting this combo card. The operating temperature range spans 0°C to 60°C . Furthermore, the card withstands 5 g vibration without power interruption. Always verify the DS215UPLAG1BZZ01A wiring before connecting the DC supply.
