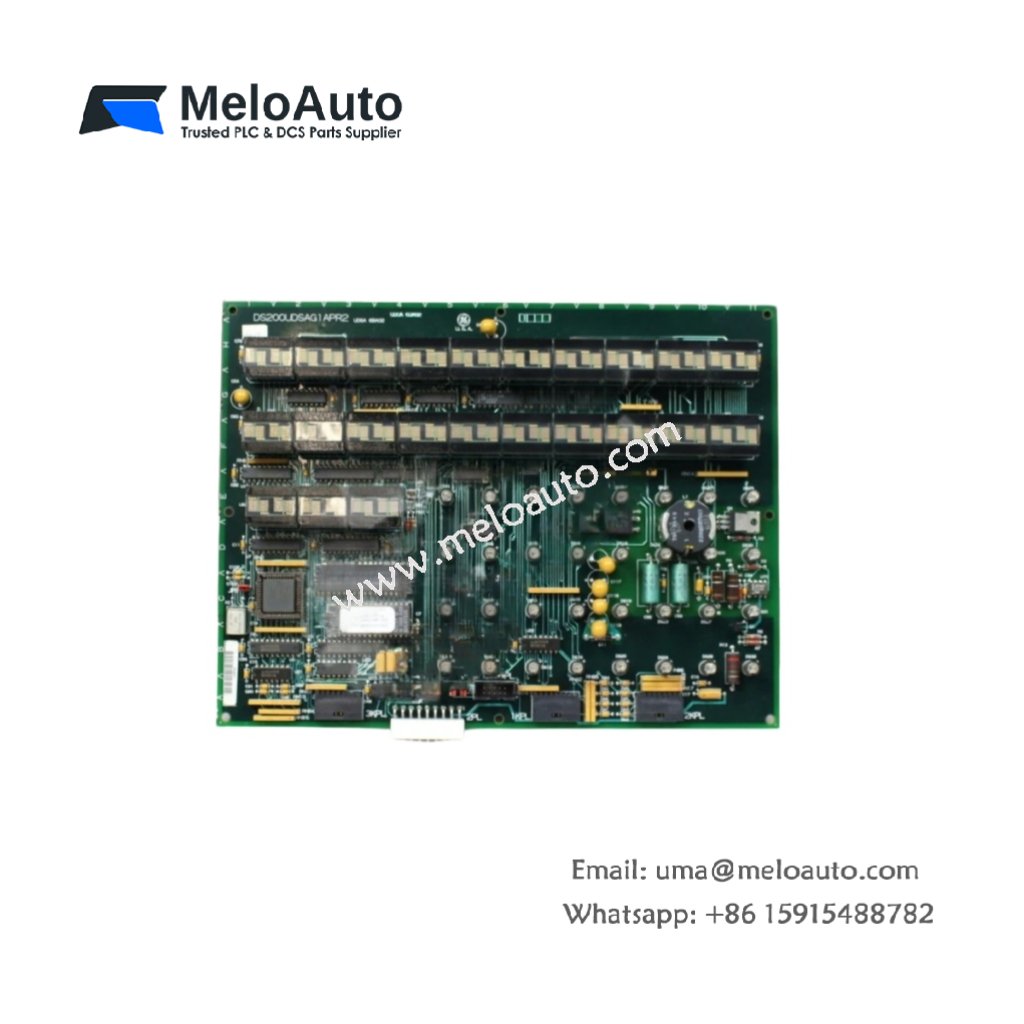

GE DS200UDSAG1A Mark V Relay Board

The GE DS200UDSAG1A board provides discrete relay outputs for Mark V systems. This relay board switches field loads based on controller commands. It activates solenoids, contactors, and indicator lamps reliably. The board offers robust isolation between logic and field circuits.

Technical Specifications of GE DS200UDSAG1A

Component Count and Board Construction

The GE DS200UDSAG1A board contains sixteen individual electromechanical relays. Each relay features silver alloy contacts for long switching life. Furthermore, the board includes flyback diodes for inductive load protection. You will also find LED indicators for each relay channel.

Interfaces, Energy Storage, and Signal Paths

The GE DS200UDSAG1A provides screw terminal blocks for all field wiring. Moreover, the board stores minimal energy due to its relay-based design. It uses small capacitors only for contact debouncing purposes. Consequently, this relay board requires no large energy storage devices.

Functional Logic and Application Context

This Mark V board receives command signals from the main controller. It then energizes or de-energizes the output relays accordingly. The GE DS200UDSAG1A supports both normally open and normally closed configurations. Additionally, it monitors each relay coil for open circuit conditions. Consequently, the board reports coil failures back to the controller immediately.

Installation and Environmental Limits

You must isolate the 24 V DC supply before removing this relay board. The operating temperature range spans -30°C to +65°C . Furthermore, the board withstands 5 g vibration without contact chatter. Always verify the GE DS200UDSAG1A wiring against the terminal diagram before power-up.
