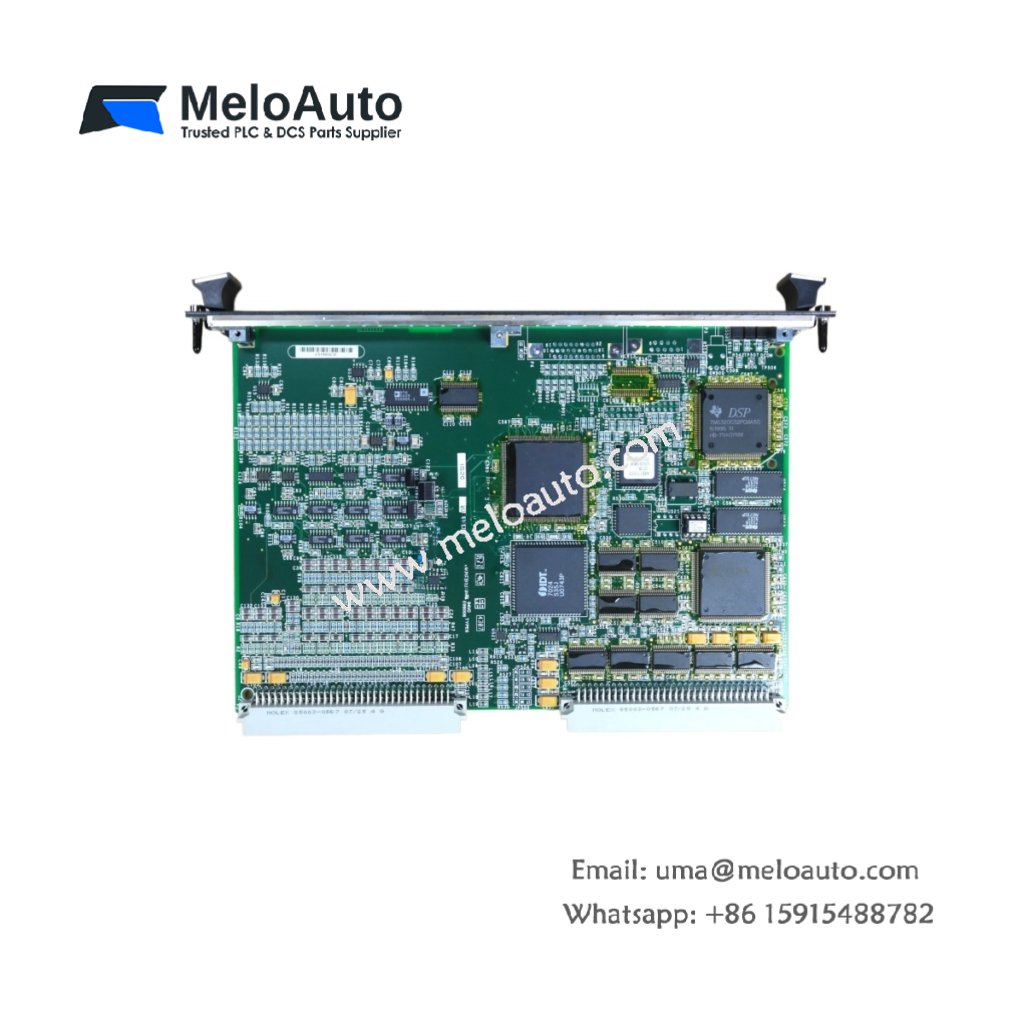

GE DS200TCQCG1B DS200TCQCG1BAA Printed Circuit Board

The GE DS200TCQCG1B DS200TCQCG1BAA serves as a printed circuit board for the Mark V series. This board manages contactor control signals for turbine power distribution. You will find this unit in many industrial power generation facilities. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 120 discrete components onto a multi-layer PCB. Its dimensions measure roughly 7.8 inches wide by 6.2 inches high. The total weight reaches about 0.55 kilograms including the protective coating. Six contactor control outputs switch external contactor coils on demand. Six status feedback inputs monitor contactor positions for verification. One backplane connector provides power and command paths from the main rack. The design stores up to 250 joules of capacitive energy for stable contactor actuation.

Functional Layout and Contactor Management

The GE DS200TCQCG1B DS200TCQCG1BAA controls contactor states with high reliability. Each driver switches coil current according to controller commands. Moreover, the board checks feedback signals to confirm proper contactor operation. This variant includes upgraded drivers for better current handling and fault tolerance. General Electric specifically designed this PCB for the Mark V Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This printed circuit board mounts directly into a standard Mark V rack slot. Always disconnect system power before handling the GE DS200TCQCG1B DS200TCQCG1BAA. The board works with existing GE Mark V backplanes and contactor assemblies. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark V versions. Proper installation ensures reliable contactor control and system integrity.
