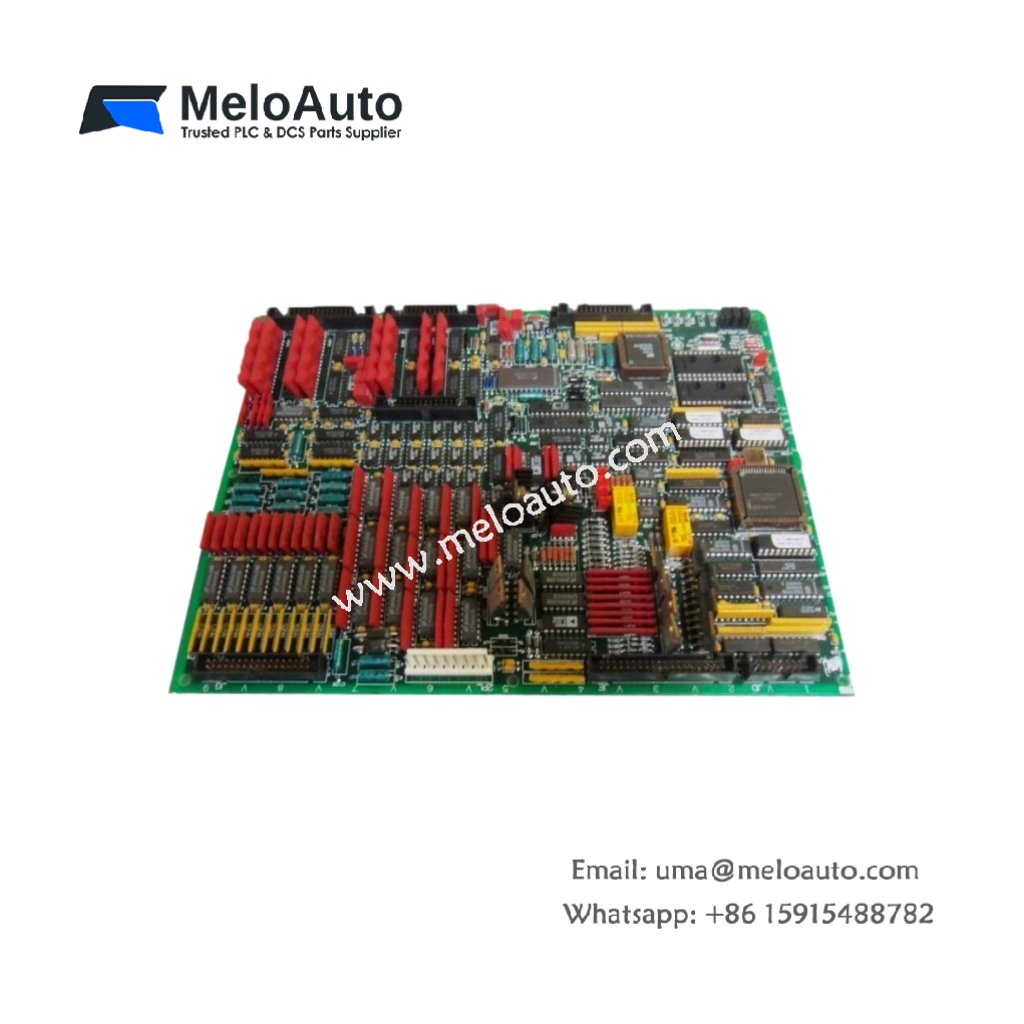

GE DS200TCQAG1BHF Mark V RST Analog Termination Board

The GE DS200TCQAG1BHF board terminates analog signals for Mark V systems. This RST analog termination board connects field transmitters to I/O cards. It provides organized wiring points for reliable signal measurement. The board handles both current and voltage inputs from field devices.

Technical Specifications of GE DS200TCQAG1BHF

​

Component Count and Board Construction

The GE DS200TCQAG1BHF board contains over 140 discrete components. You will find multiple suppression circuits for each channel. Furthermore, the board includes precision resistors for current-to-voltage conversion. The assembly also features LED indicators for power and loop status.

Interfaces, Energy Storage, and Signal Routing

The GE DS200TCQAG1BHF provides screw terminal blocks for all field wiring. Moreover, the board uses capacitors for input noise filtering. These capacitors store minimal energy for transient suppression. Each channel includes a dedicated test point for troubleshooting.

Functional Logic and Application Context

This Mark V board routes analog signals from field sensors to the I/O card. It accepts inputs from pressure, temperature, and flow transmitters. The GE DS200TCQAG1BHF also provides loop power for two-wire transmitters. Additionally, it includes jumpers for channel configuration. Consequently, the board simplifies analog wiring and reduces installation errors.

Installation and Environmental Limits

You must isolate the 24 V DC supply before servicing this termination board. The operating temperature range spans -30°C to +65°C . Furthermore, the board withstands 5 g vibration without connection loosening. Always verify the GE DS200TCQAG1BHF jumper settings before connecting field devices.
