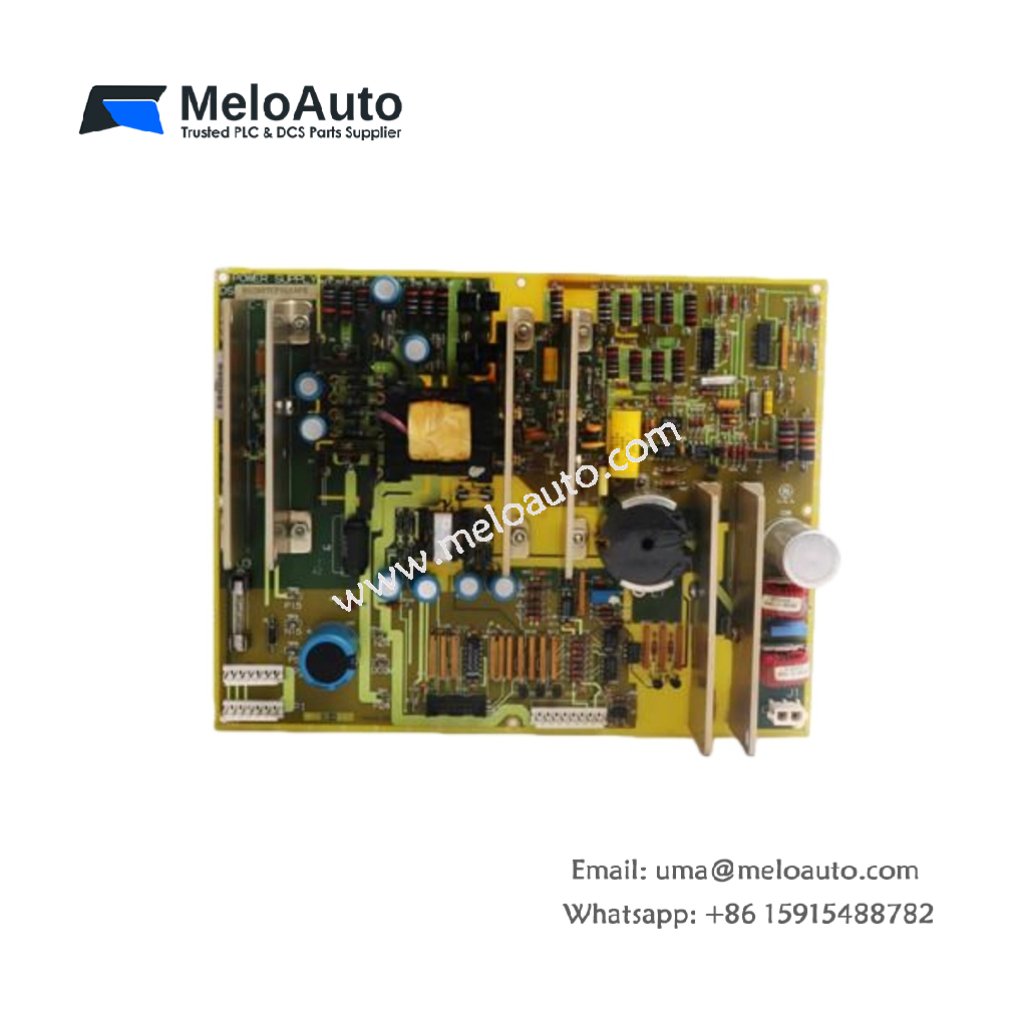

GE DS200TCPSG1APE Power Supply DC Input Board

Overview

The GE DS200TCPSG1APE is a Power Supply DC Input Board designed for use in the GE Speedtronic Mark V gas turbine control systems. Manufactured by General Electric, this module plays a critical role in providing reliable DC power to the control system, ensuring stable operation in demanding industrial environments. Equipped with advanced diagnostic features, it enables real-time troubleshooting and helps maintain system integrity.

Key Features

Manufacturer: General Electric
Model: DS200TCPSG1APE
Series: Mark V
Function: Power Supply DC Input Board for GE Speedtronic Mark V
Warranty:
- 12-month warranty for repairs
- 24-month warranty for unused and rebuilt units

Technical Specifications

Specification	Details
Power Supply	DC input board for GE Speedtronic Mark V gas turbine control systems
Connectors	– 1 x 16-pin connector – 1 x 9-pin connector
Components	– 3 x fuses – Diagnostic test points
Diagnostic Tools	Integrated 2-line display and keys for drive interaction
Display	2-line display for viewing diagnostic results
Interface	Menu options for configuration and diagnostics
Download/Connectivity	Serial connection for downloading diagnostic reports to a laptop
Diagnostic Support	Built-in diagnostic tools for detecting malfunctions

Functionality and Diagnostic Tools

The GE DS200TCPSG1APE integrates a robust diagnostic system, which includes a 2-line display and keys for interaction with the drive. This feature allows operators to monitor system health, configure settings, and troubleshoot malfunctions efficiently. Additionally, the module offers connectivity for downloading detailed diagnostic reports via serial connection to a laptop, ensuring comprehensive troubleshooting.

Applications

This Power Supply DC Input Board is specifically designed for GE Speedtronic Mark V gas turbine control systems. Its primary function is to supply stable DC power to the control system, ensuring continuous operation of gas turbines in various industrial applications. With built-in diagnostic features, it simplifies maintenance and enhances system reliability.
