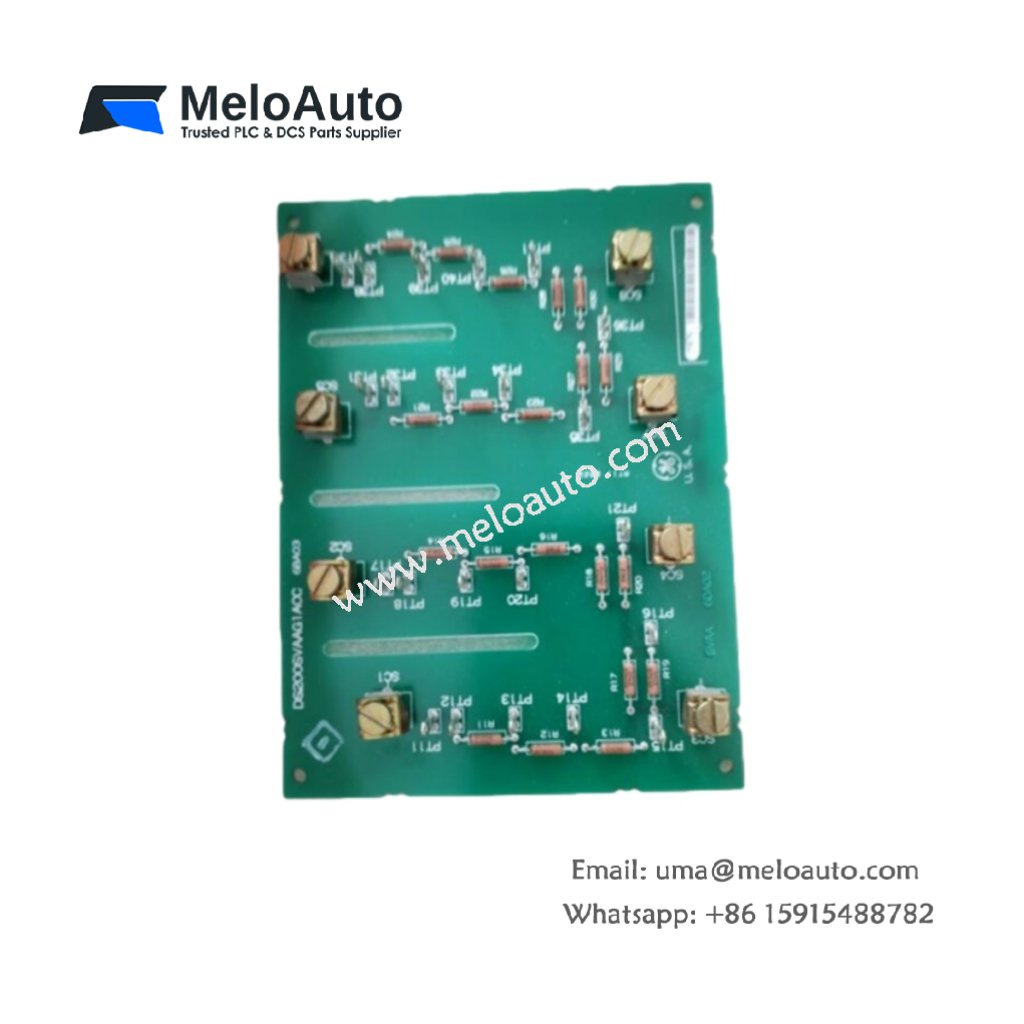

GE DS200SVAAG1A DS200SVAAG1ACB Drive Board

The DS200SVAAG1A is a high-performance drive board and voltage attenuator card designed for GE’s MARK V control systems. This component ensures seamless communication and efficient control for industrial automation applications. It plays a crucial role in regulating voltage and driving signals to maintain precise system operations.

Key Features

Model: DS200SVAAG1A
Category: DRIVE BOARD, Voltage Attenuator Card
Manufacturer: General Electric (GE)
Series: MARK V
Compatibility: Works with GE MARK V systems for various industrial control solutions.

Technical Specifications

Parameter	Specification
Voltage Input Range	48V to 250V DC
Current Output	0 to 50A (depending on load)
Dimensions	6.2″ x 4.5″ x 1.2″ (157 mm x 114 mm x 30 mm)
Weight	0.5 kg (1.1 lbs)
Connection Interface	High-speed communication bus
Energy Storage	Capacitor-based energy storage for voltage regulation
Mounting	Rack-mountable design
Temperature Range	-40°C to 70°C
Component Count	Multiple resistors, capacitors, and transistors for precise operation

The DS200SVAAG1A is engineered to provide robust performance and high efficiency for GE’s MARK V control system, ensuring stability in demanding industrial environments. With its compact size and high reliability, this drive board supports a variety of industrial applications, ensuring smooth voltage regulation and signal transmission.

GE DS200SVAAG1A Features Summary

Voltage attenuation: Reduces voltage fluctuations for better system performance.
Efficient signal handling: Processes signals to prevent voltage spikes.
Compact and durable: Designed to fit in tight spaces while maintaining durability.
Optimized for MARK V: Fully compatible with the GE MARK V control system.

GE DS200SVAAG1ACB Voltage Attenuator Card – Detailed Description

The DS200SVAAG1ACB is another version of the voltage attenuator card, offering similar functionality with specific adjustments for various industrial environments. Like the DS200SVAAG1A, it plays an important role in voltage regulation, signal processing, and ensuring smooth operation in GE’s MARK V system.

Key Features of DS200SVAAG1ACB:

Voltage Input: 48V to 250V DC
Current Output: 0 to 50A (load-dependent)
Weight: 0.6 kg (1.32 lbs)
Temperature Range: -40°C to 70°C
Energy Storage: Integrated capacitors for energy buffering and voltage smoothing.

GE DS200SVAAG1ACB Technical Specifications

Parameter	Specification
Voltage Input Range	48V to 250V DC
Current Output	0 to 50A (depending on load)
Dimensions	6.5″ x 4.7″ x 1.3″ (165 mm x 120 mm x 33 mm)
Weight	0.6 kg (1.32 lbs)
Connection Interface	High-speed communication bus
Energy Storage	Capacitors for energy buffering
Temperature Range	-40°C to 70°C

The DS200SVAAG1ACB card offers a similar but optimized voltage attenuation solution for GE’s MARK V system. The small size and high energy capacity make it ideal for use in critical industrial automation applications that demand reliable, stable power and signal regulation.
