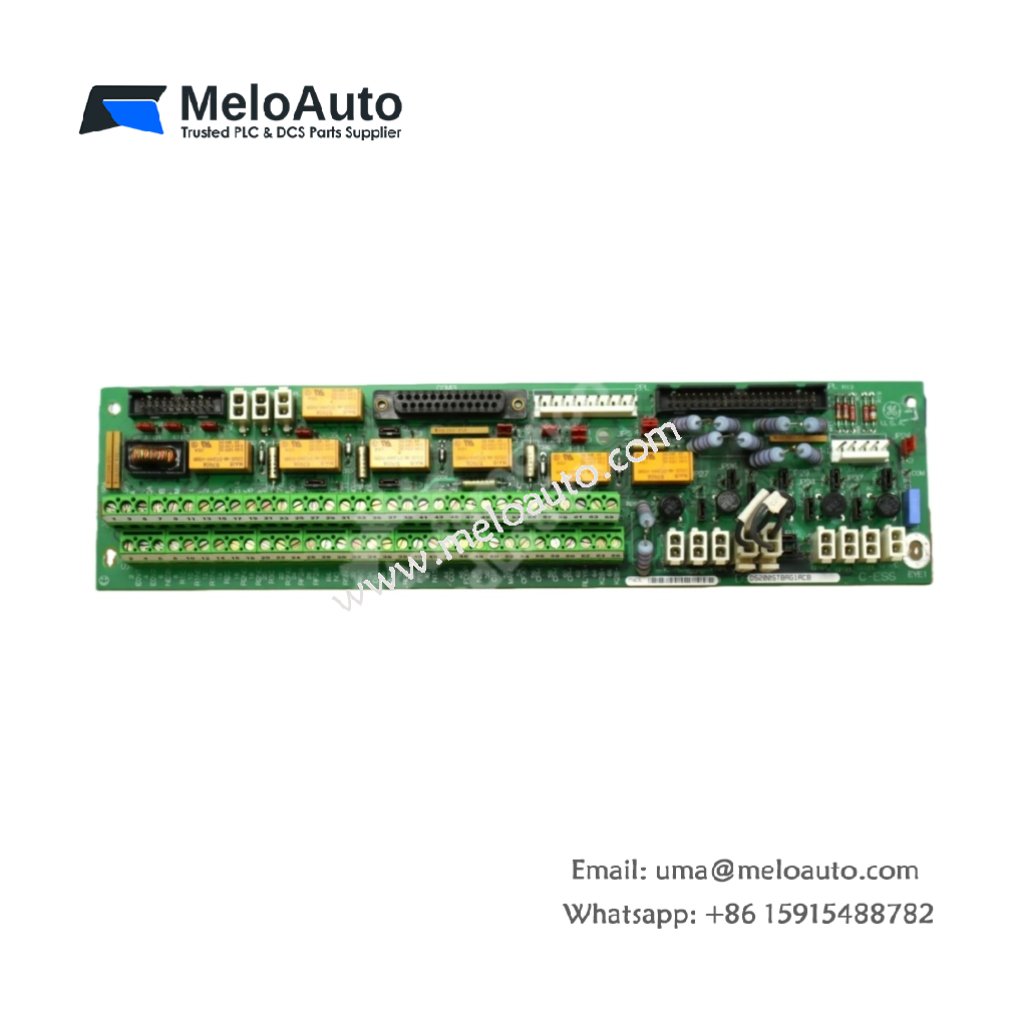

GE DS200STBAG1ACB Basic Drive Terminal Board

The GE DS200STBAG1ACB is an essential component of the GE Speedtronic control system. It plays a crucial role in managing communication between the drive system and control components, enabling smooth operation of industrial automation processes.

Key Features and Specifications

The GE DS200STBAG1ACB provides reliable performance with features that optimize signal transmission. It ensures seamless integration into the GE Speedtronic system and supports both analog and digital signals.

Technical Specifications

Specification	Details
Manufacturer	GE (General Electric)
Part Number	DS200STBAG1ACB
Product Type	Basic Drive Terminal Board
Product Line	GE Speedtronic
Weight	Approx. 0.25 lbs (0.11 kg)
Dimensions	5.5″ x 2.8″ x 1.3″ (140mm x 71mm x 33mm)
Interface Type	Direct connection to drive and control system
Operating Voltage	24V DC (nominal)
Signal Type	Analog and digital input/output signals
Current Rating	1A max per terminal
Mounting Type	Direct mounting to drive cabinet
Connection Terminals	Screw terminal block
Max Power Dissipation	5 Watts maximum
Compatibility	Compatible with GE Speedtronic systems
Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

Functionality

The GE DS200STBAG1ACB ensures efficient signal transmission and enables effective control over the drive system. By acting as a bridge between the control system and the drive components, it enhances system reliability.

This module provides both analog and digital input/output signals. When properly installed, it enables smooth operation of connected machinery by delivering accurate data. Additionally, operators can configure alarm thresholds, adjust system settings, and implement fail-safe measures through this board.

Each output channel has unique configuration options, including adjustable alarm settings such as very low, low, high, and very high alarms. It also supports output clamping, which is useful for controlling Proportional-Integral-Derivative (PID) controllers. The built-in fault reporting function provides quick diagnostics, minimizing system downtime.

Applications

The GE DS200STBAG1ACB is ideal for several applications:

Industrial Automation: Controls power drives and supports seamless signal management.
Power Generation: Ensures reliable and efficient power distribution.
Manufacturing: Optimizes process control by linking drives and control systems.

Installation and Compatibility

Installation is straightforward for the GE DS200STBAG1ACB. This module fits into the drive cabinet and connects to the terminal block with minimal effort. For operation, you need to supply it with a 24V DC power source. Ensure the terminal block is securely connected to the module.

Compatible terminal blocks include Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), and Extended Spring-style (IC694TBS132). For maximum performance, always use the correct terminal block for your configuration.
