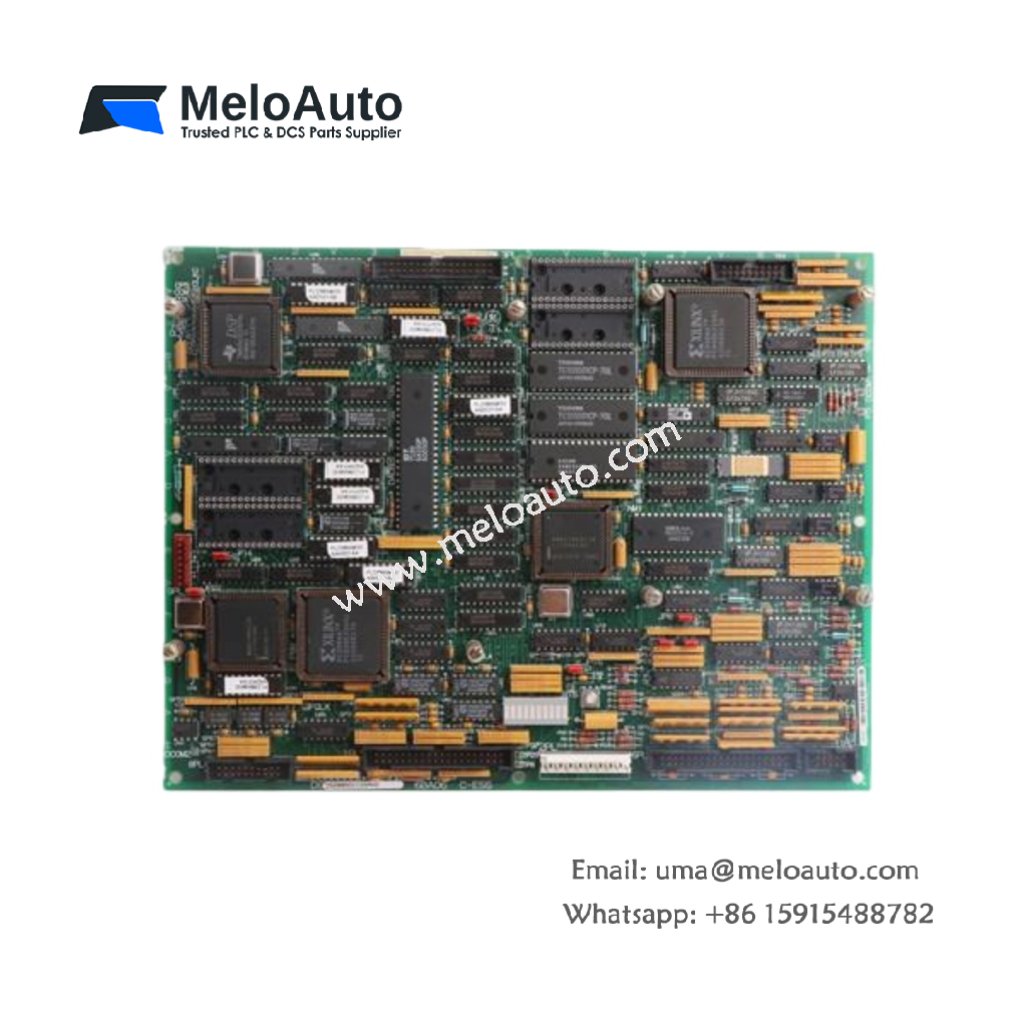

GE DS200SDCCG5A Inverter Drive Control Board

Product Overview

The GE DS200SDCCG5A is an advanced Inverter Drive Control Board designed for use in GE Mark V turbine control systems. As part of the Mark V Speedtronic series, this board provides reliable and precise control of turbine operations. It integrates multi-input/output capabilities and features onboard RAM for enhanced processing. The DS200 board offers significant improvements over earlier models, providing greater accuracy, stability, and fault tolerance. With these upgrades, it is well-suited for modern turbine applications requiring high performance and robust diagnostics.

Key Features

Improved Performance: The DS200SDCCG5A enhances control accuracy and system stability, ensuring smoother turbine operations.
Noise Reduction: It features advanced technology to reduce electrical noise and interference, improving overall system efficiency.
Diagnostic Enhancements: The board includes improved diagnostics for better fault detection and tolerance.
Scalability: Designed to accommodate future expansion, it offers scalable solutions for evolving turbine control needs.
Field Replaceable: The DS200 is easy to install and configure, making maintenance straightforward and reducing downtime.

Technical Specifications

Specification	Details
Part Number	DS200SDCCG5A
Manufacturer	GE Fanuc
Product Type	Inverter Drive Control Board
Series	Mark V Speedtronic
Functionality	Multi-input/output, voltage feedback scaling
Board Type	Field-replaceable unit
Onboard RAM	Yes
Compatibility	Compatible with all Mark V turbine control systems
Input/Output Support	Multi-input/output
Noise Reduction	Yes, reduces noise and interference
Diagnostic Features	Enhanced diagnostics and fault tolerance
Scalability	Supports future applications and expansions
Mounting	Designed for easy installation and field replacement
Operating Environment	Industrial turbine control systems
Weight	1.5 kg (3.3 lbs)
Dimensions	10.5” x 6.5” x 1.25” (267 mm x 165 mm x 32 mm)

Installation Guidelines

Start by powering off the turbine control system before removing the old board.
Next, mount the DS200SDCCG5A Inverter Drive Control Board securely into its designated slot within the Mark V Speedtronic system.
After mounting, connect the appropriate input/output cables and ensure the board is properly integrated with the control system.
Finally, power up the system and verify the board’s operation through the Mark V diagnostic interface.

Conclusion

The GE DS200SDCCG5A Inverter Drive Control Board is a highly reliable and efficient component for Mark V turbine control systems. With its improved accuracy, noise reduction, and diagnostic capabilities, it ensures superior turbine performance. This field-replaceable unit offers easy installation and scalability, making it an ideal solution for both current and future turbine control applications. With enhanced fault tolerance and system stability, the DS200 ensures long-term operational reliability.
