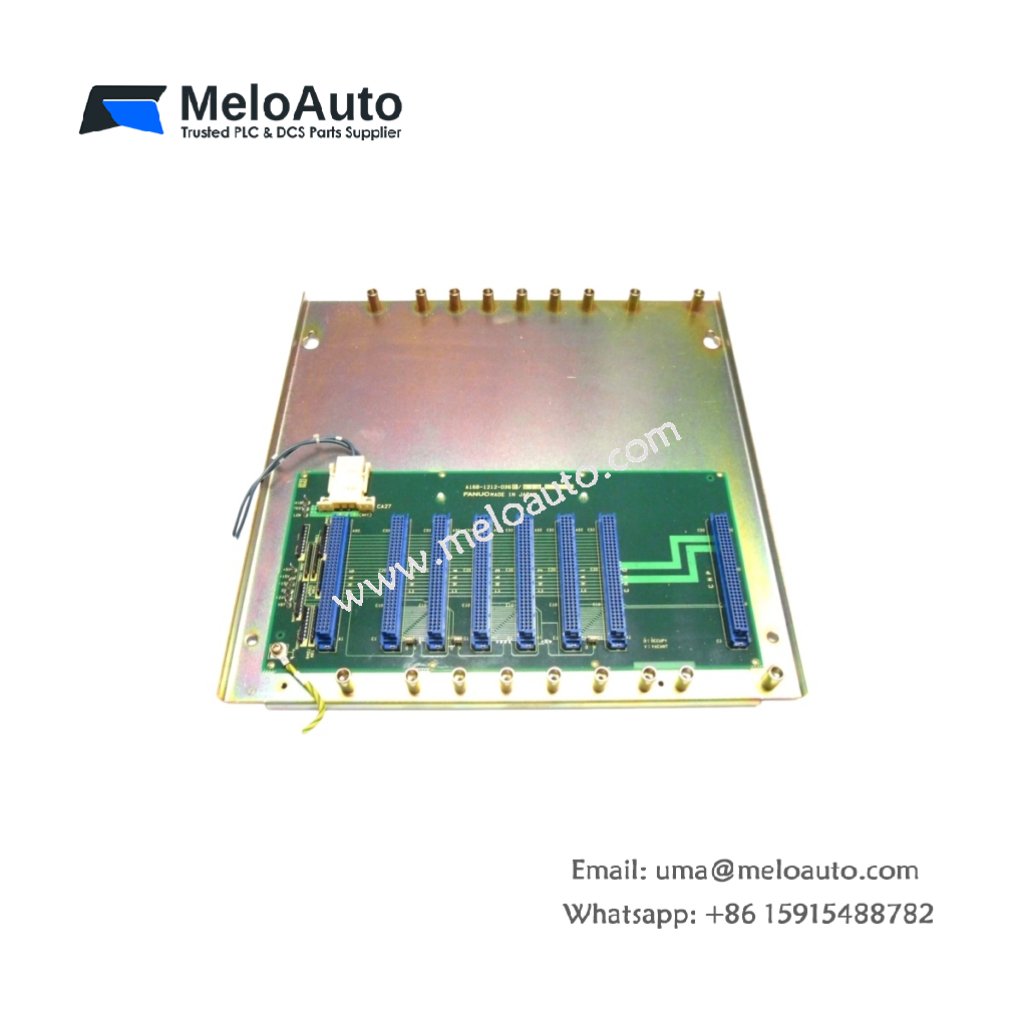

GE A16B-1212-0360/01A Robot Master Board

Robotic automation systems require sophisticated control boards for precise motion coordination. The GE A16B-1212-0360/01A robot master board delivers this core functionality for GE Fanuc robots. This board serves as the central processing unit for robotic arm control. It manages axis coordination, trajectory planning, and I/O communication.

Technical Architecture and Specifications

This master board features a standard Eurocard form factor for rack-based installation. Its dimensions measure 23.5 cm in height and 16.0 cm in depth. The GE A16B-1212-0360/01A weighs approximately 0.5 kilograms for secure mounting. It interfaces with the system backplane via a 96-pin DIN 41612 connector. This connector provides power distribution and high-speed data exchange.

The internal assembly contains a single multilayer circuit board with multiple processors. Engineers will note the presence of a main CPU and dedicated motion coprocessor. These processors work together for real-time trajectory calculations. The board draws 5 V DC and 24 V DC power from the system backplane. It dissipates approximately 15 watts during normal operation.

Processing and Memory Capabilities

The GE A16B-1212-0360/01A executes robot control algorithms with high precision. It manages up to six axes of simultaneous motion control. For data storage, it includes 512 KB of program memory and 128 KB of register memory. The board also incorporates battery-backed RAM for parameter retention during power loss. This battery maintains critical configuration data when the system powers down.

Specification	Detail
Model	A16B-1212-0360/01A
Manufacturer	GE Fanuc
Form Factor	Eurocard
Dimensions (H x D)	23.5 cm x 16.0 cm
Weight	0.5 kg
Backplane Connector	96-pin DIN 41612
Axes Control	6 Axes Simultaneous
Program Memory	512 KB
Register Memory	128 KB
Power Supply	5 V DC, 24 V DC
Power Dissipation	15 Watts
Memory Backup	Battery-Backed RAM

System Integration and Reliability

The GE A16B-1212-0360/01A operates reliably across demanding industrial environments. It functions within a temperature range of 0°C to 55°C. Status LEDs indicate processor activity, communication status, and fault conditions clearly. Maintenance personnel can diagnose system issues without specialized diagnostic equipment. The board incorporates watchdog timers that detect processor malfunctions. This safety feature initiates controlled shutdown during unexpected software events.
