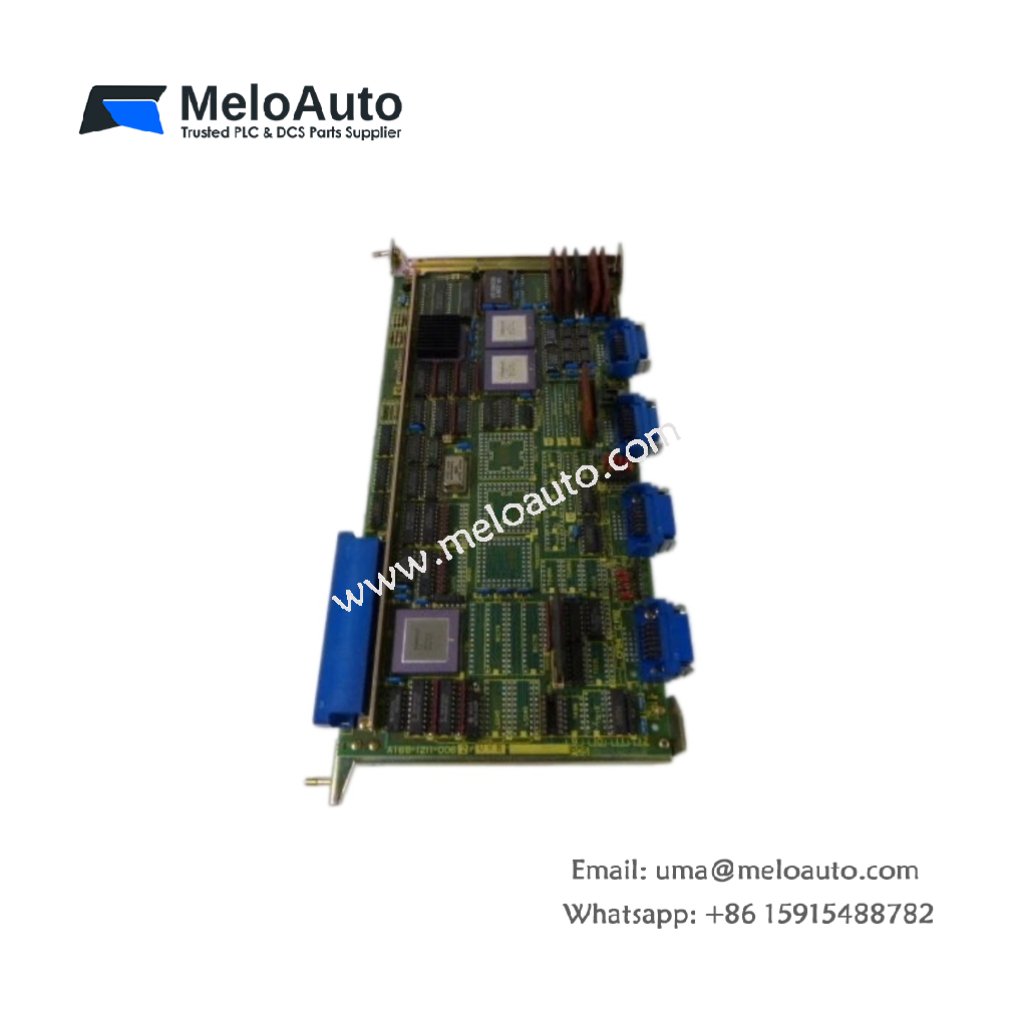

GE A16B-1211-0062/08B Axis Control Board

Precision motion control demands dedicated axis management for multi-axis systems. The GE A16B-1211-0062/08B axis control board delivers this essential functionality. This board manages servo motor control for individual axes in CNC machines. It coordinates with the main processor for synchronized motion profiles.

Technical Architecture and Specifications

This axis control board features a standard Eurocard form factor for rack installation. Its dimensions measure 23.5 cm in height and 16.0 cm in depth. The GE A16B-1211-0062/08B weighs approximately 0.4 kilograms for secure mounting. It interfaces with the system backplane via a 96-pin DIN 41612 connector. This connector provides power distribution and high-speed communication pathways.

The internal assembly contains a single multilayer circuit board with dedicated motion processors. Engineers will note the presence of a digital signal processor for real-time calculations. This processor handles position feedback and velocity control loops. The board draws 5 V DC and 24 V DC power from the system backplane. It dissipates approximately 12 watts during normal operation.

Axis Control Capabilities

The GE A16B-1211-0062/08B controls up to two axes of servo motor movement. Each axis supports incremental encoder feedback for precise positioning. For communication, it interfaces with servo amplifiers via dedicated command signals. The board also includes analog output channels for velocity or torque commands. Status indicators display axis activity, fault conditions, and communication status clearly. You can explore similar industrial motion control solutions for reference.

Specification	Detail
Model	A16B-1211-0062/08B
Manufacturer	GE Fanuc
Form Factor	Eurocard
Dimensions (H x D)	23.5 cm x 16.0 cm
Weight	0.4 kg
Controlled Axes	2 Axes
Feedback Type	Incremental Encoder
Output Type	Analog Command Signals
Backplane Connector	96-pin DIN 41612
Power Supply	5 V DC, 24 V DC
Power Dissipation	12 Watts

System Integration and Reliability

The GE A16B-1211-0062/08B operates reliably across demanding industrial environments. It functions within a temperature range of 0°C to 55°C. The board incorporates overcurrent protection for connected servo amplifiers. This protection prevents damage during motor stall or overload conditions. Maintenance personnel can diagnose axis faults through front-panel LED indicators. The board supports real-time position monitoring for precision machining applications.
