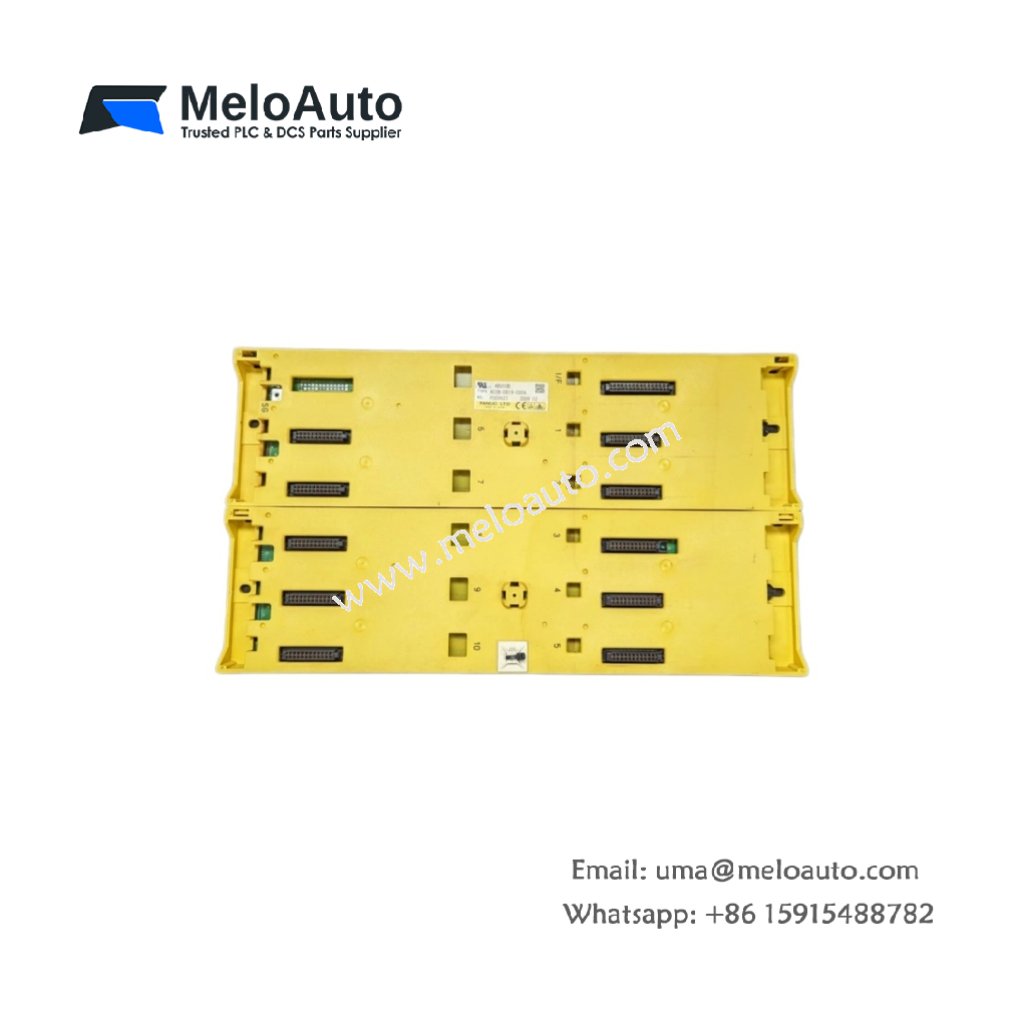

GE A03B-0819-C004 10-Slot I/O Base Unit

Control system architecture requires reliable backplane connections for I/O modules. The GE A03B-0819-C004 10-slot I/O base unit provides this essential foundation. This base unit accommodates up to ten I/O modules in a single assembly. It serves as the mounting and interconnection backbone for GE Fanuc systems.

Technical Architecture and Specifications

This base unit features a rugged chassis design suitable for cabinet mounting. Its dimensions measure 45.7 cm in width and 25.4 cm in height. The GE A03B-0819-C004 weighs approximately 3.2 kilograms for secure installation. It provides ten individual slots for I/O module insertion. Each slot features a 48-pin card-edge connector for reliable signal exchange.

The internal assembly contains a single multilayer printed circuit board with all backplane traces. Engineers will note the passive design with no active components or energy storage. This architecture eliminates maintenance requirements associated with electronic failures. The base unit distributes 5 V DC and 24 V DC power to all installed modules. This power distribution simplifies wiring within the control cabinet.

Module Compatibility and Configuration

The GE A03B-0819-C004 accepts standard GE Fanuc I/O modules across all ten slots. Each slot supports discrete, analog, or specialty I/O modules as needed. For system mounting, it includes DIN rail or panel mounting provisions. The backplane incorporates address encoding for automatic module recognition. You can explore similar industrial I/O solutions for reference.

Specification	Detail
Model	A03B-0819-C004
Manufacturer	GE Fanuc
Slot Count	10 Slots
Dimensions (W x H)	45.7 cm x 25.4 cm
Weight	3.2 kg
Connector Type	48-Pin Card-Edge per Slot
Power Distribution	5 V DC and 24 V DC
Active Components	None (Passive Backplane)
Mounting	DIN Rail or Panel
Module Recognition	Automatic Address Encoding

System Integration and Reliability

The GE A03B-0819-C004 operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. The passive backplane design eliminates electronic failure points entirely. Maintenance personnel can install or remove modules without powering down the base unit. This hot-swap capability minimizes system downtime during module replacement. The rugged construction withstands vibration and shock common in industrial settings.
