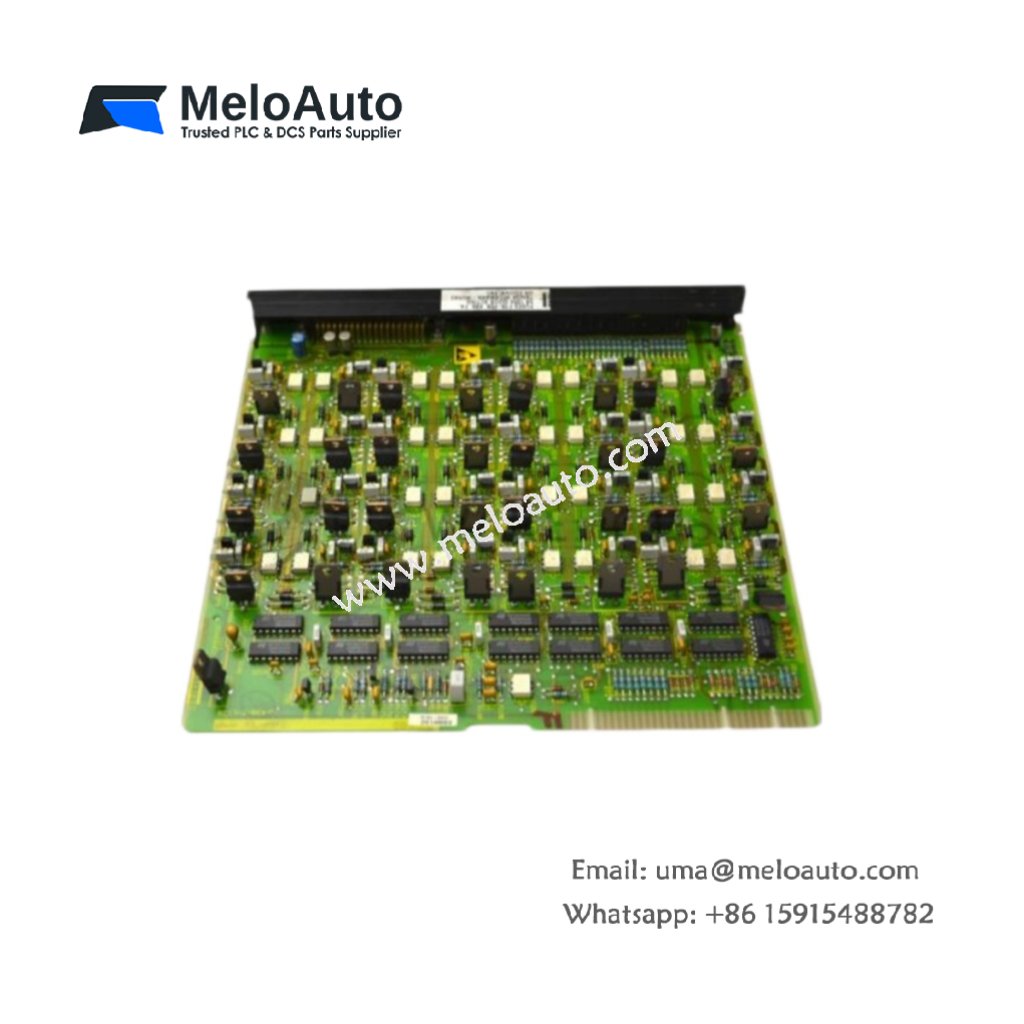

GE 8164-4002 Output Module: 32-Channel 24V DC Control for GEM 80 Systems

Overview of the GE 8164-4002 Output Module

The GE 8164-4002 functions as a high-density output module within the GEM 80 series of programmable logic controllers. We designed this module specifically for switching 24V DC signals across industrial automation applications. Its 32 independent channels provide reliable control for various machines and processes in legacy systems.

Key Technical Specifications and Hardware Design

Engineers will appreciate the robust technical characteristics of the GE 8164-4002 for discrete output applications. This module measures 2.9 cm in height, 23.5 cm in width, and 23.5 cm in depth, with a total weight of 1.17 pounds. It features a single 50-pin female connector for interfacing with field devices through standard ribbon cable assemblies.

The output circuitry incorporates 32 individual switching elements with transient suppression on each channel. Additionally, each channel delivers 0.5A continuous current at 24V DC with short-circuit protection. This design ensures reliable operation even in demanding industrial environments. You can coordinate this output module with protection devices like the RMS-TSG-TZ-C Static Trip Unit for comprehensive system monitoring.

Performance Parameters and Application Flexibility

We engineered the GE 8164-4002 for consistent performance across its 32 output channels. The module provides optical isolation between the logic circuits and field outputs for enhanced noise immunity. Although GE has discontinued this model, it continues serving legacy applications through third-party suppliers like Radwell and Classic Automation. Consequently, this output module remains a reliable choice for maintaining existing GEM 80 control systems.

Technical Specifications Table
