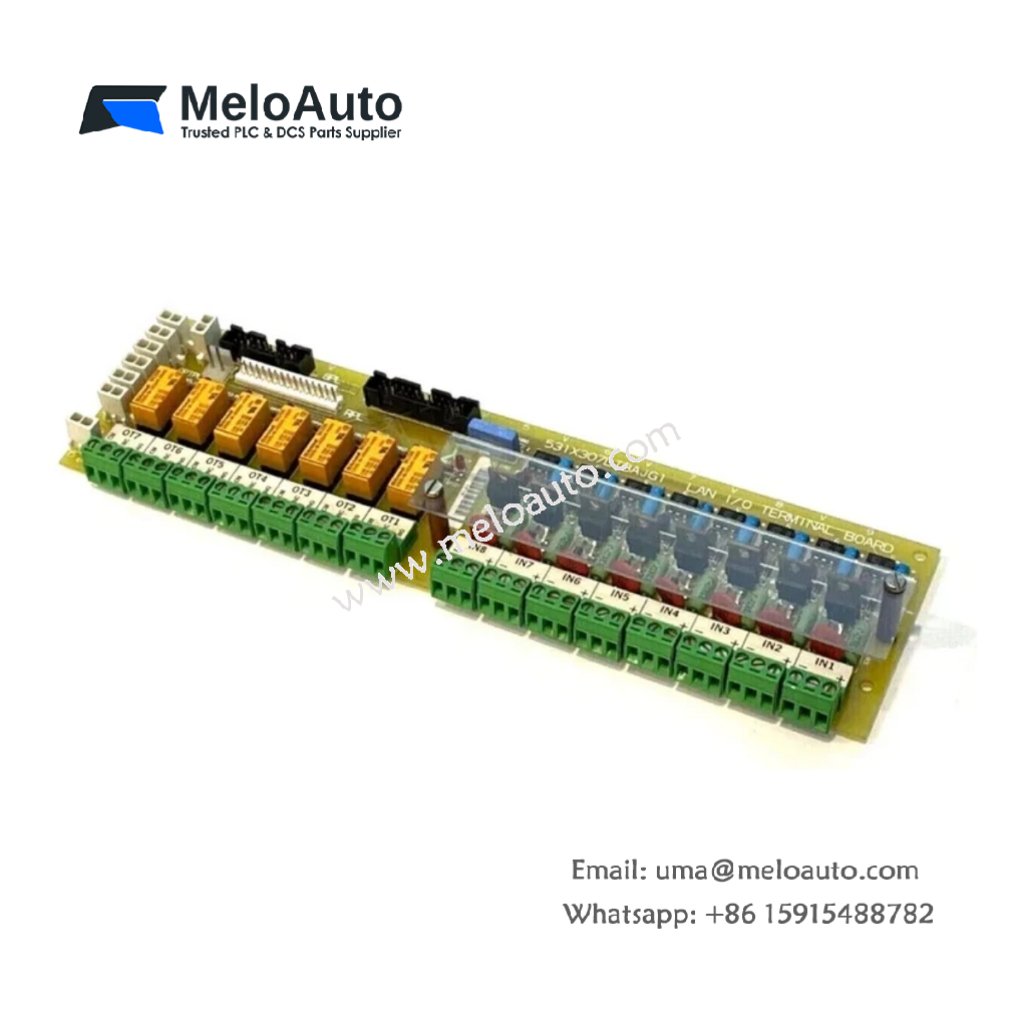

GE 531X307LTBAJG1 LAN I/O Terminal Board DC2000 & EX2000

Overview

The GE 531X307LTBAJG1 LAN I/O Terminal Board is a critical communication interface board designed for DC2000 and EX2000 drive systems. It provides stable data transfer, signal routing, and reliable connection between drive components. The board supports high-speed communication and ensures consistent system performance across demanding industrial environments.

Key Features

Optimized for DC2000 and EX2000 series drives.
Supports LAN communication and multiple I/O connections.
Features durable construction for long-term operation.
Compact design ensures easy installation and replacement.
Provides clear labeling and terminal layout for quick wiring.

Technical Specifications

Specification	Description
Model	531X307LTBAJG1
Manufacturer	General Electric (GE)
Series	DC2000 / EX2000 Drives
Product Type	LAN I/O Terminal Board (LTB)
Communication Interface	Local Area Network (LAN)
Connectors	Multiple terminal input/output points
Power Type	Low voltage signal level
Material	Industrial-grade PCB with reinforced components
Operating Temperature	0°C to +60°C
Mounting Type	Panel mount or drive internal slot
Compatibility	DC2000, EX2000, and related GE drive systems

Dimensions and Weight

Parameter	Value
Dimensions (L × W × H)	150 × 100 × 25 mm
Net Weight	0.63 lbs (0.29 kg)

Origin

Parameter	Value
Country of Origin	United States

Applications

The GE 531X307LTBAJG1 module plays a key role in industrial automation, motor control, and drive communication systems. It ensures smooth data exchange, enhances diagnostic feedback, and improves overall drive reliability. Its rugged design allows stable performance in environments that require precise drive coordination and system monitoring.

Ordering Information

The 531X307LTBAJG1 board is part of GE’s 531X series, known for quality and compatibility with legacy drive platforms. Although discontinued by the manufacturer, it remains available through certified industrial suppliers and offers dependable performance in existing GE drive installations.
