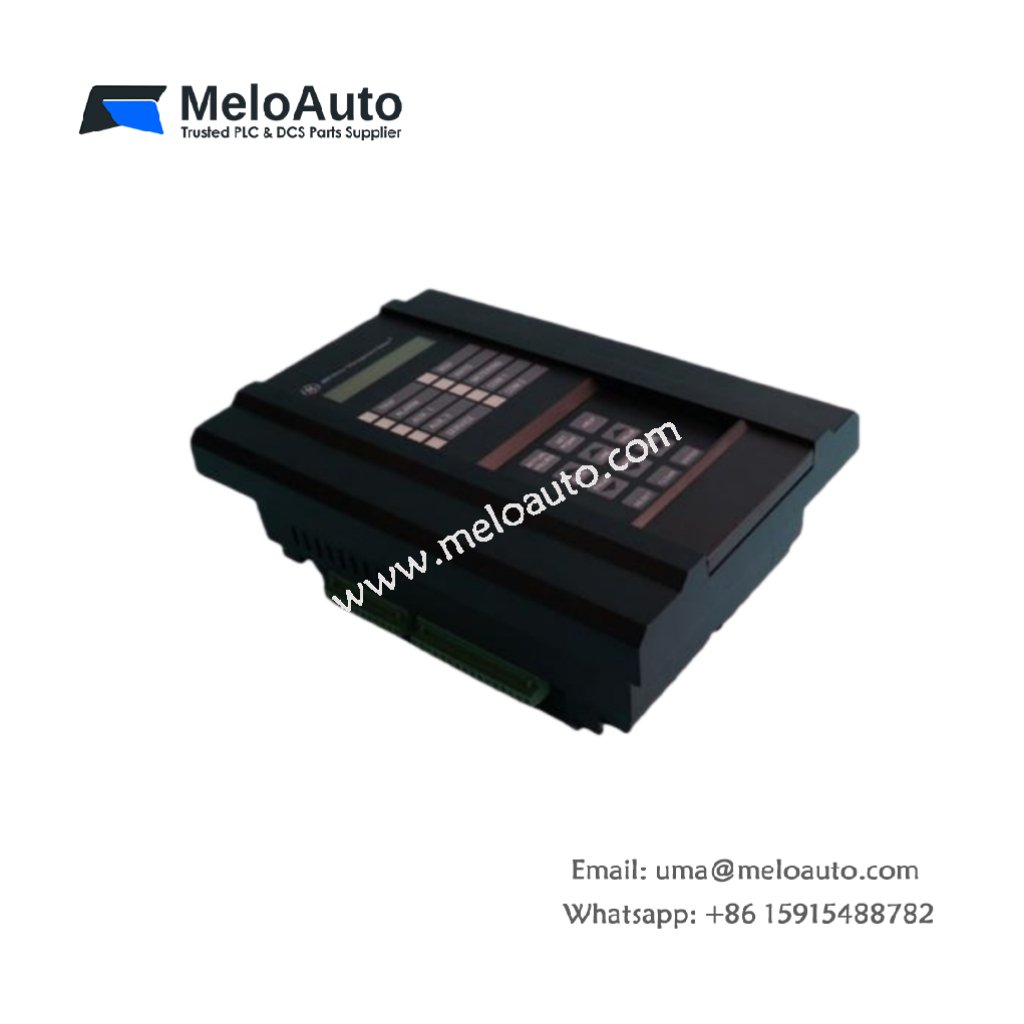

GE 369-HI-R-0-0-0 Motor Management Relay

The GE 369-HI-R-0-0-0 Motor Management Relay is a versatile and reliable solution designed to provide advanced protection and control for motors in industrial applications. This relay ensures the optimal operation of motors by monitoring key parameters and providing protective features against faults, overcurrent, and overheating. With its robust design, the 369-HI-R-0-0-0 is ideal for motors operating in demanding environments.

Key Features

Manufacturer: General Electric (GE)
Product Type: 369 Motor Management Relay
Control Power: 50-300 VDC / 60-265 VAC
RTD Inputs: 12 built-in RTD inputs (optional)
Metering/Backspin Detection: Not included
Fiber Optic Port: Not included
Protocol Interfaces: No optional protocol interfaces
Harsh Environment Option: Not available

Technical Specifications

Parameter	Specification
Control Power	50-300 VDC / 60-265 VAC
RTD Inputs	12 built-in RTD inputs (optional)
Metering and Backspin Detection	Not included
Fiber Optic Port	Not included
Protocol Interfaces	No optional protocol interfaces
Harsh Environment Option	Not available
Dimensions	Compact, suitable for standard mounting
Weight	Lightweight design
Application	Ideal for motor protection and control
Temperature Range	Wide operating range for industrial use

The GE motor management relay operates within a wide control power range of 50-300 VDC and 60-265 VAC. It features built-in 12 RTD inputs, enabling temperature monitoring for the motor. This relay is designed for flexibility, with no additional metering or backspin detection features, offering a streamlined, cost-effective solution for motor protection.

This relay is specifically crafted for industrial applications that do not require optional fiber optic ports, protocol interfaces, or harsh environment options. It integrates seamlessly into a wide range of motor control systems, providing essential protection features and ensuring the longevity and safety of motors.

GE 369-HI-R-0-0-0 Features Overview

Wide control power range: Supports both VDC and VAC for flexible installation.
Built-in RTD inputs: Monitor up to 12 RTD sensors for motor temperature protection.
Compact and lightweight: Ideal for space-constrained installations.
Cost-effective solution: Provides essential motor protection without extra features.

The 369-HI-R-0-0-0 is an essential motor management solution for industrial automation systems. It offers reliable protection and monitoring with easy integration into control panels.
