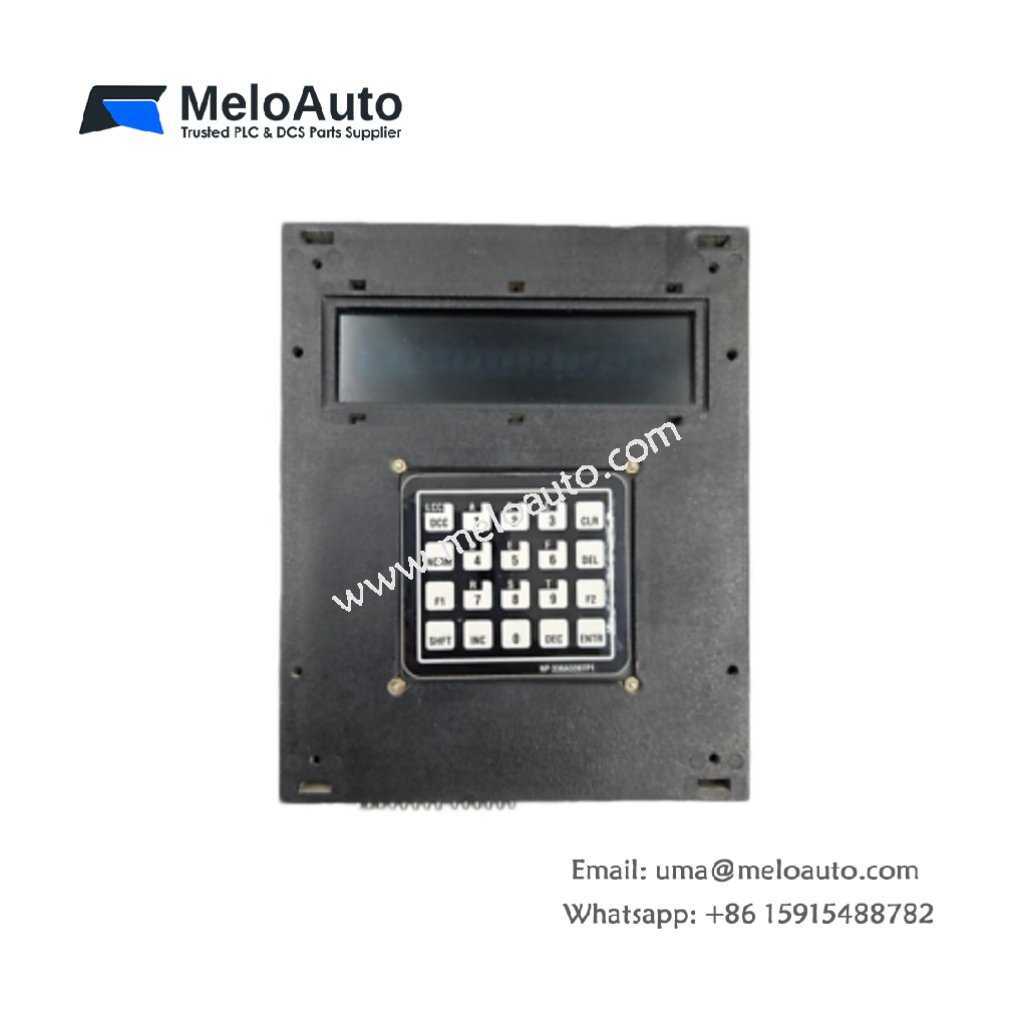

GE 336A3397P1 Display Panel with Keypad

The GE 336A3397P1 serves as a display panel with keypad for turbine control systems. This panel provides operator interface functions for monitoring and commanding turbine operations. You will find this unit in many industrial power generation facilities. General Electric designed this panel for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

Parameter	Specification
Full Model Number	GE 336A3397P1
Category	Display Panel with Keypad for Speedtronic Turbine Control
Dimensions (W x H x D)	Approx. 10.2 x 6.5 x 2.0 inches
Weight	1.25 kg (2.76 lbs)
Number of Components	200+ discrete parts including LCD module and membrane keypad
Energy Storage	150 Joules (total capacitive discharge for memory retention)
Interface Type	1x RS-232 serial port + 1x RS-485 port + 1x 24V DC power input + 40x keypad buttons + 4x status LEDs

This panel integrates over 200 discrete components into a sealed enclosure. Its dimensions measure roughly 10.2 inches wide by 6.5 inches high by 2.0 inches deep. The total weight reaches about 1.25 kilograms including the mounting bracket. One RS-232 serial port connects to the main controller for data exchange. One RS-485 port supports multi-drop communication with remote devices. One 24V DC power input brings operating voltage to the panel. Forty keypad buttons allow operators to enter commands and setpoints. Four status LEDs indicate power, communication, and alarm conditions. The design stores up to 150 joules of capacitive energy for memory retention during power interruptions.

Functional Layout and User Interface Management

The GE 336A3397P1 displays turbine parameters clearly on its LCD screen. Each keypad button provides tactile feedback for confident operator input. Moreover, the panel stores user preferences and alarm history in non-volatile memory. This variant includes upgraded backlighting for better visibility in low light. General Electric specifically designed this display panel for the Speedtronic turbine control system. You can replace an older panel with this unit without changing the mounting holes.

Installation Guidelines and Compatibility

This display panel mounts directly into a standard control room cutout. Always disconnect power before handling the GE 336A3397P1. The panel works with existing GE Speedtronic controllers and communication cables. Verify your controller firmware supports this panel variant. This panel maintains backward compatibility with earlier Speedtronic versions. Proper installation ensures reliable operator interface and system monitoring.
