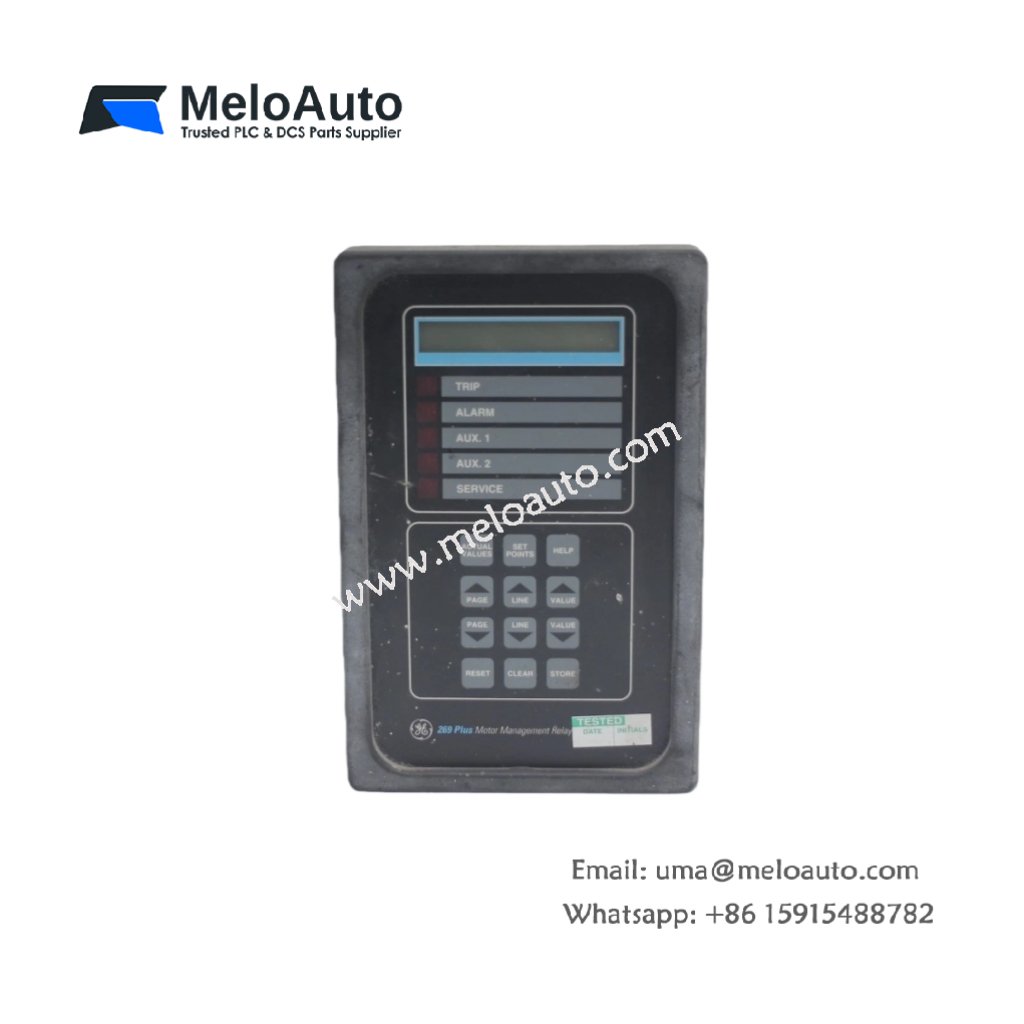

GE 269PLUS-100P-120 Motor Management Relay

The GE 269PLUS-100P-120 is a high-performance Motor Management Relay from the 269 PLUS series. It is designed to ensure efficient motor protection and monitoring, offering reliability and accuracy for your industrial systems.

Key Features of the GE 269PLUS-100P-120

The GE 269PLUS-100P-120 relay delivers 2 amps maximum current capacity. It also integrates a 100-ohm platinum RTD, allowing for precise temperature monitoring. With 4 relay connections, this module supports seamless integration into motor control systems. It operates with a control voltage of 120V AC / 125V DC, making it highly compatible with a variety of motor management applications.

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	269PLUS-100P-120
Product Type	Motor Management Relay
Series	269 PLUS
Maximum Current	2 amps
Temperature Sensor	100-ohm Platinum RTD
Relay Connections	4 relay connections
Control Voltage	120 V AC / 125 V DC
Weight	Approx. 0.5 kg (1.1 lbs)
Protection Features	Overload, Short Circuit, Thermal Protection
Mounting Type	DIN Rail or Panel Mount
Input Voltage	120V AC / 125V DC
Operating Temperature Range	-20°C to 60°C

Product Description

The GE 269PLUS-100P-120 Motor Management Relay ensures reliable motor protection and temperature monitoring. Featuring a 100-ohm platinum RTD, it detects motor temperature fluctuations, thus preventing overheating. Furthermore, the module integrates 4 relay connections for easy integration with various motor control systems.

This relay provides a maximum current rating of 2 amps and supports control voltages of 120V AC / 125V DC. It is suitable for multiple motor management applications, such as overload protection, thermal protection, and short circuit protection. Designed for use in motor control centers and industrial environments, it maintains motor performance and minimizes downtime.

The GE relay features DIN rail or panel mounting, ensuring flexibility and easy installation. Additionally, it operates in a wide temperature range from -20°C to 60°C, making it ideal for use in challenging environments.

Applications

Motor Protection: Safeguards motors against overloads, short circuits, and overheating.
Industrial Automation: Perfect for integration in motor control centers and automation systems.
Precise Temperature Monitoring: Reliable 100-ohm platinum RTD ensures consistent motor temperature management.

Conclusion

The GE 269PLUS-100P-120 Motor Management Relay delivers robust protection for motors in demanding industrial settings. With versatile voltage compatibility, accurate temperature sensing, and easy installation, it is an essential component for motor control systems.
