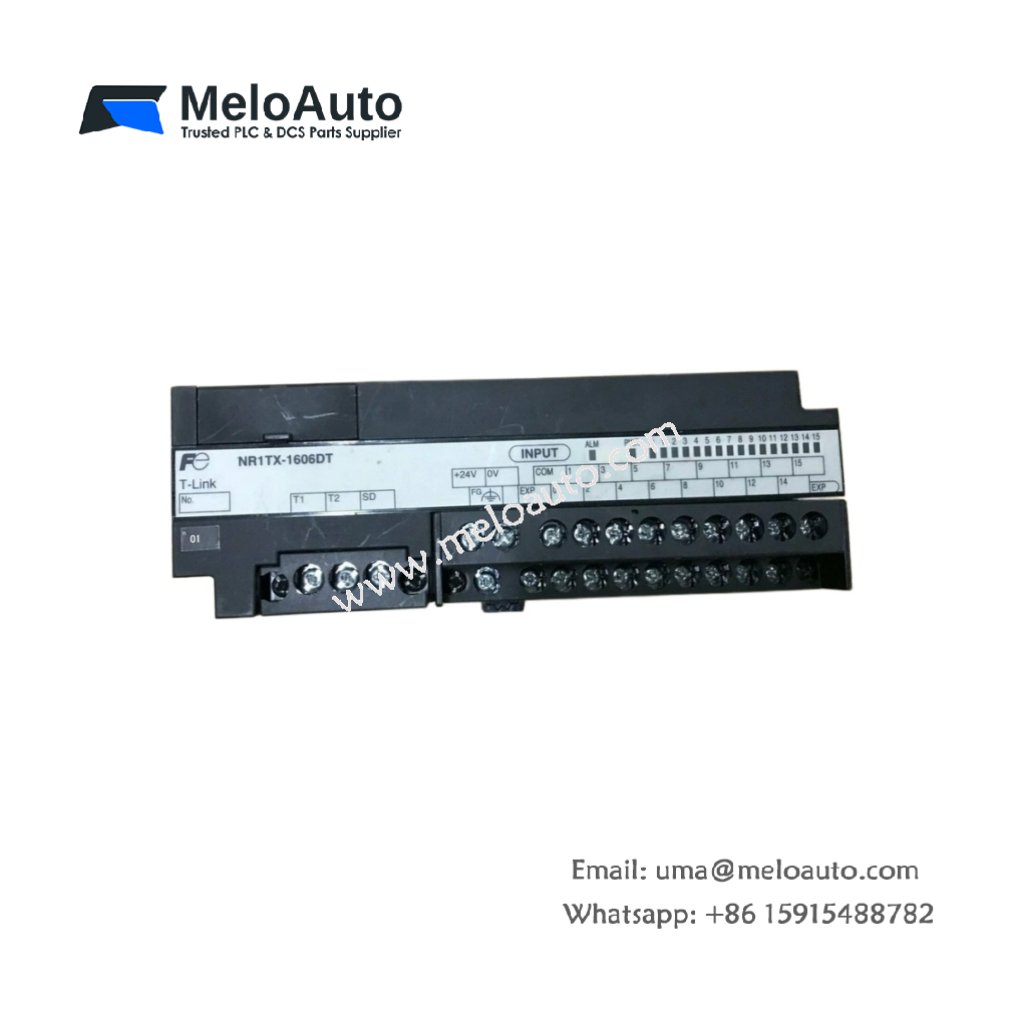

FUJI NR1TX-1606DT PLC Input Module

This PLC input module captures discrete field signals for processor interpretation. The FUJI NR1TX-1606DT accepts multiple digital inputs with robust isolation for industrial applications. Its compact design allows efficient placement within standard control cabinets.

Key Technical Specifications

Reliable Digital Signal Acquisition

The FUJI NR1TX-1606DT provides sixteen input channels for connecting field devices such as sensors and switches. Each channel accepts 24V DC signals with sink or source configuration flexibility. Furthermore, the module features optical isolation between the field side and the system bus. This isolation protects the controller from electrical noise and transient surges common in industrial settings.

The internal circuitry includes filtering to reject short-duration noise pulses. This filtering ensures accurate state detection without false triggering from electrical interference. Additionally, the FUJI NR1TX-1606DT incorporates LED indicators for each input channel. These indicators provide immediate visual confirmation of field device status.

Robust Physical Construction

This input module measures 118 millimeters in height with a compact depth profile. Its weight of approximately 0.35 kilograms allows straightforward handling during installation. The housing utilizes durable materials that resist vibration and temperature variations. Fuji Electric designed this unit for continuous operation in demanding manufacturing environments.

Technicians will appreciate the clearly labeled terminal connections on the front panel. These terminals accept standard gauge wires for secure and reliable field wiring. Furthermore, the module includes a removable connector block for simplified maintenance procedures. Operators can replace the unit without disconnecting individual field wires.

System Integration and Application

The FUJI NR1TX-1606DT integrates seamlessly with Fuji Electric programmable controllers. This module mounts onto standard DIN rails within existing control panels or I/O racks. Its compact footprint leaves valuable space for additional automation components. Industries such as automotive manufacturing, packaging machinery, and material handling frequently deploy this input module for reliable signal acquisition.
